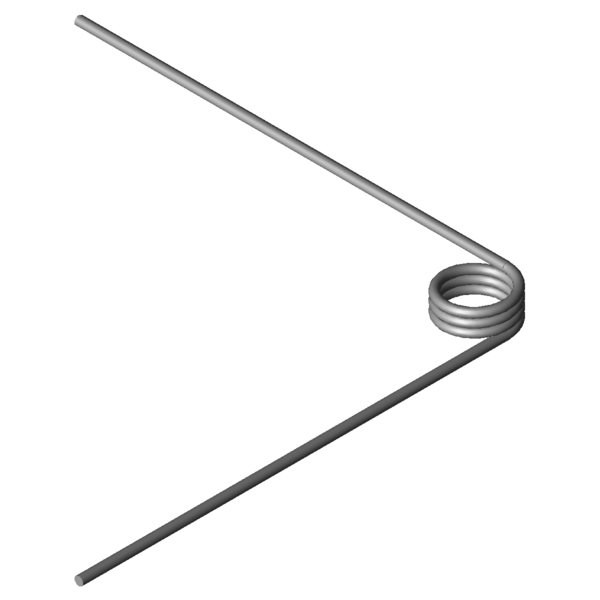

Formula symbolsValueUnitDescription
Material
EN 10270-3-1.4310
-
Type of material
Coiling direction
Right
-
Coiling direction
Leg position
90
degree
Leg position when relaxed
alpha1
-
degree
prestressed rotational angle
F1
-
N
prestressed spring force
M1
-
Nmm
torque by angle alpha1
alpha2
-
degree
loaded rotational angle
F2
-
N
loaded spring force
M2
-
Nmm
torque by angle alpha2
alphah
-
degree
working rotational angle
d
0.4
mm
Wire diameter
Di
2.4
mm
inner coil diameter
Dd
-
mm
diameter of mandrel
LsH
-
mm
leg length of the lever leg
LsR
-
mm
leg length of the recumbent leg
Lk0
1.7
mm
length of spring body
Ls
20
mm
leg length
RH
-
mm
leverage
Mntol
2.13
Nmm
(+/-) Tolerance maximum torque
Mn
7.95
Nmm
maximum torque
alphan
56.03
degree
maximum rotational angle
nt
3.25
pc.
total number of coils
Ddmax
2
mm
maximum possible mandrel diameter
Ddmin
1.5
mm
Min. possible mandrel diameter
Ditol
0.08
mm
(+/-) tolerance of inner coil diameter
Weight
0.0681
g
weight of one spring
Price group
J
-
price group
