Detail page Compression springs: D-011R | Spring steel Ø 0.2 x 1 x 2 mm

Scaled prices (Price group: C)

QuantitySingle price [EUR]
1 4.8100 EUR
2 3.3900 EUR
3 3.2300 EUR
7 1.8100 EUR
17 0.7800 EUR
37 0.4700 EUR
75 0.2700 EUR
125 0.2226 EUR
175 0.1689 EUR
250 0.1503 EUR
350 0.1199 EUR
450 0.1011 EUR

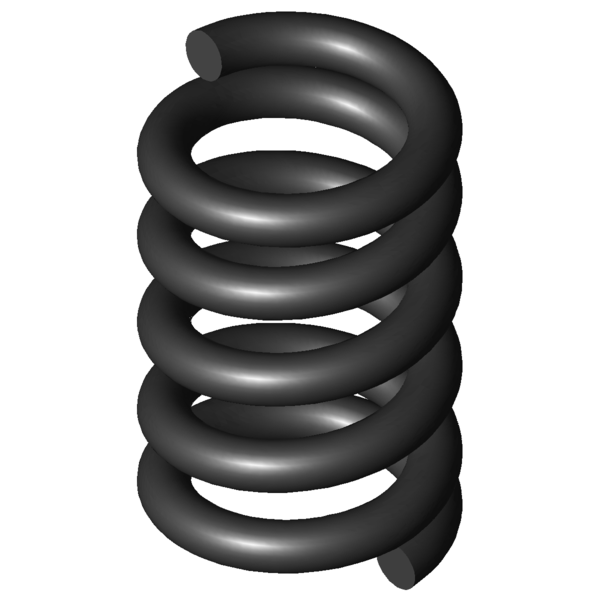

CAD image Compression springs D-011R

Technical Data

Formula symbolsValueUnitDescription
Material EN 10270-1 - Type of material
Spring ends Closed - Spring ends
F1 N prestressed spring force
L1 mm Prestressed spring length
s1 mm Prestressed spring deflection
F2 N Loaded spring force
L2 mm Loaded spring length
s2 mm Loaded spring deflection
d 0.2 mm Wire diameter
Di mm Inner coil diameter
D 1 mm Mean coil diameter
De 1.2 mm Outer coil diameter
Dd 0.6 mm maximum diameter of mandrel
Dh 1.4 mm minimum diameter of bush
L0 2 mm unstressed spring length
Lk mm buckling length
Fn 2.346 N maximum force in static use
Ln 1.5 mm Minimum length in static use
sn 0.5 mm Maximum spring deflection in static use
Fndyn 2.142 N maximum force in dynamic use
Lndyn 1.54 mm Minimum length in dynamic use
shdyn 0.18 mm Maximum stroke in dynamic use
S 0.429 mm pitch of spring
n 3.5 pc. number of active coils
nt pc. total number of coils
R 4.657 N/mm Spring rate
Weight 0.0043 g weight of one spring
Fntol 0.44 N (+/-) tolerance of maximum force in static use
Fndtol 0.44 N (+/-) tolerance of maximum dynamic force
Detol 0.07 mm (+/-) tolerances of outer coil diameter
L0tol 0.09 mm (+/-) tolerance of unstressed spring length
Price group C - price group
F1tol N (+/-) tolerance of prestressed spring force
F2tol N (+/-) tolerance of loaded spring force

Country of origin: DE | Customs tariff number: 73202081

Product image - Compression springs D-011R

Product image - Compression springs D-011R

QR-Code - Compression springs D-011R

QR-Code - Compression springs - D-011R | https://www.federnshop.com/en/products/compression_springs/d-011r.html
