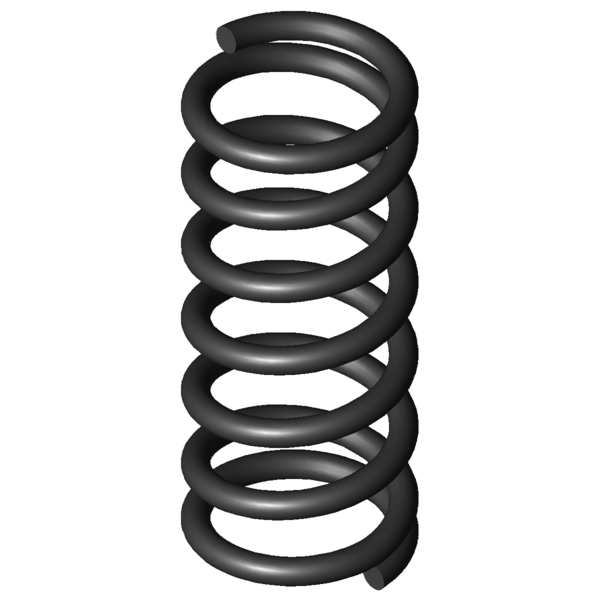

Home » Products » Compression springs » d-026c Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-026C Spring steel Ø 0.25 x 1.75 x 4.9 mm Scaled prices - Compression spring D-026C Quantity Single price [EUR] 1 4.6100 EUR 2 3.2500 EUR 3 3.1000 EUR 7 1.7300 EUR 17 0.6900 EUR 37 0.3600 EUR 75 0.1900 EUR 125 0.1503 EUR 175 0.1189 EUR 250 0.0939 EUR 350 0.0694 EUR 450 0.0630 EUR Compression spring Buy Product image Compression spring D-026C Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-026C Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 0.25 mm Wire diameter Di mm Inner coil diameter D 1.75 mm Mean coil diameter De 2 mm Outer coil diameter Dd 1.2 mm maximum diameter of mandrel Dh 2.4 mm minimum diameter of bush L0 4.9 mm unstressed spring length Lk mm buckling length Fn 3.256 N maximum force in static use Ln 2.49 mm Minimum length in static use sn 2.41 mm Maximum spring deflection in static use Fndyn 3.092 N maximum force in dynamic use Lndyn 2.61 mm Minimum length in dynamic use shdyn 0.64 mm Maximum stroke in dynamic use S 0.777 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 1.35 N/mm Spring rate Weight 0.016 g weight of one spring Fntol 0.31 N (+/-) tolerance of maximum force in static use Fndtol 0.31 N (+/-) tolerance of maximum dynamic force Detol 0.1 mm (+/-) tolerances of outer coil diameter L0tol 0.19 mm (+/-) tolerance of unstressed spring length Price group A - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-026C Spring steel Ø 0.25 x 1.75 x 4.9 mm Datasheet download pdf file Metal spring characteristic Compression spring D-026C Spring steel Ø 0.25 x 1.75 x 4.9 mm Metal spring characteristic download pdf file CAD data Compression spring D-026C Spring steel Ø 0.25 x 1.75 x 4.9 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-026C Spring steel Ø 0.25 x 1.75 x 4.9 mm force-path-calculation Compression spring D-026C Inquiry formular Compression spring D-026C Spring steel Ø 0.25 x 1.75 x 4.9 mm Inquiry formular Compression spring D-026C Similar compression springs to Compression spring D-026C Spring steel Ø 0.25 x 1.75 x 4.9 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-026C EN 10270-1 0.25 2 4.9 3.256 2.49 2.41 5.5 1.35 100.0 | 100.0 | 100.0 | 100.0 VD-026C 1.4310 0.25 2 4.9 2.796 2.49 2.41 5.5 1.16 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-008 2.2 5.5 0.37 EN 10270-1 1.269 2.08 3.43 56.2 | 86.7 | 54.6 | 27.4 D-007A 2.2 4 0.37 EN 10270-1 0.713 2.08 1.93 54.2 | 84.2 | 51.0 | 27.3 D-008A 2.2 5.9 0.37 EN 10270-1 1.417 2.08 3.83 55.1 | 84.7 | 53.2 | 27.4 D-2063 1.36 4.7 0.455 EN 10270-1 1.15 2.17 2.53 58.3 | 76.0 | 65.3 | 33.6 D-011C 2 4.4 0.508 EN 10270-1 1.197 2.04 2.36 64.9 | 89.9 | 67.3 | 37.5 D-007 2.2 3.8 0.582 EN 10270-1 1.295 1.58 2.23 64.0 | 82.8 | 66.2 | 43.0 D-021B 2.5 5 0.699 EN 10270-1 1.815 2.4 2.6 72.9 | 92.7 | 74.2 | 51.7 D-011H 1.8 4.4 0.724 EN 10270-1 1.725 2.02 2.38 72.0 | 86.6 | 75.9 | 53.6 D-017A 2.75 4.9 0.728 EN 10270-1 2.133 1.97 2.93 72.9 | 90.9 | 73.9 | 53.9 D-017 2.75 4.8 0.728 EN 10270-1 2.06 1.97 2.83 72.8 | 90.2 | 74.2 | 53.9 D-023 2.25 5.3 0.904 EN 10270-1 2.515 2.52 2.78 80.9 | 93.8 | 82.0 | 67.0 D-023A 2.25 5.5 0.904 EN 10270-1 2.696 2.52 2.98 80.5 | 92.7 | 81.8 | 67.0 D-011O 1.4 4.6 1.11 EN 10270-1 2.151 2.66 1.94 78.9 | 81.3 | 73.3 | 82.1 D-026J 1.85 6.2 1.143 EN 10270-1 3.266 3.34 2.86 89.0 | 90.5 | 92.0 | 84.5 D-026C 2 4.9 1.35 EN 10270-1 3.256 2.49 2.41 100.0 | 100.0 | 100.0 | 100.0 D-026R-21 2.5 4.5 1.409 EN 10270-1 2.116 3 1.5 81.5 | 85.1 | 63.6 | 95.8 D-022A 2.25 3.7 1.421 EN 10270-1 2.528 1.92 1.78 86.3 | 88.1 | 75.8 | 95.1 D-022 2.25 3.6 1.421 EN 10270-1 2.386 1.92 1.68 84.7 | 87.5 | 71.5 | 95.1 D-026H 1.85 4.3 1.766 EN 10270-1 3.229 2.47 1.83 85.8 | 93.4 | 87.6 | 76.6 D-026B 2 3.2 2.122 EN 10270-1 2.754 1.9 1.3 73.8 | 88.4 | 69.3 | 63.8 D-042C 2.32 5.3 2.428 EN 10270-1 5.198 3.16 2.14 72.3 | 85.6 | 75.7 | 55.6 D-026O 1.45 4.7 2.709 EN 10270-1 3.831 3.29 1.41 70.3 | 89.5 | 71.7 | 49.7 D-042F-03 1.92 6.3 3.068 EN 10270-1 6.4 4.21 2.09 65.6 | 84.0 | 68.8 | 44.1 D-042F-02 1.92 4.4 4.742 EN 10270-1 6.06 3.12 1.28 56.6 | 88.0 | 53.4 | 28.5 D-063D 2.4 5.5 5.927 EN 10270-1 9.469 3.9 1.6 50.5 | 78.3 | 50.4 | 22.8 D-063H-02 1.7 4.2 21.583 EN 10270-1 7.449 3.85 0.35 37.7 | 77.7 | 29.1 | 6.3 Number of similar metal springs: 25 Customs tariff number: 73202081; Compression spring D-026C Country of origin: DE, German; Compression spring D-026C Product image - Compression springs D-026C QR-Code: Compression spring D-026C
