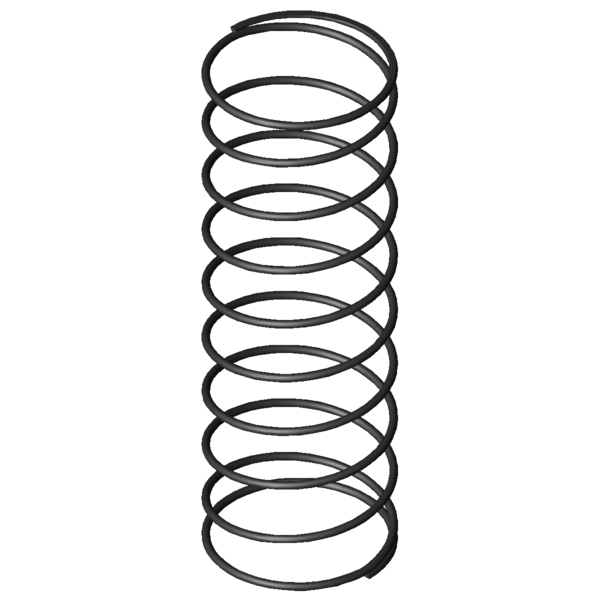

Home » Products » Compression springs » d-063h-12 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-063H-12 Spring steel Ø 0.5 x 11 x 33.8 mm Scaled prices - Compression spring D-063H-12 Quantity Single price [EUR] 1 4.7200 EUR 2 3.3300 EUR 3 3.1700 EUR 7 1.7700 EUR 17 0.7400 EUR 37 0.4200 EUR 75 0.2000 EUR 125 0.1664 EUR 175 0.1253 EUR 250 0.1002 EUR 350 0.0758 EUR 450 0.0694 EUR Compression spring Buy Product image Compression spring D-063H-12 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-063H-12 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 0.5 mm Wire diameter Di mm Inner coil diameter D 11 mm Mean coil diameter De 11.5 mm Outer coil diameter Dd 9.9 mm maximum diameter of mandrel Dh 12.3 mm minimum diameter of bush L0 33.8 mm unstressed spring length Lk mm buckling length Fn 1.409 N maximum force in static use Ln 8.76 mm Minimum length in static use sn 25.04 mm Maximum spring deflection in static use Fndyn 1.31 N maximum force in dynamic use Lndyn 10.52 mm Minimum length in dynamic use shdyn 23.28 mm Maximum stroke in dynamic use S 3.918 mm pitch of spring n 8.5 pc. number of active coils nt pc. total number of coils R 0.056 N/mm Spring rate Weight 0.5632 g weight of one spring Fntol 0.4 N (+/-) tolerance of maximum force in static use Fndtol 0.4 N (+/-) tolerance of maximum dynamic force Detol 0.4 mm (+/-) tolerances of outer coil diameter L0tol 2.1 mm (+/-) tolerance of unstressed spring length Price group B - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-063H-12 Spring steel Ø 0.5 x 11 x 33.8 mm Datasheet download pdf file Metal spring characteristic Compression spring D-063H-12 Spring steel Ø 0.5 x 11 x 33.8 mm Metal spring characteristic download pdf file CAD data Compression spring D-063H-12 Spring steel Ø 0.5 x 11 x 33.8 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-063H-12 Spring steel Ø 0.5 x 11 x 33.8 mm force-path-calculation Compression spring D-063H-12 Inquiry formular Compression spring D-063H-12 Spring steel Ø 0.5 x 11 x 33.8 mm Inquiry formular Compression spring D-063H-12 Similar compression springs to Compression spring D-063H-12 Spring steel Ø 0.5 x 11 x 33.8 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-063H-12 EN 10270-1 0.5 11.5 33.8 1.409 8.76 25.04 8.5 0.056 100.0 | 100.0 | 100.0 | 100.0 VD-063H-12 1.4310 0.5 11.5 33.8 1.21 8.76 25.04 8.5 0.048 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-063H-12 11.5 33.8 0.056 EN 10270-1 1.409 8.76 25.04 100.0 | 100.0 | 100.0 | 100.0 D-090W-02 11.6 40 0.221 EN 10270-1 7.372 6.65 33.35 53.4 | 87.7 | 47.1 | 25.5 D-115E 12 32.7 0.484 EN 10270-1 13.391 5.05 27.65 50.1 | 88.0 | 50.5 | 11.6 D-117O 12 36 0.54 EN 10270-1 15.264 7.73 28.27 47.8 | 84.1 | 48.9 | 10.4 D-119 10.8 30 0.759 EN 10270-1 17.092 7.47 22.53 46.1 | 81.7 | 49.1 | 7.4 D-142D-01 12.3 35 0.82 EN 10270-1 21.79 8.44 26.56 46.4 | 81.9 | 50.4 | 6.9 D-150C 12.5 32 1.218 EN 10270-1 27.84 9.14 22.86 43.9 | 78.9 | 48.2 | 4.6 D-152B 11 36 1.358 EN 10270-1 33.449 11.38 24.63 45.1 | 79.8 | 51.3 | 4.1 D-152A 11 31.6 1.852 EN 10270-1 42.093 8.88 22.73 43.3 | 79.7 | 47.1 | 3.0 D-179L 12 34 2.094 EN 10270-1 50.79 9.75 24.25 44.2 | 80.2 | 49.8 | 2.7 D-180O 13 34.4 2.338 EN 10270-1 55.596 10.62 23.78 42.4 | 76.1 | 48.8 | 2.4 D-180Q-02 11 30.2 4.081 EN 10270-1 75.292 11.75 18.45 38.2 | 75.6 | 37.8 | 1.4 D-192 11.25 29.5 4.522 EN 10270-1 82.755 11.2 18.3 37.9 | 75.0 | 37.4 | 1.2 D-207AB 11 36 4.656 EN 10270-1 82.1 18.37 17.63 37.5 | 75.1 | 36.1 | 1.2 D-195A-20 9.5 34 5.211 EN 10270-1 99.627 14.88 19.12 38.0 | 74.0 | 38.9 | 1.1 D-222B 12.7 35 5.743 EN 10270-1 91.078 19.14 15.86 35.4 | 72.8 | 32.4 | 1.0 Number of similar metal springs: 15 Customs tariff number: 73202081; Compression spring D-063H-12 Country of origin: DE, German; Compression spring D-063H-12 Product image - Compression springs D-063H-12 QR-Code: Compression spring D-063H-12
