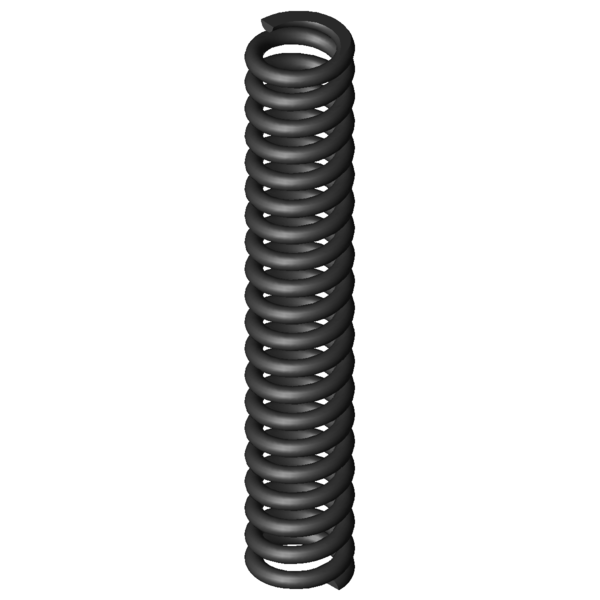

Home » Products » Compression springs » d-090 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-090 Spring steel Ø 0.5 x 2.5 x 17.5 mm Scaled prices - Compression spring D-090 Quantity Single price [EUR] 1 4.7200 EUR 2 3.3300 EUR 3 3.1700 EUR 7 1.7700 EUR 17 0.7400 EUR 37 0.4200 EUR 75 0.2000 EUR 125 0.1664 EUR 175 0.1253 EUR 250 0.1002 EUR 350 0.0758 EUR 450 0.0694 EUR Compression spring Buy Product image Compression spring D-090 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-090 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 0.5 mm Wire diameter Di mm Inner coil diameter D 2.5 mm Mean coil diameter De 3 mm Outer coil diameter Dd 1.7 mm maximum diameter of mandrel Dh 3.3 mm minimum diameter of bush L0 17.5 mm unstressed spring length Lk 12.8 mm buckling length Fn 13.168 N maximum force in static use Ln 11.52 mm Minimum length in static use sn 5.98 mm Maximum spring deflection in static use Fndyn 11.762 N maximum force in dynamic use Lndyn 12.16 mm Minimum length in dynamic use shdyn 2.69 mm Maximum stroke in dynamic use S 0.919 mm pitch of spring n 18.5 pc. number of active coils nt pc. total number of coils R 2.203 N/mm Spring rate Weight 0.2499 g weight of one spring Fntol 1.56 N (+/-) tolerance of maximum force in static use Fndtol 1.54 N (+/-) tolerance of maximum dynamic force Detol 0.1 mm (+/-) tolerances of outer coil diameter L0tol 0.62 mm (+/-) tolerance of unstressed spring length Price group B - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-090 Spring steel Ø 0.5 x 2.5 x 17.5 mm Datasheet download pdf file Metal spring characteristic Compression spring D-090 Spring steel Ø 0.5 x 2.5 x 17.5 mm Metal spring characteristic download pdf file CAD data Compression spring D-090 Spring steel Ø 0.5 x 2.5 x 17.5 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-090 Spring steel Ø 0.5 x 2.5 x 17.5 mm force-path-calculation Compression spring D-090 Inquiry formular Compression spring D-090 Spring steel Ø 0.5 x 2.5 x 17.5 mm Inquiry formular Compression spring D-090 Similar compression springs to Compression spring D-090 Spring steel Ø 0.5 x 2.5 x 17.5 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-090 EN 10270-1 0.5 3 17.5 13.168 11.52 5.98 18.5 2.203 100.0 | 100.0 | 100.0 | 100.0 VD-090 1.4310 0.5 3 17.5 11.31 11.52 5.98 18.5 1.892 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-085A 3.7 23.5 0.864 EN 10270-1 8.147 14.07 9.43 62.4 | 85.2 | 62.6 | 39.2 D-084A 3.7 16 1.05 EN 10270-1 4.471 11.74 4.26 63.7 | 90.8 | 52.6 | 47.7 D-085 3.7 23.5 1.05 EN 10270-1 12.348 11.74 11.76 68.4 | 85.2 | 72.3 | 47.7 D-080B-04 4 22 1.188 EN 10270-1 16.235 8.33 13.67 67.1 | 84.8 | 62.4 | 53.9 D-080H 3.8 18 1.312 EN 10270-1 11.988 8.87 9.13 76.7 | 92.1 | 78.3 | 59.6 D-085E 3.5 20.7 1.521 EN 10270-1 16.365 9.94 10.76 75.7 | 90.1 | 68.0 | 69.1 D-084 3.7 16 1.554 EN 10270-1 12.033 8.26 7.74 81.9 | 90.8 | 84.3 | 70.6 D-080B-02 4 15 1.747 EN 10270-1 15.746 5.99 9.01 80.4 | 86.9 | 75.0 | 79.4 D-085H 3.2 24 1.848 EN 10270-1 22.552 11.8 12.2 75.5 | 88.9 | 53.7 | 83.9 D-080G 3.8 12 2.084 EN 10270-1 12.605 5.95 6.05 91.5 | 82.5 | 97.3 | 94.6 D-090 3 17.5 2.203 EN 10270-1 13.168 11.52 5.98 100.0 | 100.0 | 100.0 | 100.0 D-085G 3.2 20 2.231 EN 10270-1 22.555 9.89 10.11 83.7 | 93.8 | 58.8 | 98.7 D-083 3.7 11.5 2.286 EN 10270-1 12.719 5.94 5.56 91.1 | 82.3 | 94.8 | 96.3 D-090Q 3.5 20.2 2.343 EN 10270-1 21.915 10.85 9.35 81.2 | 87.8 | 62.0 | 93.9 D-085D 3.5 13.4 2.482 EN 10270-1 17.174 6.48 6.92 85.9 | 87.4 | 81.5 | 88.7 D-115 3.83 22.5 2.647 EN 10270-1 21.095 14.53 7.97 76.8 | 78.5 | 68.7 | 83.2 D-085F 3.2 17 2.813 EN 10270-1 22.56 8.98 8.02 80.6 | 97.0 | 66.5 | 78.3 D-110E 4 18 3.106 EN 10270-1 21.803 10.98 7.02 75.9 | 83.9 | 72.8 | 70.9 D-089 3 12 3.26 EN 10270-1 12.683 8.11 3.89 79.2 | 89.5 | 80.7 | 67.5 D-090P 3.5 13.1 3.822 EN 10270-1 23.037 7.07 6.03 73.2 | 83.8 | 78.2 | 57.6 D-090AE 2.8 13 3.876 EN 10270-1 16.904 8.64 4.36 73.8 | 89.2 | 75.4 | 56.8 D-114 3.83 15.5 3.918 EN 10270-1 20.659 10.23 5.27 71.4 | 82.1 | 75.9 | 56.2 D-088 3 8.7 4.794 EN 10270-1 13.738 5.83 2.87 67.1 | 83.2 | 71.9 | 46.0 D-090D 2.5 13.7 5.135 EN 10270-1 20.483 9.71 3.99 65.2 | 87.2 | 65.5 | 42.9 D-090U 2.8 15.3 5.28 EN 10270-1 24.333 10.69 4.61 66.0 | 90.6 | 65.6 | 41.7 D-117H 3.5 19 7.189 EN 10270-1 38.852 13.6 5.4 58.6 | 83.1 | 62.1 | 30.6 Number of similar metal springs: 25 Customs tariff number: 73202081; Compression spring D-090 Country of origin: DE, German; Compression spring D-090 Product image - Compression springs D-090 QR-Code: Compression spring D-090
