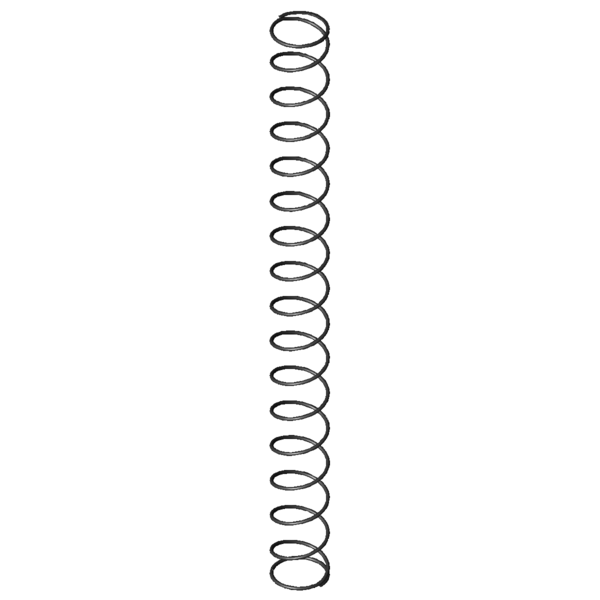

Home » Products » Compression springs » d-090aa Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-090AA Spring steel Ø 0.63 x 9.87 x 117 mm Scaled prices - Compression spring D-090AA Quantity Single price [EUR] 1 4.8500 EUR 2 3.4200 EUR 3 3.2600 EUR 7 1.8400 EUR 17 0.8300 EUR 37 0.5200 EUR 75 0.3400 EUR 125 0.2817 EUR 175 0.2192 EUR 250 0.1878 EUR 350 0.1452 EUR 450 0.1264 EUR Compression spring Buy Product image Compression spring D-090AA Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-090AA Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 0.63 mm Wire diameter Di mm Inner coil diameter D 9.87 mm Mean coil diameter De 10.5 mm Outer coil diameter Dd 8.7 mm maximum diameter of mandrel Dh 11.6 mm minimum diameter of bush L0 117 mm unstressed spring length Lk 107.3 mm buckling length Fn 10.919 N maximum force in static use Ln 15.6 mm Minimum length in static use sn 101.4 mm Maximum spring deflection in static use Fndyn 10.068 N maximum force in dynamic use Lndyn 23.5 mm Minimum length in dynamic use shdyn 21.03 mm Maximum stroke in dynamic use S 7.508 mm pitch of spring n 15.5 pc. number of active coils nt pc. total number of coils R 0.108 N/mm Spring rate Weight 1.3371 g weight of one spring Fntol 0.72 N (+/-) tolerance of maximum force in static use Fndtol 0.72 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 5.18 mm (+/-) tolerance of unstressed spring length Price group D - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-090AA Spring steel Ø 0.63 x 9.87 x 117 mm Datasheet download pdf file Metal spring characteristic Compression spring D-090AA Spring steel Ø 0.63 x 9.87 x 117 mm Metal spring characteristic download pdf file CAD data Compression spring D-090AA Spring steel Ø 0.63 x 9.87 x 117 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-090AA Spring steel Ø 0.63 x 9.87 x 117 mm force-path-calculation Compression spring D-090AA Inquiry formular Compression spring D-090AA Spring steel Ø 0.63 x 9.87 x 117 mm Inquiry formular Compression spring D-090AA Similar compression springs to Compression spring D-090AA Spring steel Ø 0.63 x 9.87 x 117 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-090AA EN 10270-1 0.63 10.5 117 10.919 15.6 101.4 15.5 0.108 100.0 | 100.0 | 100.0 | 100.0 VD-090AA 1.4310 0.63 10.5 117 9.379 15.6 101.4 15.5 0.092 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-063M 8.5 97.6 0.08 EN 10270-1 6.828 12.5 85.1 76.3 | 81.2 | 73.2 | 74.5 D-090W-04 11.6 98 0.097 EN 10270-1 8.217 13.5 84.5 87.0 | 91.4 | 79.3 | 90.3 D-090H 9 99.2 0.1 EN 10270-1 8.543 13.5 85.7 86.6 | 85.9 | 81.4 | 92.6 D-090AA 10.5 117 0.108 EN 10270-1 10.919 15.6 101.4 100.0 | 100.0 | 100.0 | 100.0 D-115H 12 136 0.109 EN 10270-1 12.952 17.58 118.42 90.4 | 87.8 | 85.0 | 98.5 D-090Z 10.5 72.4 0.176 EN 10270-1 10.955 10.05 62.35 76.4 | 87.3 | 80.6 | 61.3 D-115G 12 84.6 0.178 EN 10270-1 13.077 11.31 73.29 73.8 | 83.3 | 77.9 | 60.4 D-122A 10.8 96.5 0.185 EN 10270-1 13.145 25.62 70.88 73.6 | 86.2 | 76.5 | 58.1 D-122 10.8 96.5 0.226 EN 10270-1 16.951 21.35 75.15 67.7 | 86.2 | 69.3 | 47.7 D-150A 13.5 115 0.232 EN 10270-1 19.236 32.02 82.98 65.1 | 79.7 | 69.3 | 46.5 D-150 13.5 115 0.282 EN 10270-1 24.9 26.69 88.31 61.1 | 79.7 | 65.5 | 38.2 D-122A-14 10 92.5 0.29 EN 10270-1 20.764 20.82 71.68 61.1 | 84.3 | 61.6 | 37.2 D-155A 11 81.5 0.453 EN 10270-1 23.261 30.13 51.38 49.5 | 76.0 | 48.8 | 23.8 D-155A-10 11 114 0.497 EN 10270-1 42.924 27.63 86.38 54.1 | 85.3 | 55.3 | 21.7 D-155 11 81.5 0.551 EN 10270-1 31.044 25.13 56.38 47.0 | 76.0 | 45.4 | 19.6 D-190A 13.75 130 0.566 EN 10270-1 52.264 37.66 92.34 49.1 | 72.3 | 56.0 | 19.0 D-143D 10 76.3 0.572 EN 10270-1 32.627 19.28 57.02 46.8 | 76.8 | 44.8 | 18.8 D-166P 8 135 0.683 EN 10270-1 55.956 53.05 81.95 47.1 | 75.3 | 50.2 | 15.8 D-190 13.75 130 0.688 EN 10270-1 66.425 33.5 96.5 47.9 | 72.3 | 55.8 | 15.6 Number of similar metal springs: 18 Customs tariff number: 73202081; Compression spring D-090AA Country of origin: DE, German; Compression spring D-090AA Product image - Compression springs D-090AA QR-Code: Compression spring D-090AA
