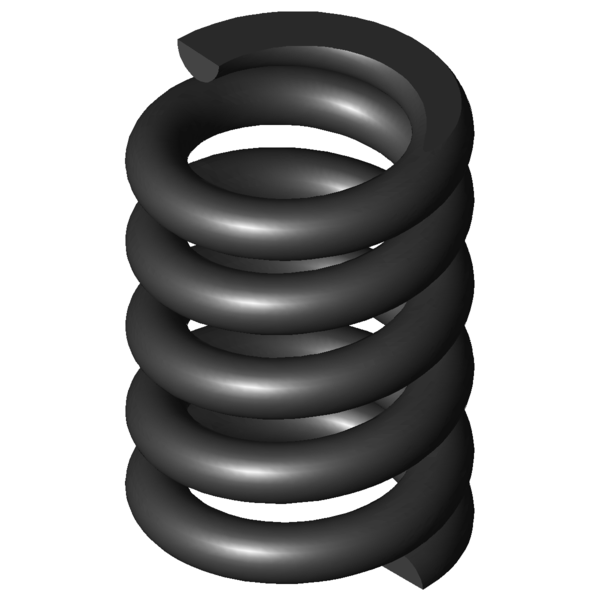

Home » Products » Compression springs » d-090ab Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-090AB Spring steel Ø 0.5 x 2.3 x 4 mm Scaled prices - Compression spring D-090AB Quantity Single price [EUR] 1 4.7200 EUR 2 3.3300 EUR 3 3.1700 EUR 7 1.7700 EUR 17 0.7400 EUR 37 0.4200 EUR 75 0.2000 EUR 125 0.1664 EUR 175 0.1253 EUR 250 0.1002 EUR 350 0.0758 EUR 450 0.0694 EUR Compression spring Buy Product image Compression spring D-090AB Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-090AB Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 0.5 mm Wire diameter Di mm Inner coil diameter D 2.3 mm Mean coil diameter De 2.8 mm Outer coil diameter Dd 1.5 mm maximum diameter of mandrel Dh 3.1 mm minimum diameter of bush L0 4 mm unstressed spring length Lk mm buckling length Fn 15.243 N maximum force in static use Ln 2.98 mm Minimum length in static use sn 1.02 mm Maximum spring deflection in static use Fndyn 13.457 N maximum force in dynamic use Lndyn 3.1 mm Minimum length in dynamic use shdyn 0.4 mm Maximum stroke in dynamic use S 1 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 14.952 N/mm Spring rate Weight 0.0617 g weight of one spring Fntol 2.49 N (+/-) tolerance of maximum force in static use Fndtol 2.47 N (+/-) tolerance of maximum dynamic force Detol 0.1 mm (+/-) tolerances of outer coil diameter L0tol 0.15 mm (+/-) tolerance of unstressed spring length Price group B - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-090AB Spring steel Ø 0.5 x 2.3 x 4 mm Datasheet download pdf file Metal spring characteristic Compression spring D-090AB Spring steel Ø 0.5 x 2.3 x 4 mm Metal spring characteristic download pdf file CAD data Compression spring D-090AB Spring steel Ø 0.5 x 2.3 x 4 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-090AB Spring steel Ø 0.5 x 2.3 x 4 mm force-path-calculation Compression spring D-090AB Inquiry formular Compression spring D-090AB Spring steel Ø 0.5 x 2.3 x 4 mm Inquiry formular Compression spring D-090AB Similar compression springs to Compression spring D-090AB Spring steel Ø 0.5 x 2.3 x 4 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-090AB EN 10270-1 0.5 2.8 4 15.243 2.98 1.02 3.5 14.952 100.0 | 100.0 | 100.0 | 100.0 VD-090AB 1.4310 0.5 2.8 4 13.092 2.98 1.02 3.5 12.842 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-090AD 2.8 8 6.157 EN 10270-1 13.484 5.81 2.19 64.0 | 83.3 | 67.5 | 41.2 D-090O 3.5 8.4 6.602 EN 10270-1 25.365 4.56 3.84 53.5 | 72.8 | 43.3 | 44.2 D-085B 3.5 6 6.738 EN 10270-1 20.082 3.02 2.98 60.8 | 82.2 | 55.1 | 45.1 D-106 4.63 6.7 7.164 EN 10270-1 20.642 3.82 2.88 56.4 | 66.5 | 54.6 | 48.0 D-087 3 6.1 7.409 EN 10270-1 14.61 4.13 1.97 69.9 | 86.3 | 73.8 | 49.6 D-090C 2.5 8.7 8.378 EN 10270-1 19.78 6.34 2.36 64.9 | 78.4 | 60.1 | 56.1 D-112 3.83 7.8 8.905 EN 10270-1 23.102 5.21 2.59 60.1 | 67.9 | 52.7 | 59.7 D-090AC 2.8 5.5 9.515 EN 10270-1 13.204 4.11 1.39 78.2 | 90.9 | 80.0 | 63.6 D-090N 3.5 6 10.375 EN 10270-1 27.286 3.37 2.63 65.3 | 79.2 | 47.3 | 69.4 D-086 3 4.4 11.643 EN 10270-1 16.409 2.99 1.41 85.1 | 94.7 | 82.6 | 77.9 D-110B 4 5.5 11.98 EN 10270-1 20.605 3.78 1.72 73.6 | 74.0 | 66.6 | 80.2 D-111 3.83 5.5 13.993 EN 10270-1 24.196 3.77 1.73 76.5 | 75.1 | 61.0 | 93.6 D-090B 2.5 5.5 14.471 EN 10270-1 20.389 4.09 1.41 85.9 | 87.3 | 73.6 | 96.8 D-090S 2.8 6.1 14.88 EN 10270-1 23.757 4.5 1.6 82.9 | 85.5 | 64.0 | 99.4 D-090AB 2.8 4 14.952 EN 10270-1 15.243 2.98 1.02 100.0 | 100.0 | 100.0 | 100.0 D-117F 3.5 7.6 20.259 EN 10270-1 37.937 5.73 1.87 63.0 | 68.0 | 47.4 | 73.7 D-115B 3 6.6 21.919 EN 10270-1 31.891 5.15 1.45 68.3 | 77.8 | 59.1 | 67.9 D-090A 2.5 3.8 22.74 EN 10270-1 18.942 2.97 0.83 80.4 | 94.8 | 80.9 | 65.5 D-090R 2.8 4.3 23.383 EN 10270-1 24.182 3.27 1.03 79.8 | 94.6 | 81.0 | 63.7 D-142AA 4.4 6 25.554 EN 10270-1 31.557 4.77 1.23 62.7 | 64.3 | 65.6 | 58.2 D-117E 3.5 5.3 31.836 EN 10270-1 36.49 4.15 1.15 62.7 | 75.6 | 65.2 | 47.1 D-115A 3 4.7 34.444 EN 10270-1 33.331 3.73 0.97 66.6 | 85.9 | 70.4 | 43.5 D-145A 4.5 6.8 40.932 EN 10270-1 59.736 5.34 1.46 47.7 | 58.9 | 47.7 | 36.5 Number of similar metal springs: 22 Customs tariff number: 73202081; Compression spring D-090AB Country of origin: DE, German; Compression spring D-090AB Product image - Compression springs D-090AB QR-Code: Compression spring D-090AB
