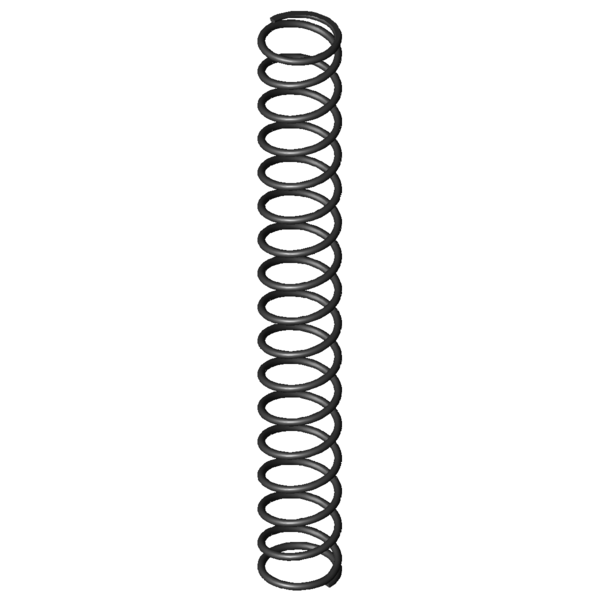

Home » Products » Compression springs » d-090m Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-090M Spring steel Ø 0.55 x 5.45 x 46.5 mm Scaled prices - Compression spring D-090M Quantity Single price [EUR] 1 4.8100 EUR 2 3.3900 EUR 3 3.2300 EUR 7 1.8100 EUR 17 0.7800 EUR 37 0.4700 EUR 75 0.2700 EUR 125 0.2226 EUR 175 0.1689 EUR 250 0.1503 EUR 350 0.1199 EUR 450 0.1011 EUR Compression spring Buy Product image Compression spring D-090M Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-090M Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 0.55 mm Wire diameter Di mm Inner coil diameter D 5.45 mm Mean coil diameter De 6 mm Outer coil diameter Dd 4.5 mm maximum diameter of mandrel Dh 6.6 mm minimum diameter of bush L0 46.5 mm unstressed spring length Lk 38.66 mm buckling length Fn 12.917 N maximum force in static use Ln 11.73 mm Minimum length in static use sn 34.77 mm Maximum spring deflection in static use Fndyn 11.555 N maximum force in dynamic use Lndyn 15.4 mm Minimum length in dynamic use shdyn 7.96 mm Maximum stroke in dynamic use S 2.965 mm pitch of spring n 15.5 pc. number of active coils nt pc. total number of coils R 0.372 N/mm Spring rate Weight 0.5627 g weight of one spring Fntol 0.72 N (+/-) tolerance of maximum force in static use Fndtol 0.72 N (+/-) tolerance of maximum dynamic force Detol 0.25 mm (+/-) tolerances of outer coil diameter L0tol 1.43 mm (+/-) tolerance of unstressed spring length Price group C - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-090M Spring steel Ø 0.55 x 5.45 x 46.5 mm Datasheet download pdf file Metal spring characteristic Compression spring D-090M Spring steel Ø 0.55 x 5.45 x 46.5 mm Metal spring characteristic download pdf file CAD data Compression spring D-090M Spring steel Ø 0.55 x 5.45 x 46.5 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-090M Spring steel Ø 0.55 x 5.45 x 46.5 mm force-path-calculation Compression spring D-090M Inquiry formular Compression spring D-090M Spring steel Ø 0.55 x 5.45 x 46.5 mm Inquiry formular Compression spring D-090M Similar compression springs to Compression spring D-090M Spring steel Ø 0.55 x 5.45 x 46.5 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-090M EN 10270-1 0.55 6 46.5 12.917 11.73 34.77 15.5 0.372 100.0 | 100.0 | 100.0 | 100.0 VD-090M 1.4310 0.55 6 46.5 11.094 11.73 34.77 15.5 0.319 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-067A 6.8 44 0.138 EN 10270-1 4.215 13.38 30.62 62.9 | 91.3 | 60.3 | 37.1 D-068A-05 6.5 51.8 0.159 EN 10270-1 6.155 13.17 38.63 67.6 | 91.0 | 68.8 | 42.9 D-067 6.8 44 0.204 EN 10270-1 7.056 9.36 34.64 74.4 | 91.3 | 77.1 | 54.8 D-074A 5.5 44.5 0.226 EN 10270-1 6.664 15.06 29.44 73.9 | 92.8 | 68.1 | 60.9 D-074 5.5 44.5 0.275 EN 10270-1 8.794 12.56 31.94 82.3 | 92.8 | 80.0 | 74.1 D-100B 6.03 45 0.314 EN 10270-1 5.946 26.04 18.96 76.4 | 94.5 | 50.3 | 84.4 D-100 6.93 54 0.347 EN 10270-1 13.243 15.83 38.17 91.5 | 86.7 | 94.3 | 93.4 D-068A-16 6 33 0.364 EN 10270-1 9.211 7.73 25.27 85.8 | 87.3 | 72.0 | 98.1 D-090M 6 46.5 0.372 EN 10270-1 12.917 11.73 34.77 100.0 | 100.0 | 100.0 | 100.0 D-100A-03 6.4 51 0.539 EN 10270-1 20.357 13.23 37.77 79.1 | 90.7 | 77.8 | 68.9 D-105A 5.63 38.5 0.571 EN 10270-1 11.588 18.19 20.31 75.7 | 88.0 | 74.1 | 65.1 D-117 5.7 48 0.612 EN 10270-1 12.38 27.75 20.25 76.0 | 90.1 | 77.0 | 60.8 D-100A-02 6.4 41 0.619 EN 10270-1 18.14 11.69 29.31 75.8 | 89.7 | 77.8 | 60.0 D-105 5.63 38.5 0.694 EN 10270-1 16.182 15.18 23.32 71.7 | 88.0 | 73.4 | 53.5 D-132A 7.1 48 0.742 EN 10270-1 18.487 23.07 24.93 68.1 | 83.4 | 70.8 | 50.1 D-132 7.1 48 0.902 EN 10270-1 25.928 19.26 28.74 63.6 | 83.4 | 66.2 | 41.2 D-132D 6.4 43 1.284 EN 10270-1 30.866 18.97 24.03 56.5 | 85.0 | 55.5 | 28.9 D-137A 5.8 36 1.484 EN 10270-1 20.097 22.45 13.55 52.5 | 80.9 | 51.6 | 25.0 D-132C 6.4 36 1.533 EN 10270-1 30.427 16.15 19.85 51.3 | 80.0 | 49.8 | 24.2 D-137 5.8 36 1.804 EN 10270-1 31.132 18.75 17.25 49.0 | 80.9 | 45.6 | 20.6 D-171A 7.3 43.5 1.811 EN 10270-1 27.905 28.09 15.41 47.6 | 76.9 | 45.3 | 20.5 D-171 7.3 43.5 2.202 EN 10270-1 44.153 23.45 20.05 45.7 | 76.9 | 43.5 | 16.9 D-144D 6.3 35.1 2.739 EN 10270-1 47.108 17.9 17.2 43.1 | 77.3 | 38.4 | 13.6 D-173CJ 6.7 50.6 2.974 EN 10270-1 76.717 24.8 25.8 45.6 | 78.8 | 45.5 | 12.5 Number of similar metal springs: 23 Customs tariff number: 73202081; Compression spring D-090M Country of origin: DE, German; Compression spring D-090M Product image - Compression springs D-090M QR-Code: Compression spring D-090M
