Compression spring D-090W Spring steel Ø 0.6 x 5 x 18 mm

Scaled prices - Compression spring D-090W

Quantity	Single price [EUR]
1	4.7200 EUR
2	3.3300 EUR
3	3.1700 EUR
7	1.7700 EUR
17	0.7400 EUR
37	0.4200 EUR
75	0.2000 EUR
125	0.1664 EUR
175	0.1253 EUR
250	0.1002 EUR
350	0.0758 EUR
450	0.0694 EUR

Compression spring Buy

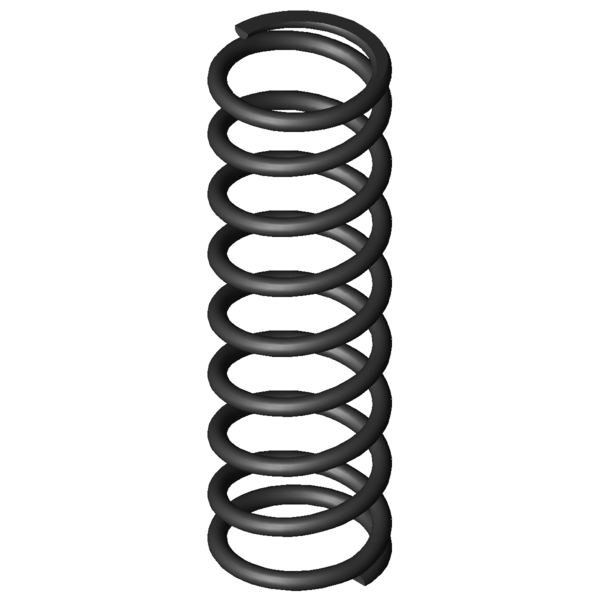

Product image Compression spring D-090W

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring D-090W

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	0.6	mm	Wire diameter
Di		mm	Inner coil diameter
D	5	mm	Mean coil diameter
De	5.6	mm	Outer coil diameter
Dd	4	mm	maximum diameter of mandrel
Dh	6.1	mm	minimum diameter of bush
L0	18	mm	unstressed spring length
Lk		mm	buckling length
Fn	16.028	N	maximum force in static use
Ln	6.62	mm	Minimum length in static use
sn	11.38	mm	Maximum spring deflection in static use
Fndyn	15.379	N	maximum force in dynamic use
Lndyn	7.08	mm	Minimum length in dynamic use
shdyn	3.04	mm	Maximum stroke in dynamic use
S	2.32	mm	pitch of spring
n	7.5	pc.	number of active coils
nt		pc.	total number of coils
R	1.408	N/mm	Spring rate
Weight	0.3335	g	weight of one spring
Fntol	1.06	N	(+/-) tolerance of maximum force in static use
Fndtol	1.05	N	(+/-) tolerance of maximum dynamic force
Detol	0.25	mm	(+/-) tolerances of outer coil diameter
L0tol	0.59	mm	(+/-) tolerance of unstressed spring length
Price group	B	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring D-090W Spring steel Ø 0.6 x 5 x 18 mm

Datasheet download pdf file

Metal spring characteristic Compression spring D-090W Spring steel Ø 0.6 x 5 x 18 mm

Metal spring characteristic download pdf file

CAD data Compression spring D-090W Spring steel Ø 0.6 x 5 x 18 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring D-090W Spring steel Ø 0.6 x 5 x 18 mm

force-path-calculation Compression spring D-090W

Inquiry formular Compression spring D-090W Spring steel Ø 0.6 x 5 x 18 mm

Inquiry formular Compression spring D-090W

Similar compression springs to Compression spring D-090W Spring steel Ø 0.6 x 5 x 18 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
D-090W	EN 10270-1	0.6	5.6	18	16.028	6.62	11.38	7.5	1.408	85.0 \| 94.4 \| 86.2 \| 74.3
VD-090W	1.4310	0.6	5.6	18	13.767	6.62	11.38	7.5	1.21	92.9 \| 100.0 \| 92.9 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
D-068A-13	6	19.9	0.364	EN 10270-1	4.436	7.73	12.17	64.0 \| 93.3 \| 63.9 \| 34.8
D-072	5.5	20.5	0.599	EN 10270-1	8.502	6.31	14.19	74.6 \| 89.6 \| 76.9 \| 57.2
D-074D	5.3	19	0.677	EN 10270-1	8.628	6.26	12.74	79.1 \| 90.8 \| 81.8 \| 64.7
D-075D	5	17	0.822	EN 10270-1	8.885	6.19	10.81	81.3 \| 90.1 \| 75.2 \| 78.5
D-068A-12	6	15	0.85	EN 10270-1	9.454	3.88	11.12	83.9 \| 91.9 \| 78.5 \| 81.2
D-071A	5.5	16.4	0.926	EN 10270-1	11.079	4.44	11.96	89.4 \| 91.7 \| 87.9 \| 88.5
D-071	5.5	14	0.926	EN 10270-1	8.856	4.44	9.56	73.9 \| 86.4 \| 69.6 \| 65.8
D-090K	6	17.7	1.047	EN 10270-1	13.43	4.87	12.83	100.0 \| 100.0 \| 100.0 \| 100.0
D-097	6.93	17	1.167	EN 10270-1	13.313	5.59	11.41	91.2 \| 90.0 \| 94.0 \| 89.7
D-090M-05	5	18	1.245	EN 10270-1	14.064	6.7	11.3	89.9 \| 93.9 \| 91.8 \| 84.1
D-100A-07	6.4	18	1.285	EN 10270-1	15.063	6.28	11.72	88.3 \| 93.1 \| 90.3 \| 81.4
D-109A	4.63	20	1.355	EN 10270-1	7.068	14.79	5.21	76.9 \| 89.3 \| 44.9 \| 96.3
D-090W	5.6	18	1.408	EN 10270-1	16.028	6.62	11.38	85.0 \| 94.4 \| 86.2 \| 74.3
D-103	5.63	18.5	1.51	EN 10270-1	16.378	7.66	10.84	81.6 \| 92.3 \| 83.2 \| 69.3
D-109	4.63	20	2.006	EN 10270-1	19.261	10.4	9.6	81.1 \| 89.3 \| 83.8 \| 70.2
D-110E	4	18	3.106	EN 10270-1	21.803	10.98	7.02	67.3 \| 88.9 \| 67.6 \| 45.3
D-117C	5	19	3.238	EN 10270-1	32.088	9.09	9.91	59.0 \| 85.0 \| 59.5 \| 32.3
D-117H-60	5.35	20	3.312	EN 10270-1	32.543	10.17	9.83	58.1 \| 83.7 \| 58.9 \| 31.6
D-135	5.8	17.5	3.927	EN 10270-1	31.503	9.48	8.02	55.8 \| 88.1 \| 52.6 \| 26.6
D-117H-50	6	15	4.05	EN 10270-1	35.072	6.34	8.66	54.9 \| 86.0 \| 52.9 \| 25.8
D-132A-11	6.4	16.5	4.32	EN 10270-1	41.474	6.9	9.6	54.4 \| 85.2 \| 53.6 \| 24.2
D-141	4.8	19.5	5.216	EN 10270-1	34.034	12.98	6.53	54.5 \| 84.3 \| 52.2 \| 27.0
D-173A-01	7	18	7.861	EN 10270-1	71.344	8.92	9.08	45.9 \| 79.7 \| 44.8 \| 13.3
D-173F	6.3	18	8.05	EN 10270-1	50.652	11.71	6.29	44.5 \| 82.9 \| 37.8 \| 13.0
D-176	6	17	9.588	EN 10270-1	51.117	11.67	5.33	42.8 \| 83.7 \| 33.9 \| 10.9
D-180D-03	6.5	20	11.144	EN 10270-1	79.98	12.82	7.18	43.7 \| 76.9 \| 41.6 \| 12.6
D-179C	5	17.3	16.756	EN 10270-1	77.445	12.68	4.62	40.3 \| 81.8 \| 30.6 \| 8.4
D-205D	6.8	19	17.116	EN 10270-1	76.994	14.5	4.5	37.8 \| 75.0 \| 30.2 \| 8.2

Number of similar metal springs: 27

Customs tariff number: 73202081; Compression spring D-090W

Country of origin: DE, German; Compression spring D-090W

Product image - Compression springs D-090W

QR-Code: Compression spring D-090W

QR-Code - Compression springs - D-090W | https://www.federnshop.com/en/products/compression_springs/d-090w.html
