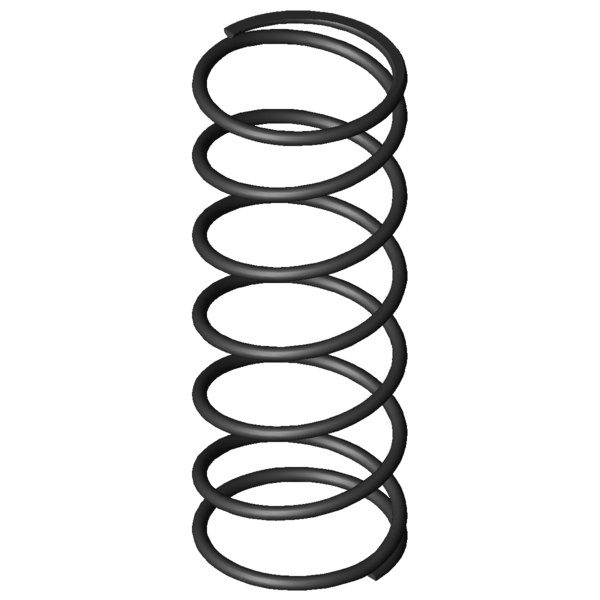

Home » Products » Compression springs » d-179j-12 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-179J-12 Spring steel Ø 1.1 x 14.8 x 42 mm Scaled prices - Compression spring D-179J-12 Quantity Single price [EUR] 1 4.8500 EUR 2 3.4200 EUR 3 3.2600 EUR 7 1.8400 EUR 17 0.8300 EUR 37 0.5200 EUR 75 0.3400 EUR 125 0.2817 EUR 175 0.2192 EUR 250 0.1878 EUR 350 0.1452 EUR 450 0.1264 EUR Compression spring Buy Product image Compression spring D-179J-12 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-179J-12 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 1.1 mm Wire diameter Di mm Inner coil diameter D 14.8 mm Mean coil diameter De 15.9 mm Outer coil diameter Dd 13.1 mm maximum diameter of mandrel Dh 16.8 mm minimum diameter of bush L0 42 mm unstressed spring length Lk mm buckling length Fn 26.351 N maximum force in static use Ln 10.5 mm Minimum length in static use sn 31.5 mm Maximum spring deflection in static use Fndyn 25.347 N maximum force in dynamic use Lndyn 11.7 mm Minimum length in dynamic use shdyn 19.1 mm Maximum stroke in dynamic use S 7.436 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 0.837 N/mm Spring rate Weight 2.6196 g weight of one spring Fntol 2.18 N (+/-) tolerance of maximum force in static use Fndtol 2.17 N (+/-) tolerance of maximum dynamic force Detol 0.4 mm (+/-) tolerances of outer coil diameter L0tol 2.1 mm (+/-) tolerance of unstressed spring length Price group D - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-179J-12 Spring steel Ø 1.1 x 14.8 x 42 mm Datasheet download pdf file Metal spring characteristic Compression spring D-179J-12 Spring steel Ø 1.1 x 14.8 x 42 mm Metal spring characteristic download pdf file CAD data Compression spring D-179J-12 Spring steel Ø 1.1 x 14.8 x 42 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-179J-12 Spring steel Ø 1.1 x 14.8 x 42 mm force-path-calculation Compression spring D-179J-12 Inquiry formular Compression spring D-179J-12 Spring steel Ø 1.1 x 14.8 x 42 mm Inquiry formular Compression spring D-179J-12 Similar compression springs to Compression spring D-179J-12 Spring steel Ø 1.1 x 14.8 x 42 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-179J-12 EN 10270-1 1.1 15.9 42 26.351 10.5 31.5 5.5 0.837 100.0 | 100.0 | 100.0 | 100.0 VD-179J-12 1.4310 1.1 15.9 42 22.633 10.5 31.5 5.5 0.719 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-145D-01 18.5 42 0.543 EN 10270-1 18.76 7.46 34.54 79.5 | 92.3 | 81.2 | 64.9 D-142A 15 39.2 0.681 EN 10270-1 22.328 6.42 32.78 87.2 | 89.8 | 90.4 | 81.4 D-145E 17 44.6 0.711 EN 10270-1 26.582 7.19 37.41 89.8 | 92.9 | 91.7 | 84.9 D-179J-12 15.9 42 0.837 EN 10270-1 26.351 10.5 31.5 100.0 | 100.0 | 100.0 | 100.0 D-179J-02 14 42.3 1.263 EN 10270-1 40.674 10.1 32.2 81.1 | 95.8 | 81.3 | 66.2 D-180M-22 15 40 1.461 EN 10270-1 42.427 10.97 29.03 76.0 | 93.7 | 77.1 | 57.2 D-181 17.25 40.5 1.735 EN 10270-1 51.701 10.7 29.8 65.4 | 89.8 | 65.5 | 41.0 D-207J-20 16 35 2.115 EN 10270-1 36.199 17.88 17.12 62.8 | 85.3 | 63.6 | 39.6 D-187 13.75 41.5 2.315 EN 10270-1 66.219 12.9 28.6 64.2 | 91.1 | 65.3 | 36.1 D-217F 15.1 47 2.36 EN 10270-1 50.957 25.4 21.6 55.7 | 82.1 | 55.0 | 30.1 D-206F 15 39 2.829 EN 10270-1 75.359 12.36 26.64 59.3 | 88.6 | 59.8 | 29.6 D-217C 17 43.3 3.324 EN 10270-1 97.043 14.1 29.2 53.5 | 86.5 | 52.7 | 21.4 D-207J-35 14 40.6 3.521 EN 10270-1 84.686 16.55 24.05 54.5 | 86.0 | 53.7 | 23.8 D-232P 16 40 5.746 EN 10270-1 128.932 17.56 22.44 44.2 | 79.8 | 40.3 | 12.4 D-252A-05 14.8 44 8.636 EN 10270-1 164.897 24.91 19.09 40.1 | 78.6 | 33.6 | 8.2 D-252AA 15 40 9.892 EN 10270-1 183.496 21.45 18.55 42.2 | 81.5 | 36.6 | 8.5 D-252A-04 14.8 38 10.363 EN 10270-1 171.806 21.42 16.58 40.5 | 79.5 | 34.0 | 8.1 D-257C-01 14 39 11.097 EN 10270-1 170.702 23.62 15.38 39.4 | 78.6 | 32.1 | 7.5 D-254A 14.5 39 12.839 EN 10270-1 250.368 19.5 19.5 40.8 | 79.7 | 36.2 | 6.5 Number of similar metal springs: 18 Customs tariff number: 73202081; Compression spring D-179J-12 Country of origin: DE, German; Compression spring D-179J-12 Product image - Compression springs D-179J-12 QR-Code: Compression spring D-179J-12
