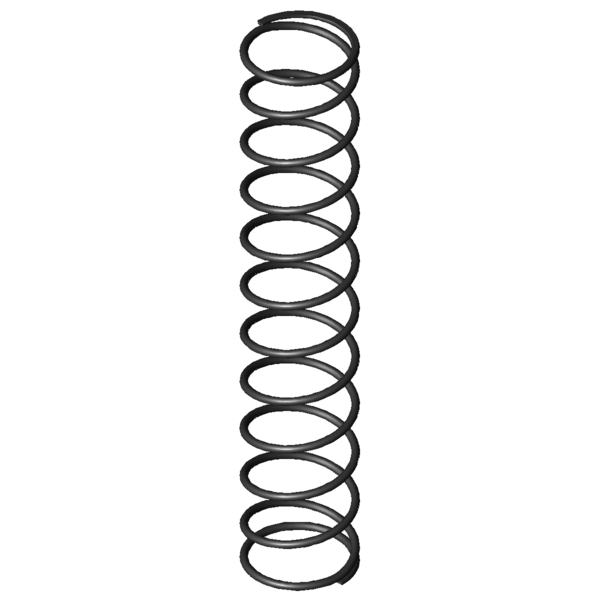

Home » Products » Compression springs » d-180m-13 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-180M-13 Spring steel Ø 1.2 x 15.8 x 89.4 mm Scaled prices - Compression spring D-180M-13 Quantity Single price [EUR] 1 4.9000 EUR 2 3.4600 EUR 3 3.3000 EUR 7 1.8900 EUR 17 0.9300 EUR 37 0.5700 EUR 75 0.3900 EUR 125 0.3566 EUR 175 0.3067 EUR 250 0.2817 EUR 350 0.2526 EUR 450 0.1895 EUR Compression spring Buy Product image Compression spring D-180M-13 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-180M-13 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 1.2 mm Wire diameter Di mm Inner coil diameter D 15.8 mm Mean coil diameter De 17 mm Outer coil diameter Dd 14 mm maximum diameter of mandrel Dh 18.1 mm minimum diameter of bush L0 89.4 mm unstressed spring length Lk 45.75 mm buckling length Fn 35.635 N maximum force in static use Ln 19.54 mm Minimum length in static use sn 69.86 mm Maximum spring deflection in static use Fndyn 34.476 N maximum force in dynamic use Lndyn 21.81 mm Minimum length in dynamic use shdyn 34.92 mm Maximum stroke in dynamic use S 8.4 mm pitch of spring n 10.5 pc. number of active coils nt pc. total number of coils R 0.51 N/mm Spring rate Weight 5.5469 g weight of one spring Fntol 2.37 N (+/-) tolerance of maximum force in static use Fndtol 2.35 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 3.59 mm (+/-) tolerance of unstressed spring length Price group E - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-180M-13 Spring steel Ø 1.2 x 15.8 x 89.4 mm Datasheet download pdf file Metal spring characteristic Compression spring D-180M-13 Spring steel Ø 1.2 x 15.8 x 89.4 mm Metal spring characteristic download pdf file CAD data Compression spring D-180M-13 Spring steel Ø 1.2 x 15.8 x 89.4 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-180M-13 Spring steel Ø 1.2 x 15.8 x 89.4 mm force-path-calculation Compression spring D-180M-13 Inquiry formular Compression spring D-180M-13 Spring steel Ø 1.2 x 15.8 x 89.4 mm Inquiry formular Compression spring D-180M-13 Similar compression springs to Compression spring D-180M-13 Spring steel Ø 1.2 x 15.8 x 89.4 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-180M-13 EN 10270-1 1.2 17 89.4 35.635 19.54 69.86 10.5 0.51 100.0 | 100.0 | 100.0 | 100.0 VD-180M-13 1.4310 1.2 17 89.4 30.607 19.54 69.86 10.5 0.438 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-180M-13 17 89.4 0.51 EN 10270-1 35.635 19.54 69.86 100.0 | 100.0 | 100.0 | 100.0 D-179J-13 15.9 85 0.541 EN 10270-1 37.88 15.02 69.98 94.9 | 93.4 | 97.0 | 94.2 D-180M-24 15 93 0.643 EN 10270-1 45.734 21.88 71.12 87.4 | 94.8 | 88.1 | 79.3 D-183 17.25 94 0.714 EN 10270-1 51.9 21.35 72.65 83.5 | 96.6 | 82.4 | 71.4 D-207JY 18.5 87.5 0.84 EN 10270-1 50.608 27.24 60.26 76.3 | 89.9 | 78.3 | 60.7 D-206G-02 15 93 1.073 EN 10270-1 69.741 28 65 69.9 | 90.0 | 72.1 | 47.5 D-206D-03 17.4 83.3 1.124 EN 10270-1 71.548 19.65 63.65 69.3 | 92.2 | 70.5 | 45.4 D-207J-85 18.5 85 1.235 EN 10270-1 80.915 19.48 65.52 66.4 | 89.0 | 68.9 | 41.3 D-215 17.6 77.5 1.918 EN 10270-1 103.841 23.35 54.15 56.2 | 86.1 | 55.9 | 26.6 D-251A 18 98 2.151 EN 10270-1 107.012 48.25 49.75 52.6 | 81.9 | 52.3 | 23.7 D-232T 16 93 2.264 EN 10270-1 122.141 39.04 53.96 53.8 | 85.6 | 53.2 | 22.5 D-232S 16 80 2.576 EN 10270-1 116.567 34.75 45.25 50.3 | 83.4 | 47.7 | 19.8 D-251 18 98 3.184 EN 10270-1 195.313 36.65 61.35 50.3 | 81.9 | 53.0 | 16.0 D-263M-04 19 95 3.471 EN 10270-1 182.993 42.28 52.72 47.2 | 79.4 | 47.5 | 14.7 D-252A-09 14.8 89 3.886 EN 10270-1 149.784 50.46 38.54 44.9 | 82.2 | 39.5 | 13.1 D-252AD 15 87.4 4.496 EN 10270-1 202.381 42.39 45.01 44.8 | 82.0 | 41.0 | 11.3 Number of similar metal springs: 15 Customs tariff number: 73202081; Compression spring D-180M-13 Country of origin: DE, German; Compression spring D-180M-13 Product image - Compression springs D-180M-13 QR-Code: Compression spring D-180M-13
