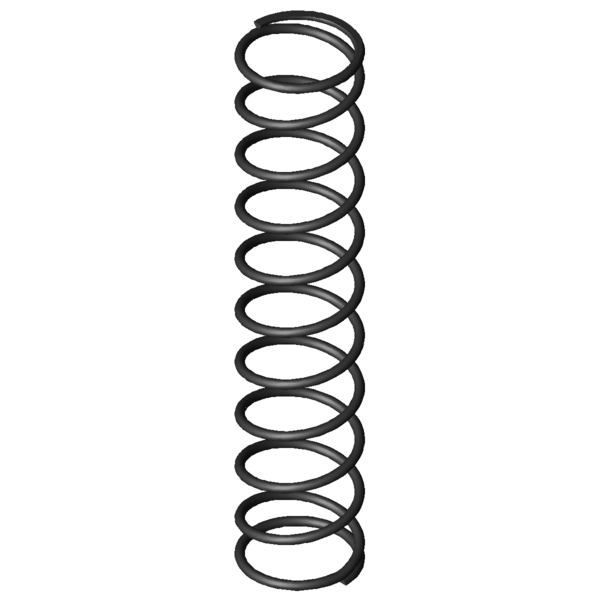

Home » Products » Compression springs » d-180m-23 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-180M-23 Spring steel Ø 1.2 x 13.8 x 72 mm Scaled prices - Compression spring D-180M-23 Quantity Single price [EUR] 1 4.9000 EUR 2 3.4600 EUR 3 3.3000 EUR 7 1.8900 EUR 17 0.9300 EUR 37 0.5700 EUR 75 0.3900 EUR 125 0.3566 EUR 175 0.3067 EUR 250 0.2817 EUR 350 0.2526 EUR 450 0.1895 EUR Compression spring Buy Product image Compression spring D-180M-23 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-180M-23 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 1.2 mm Wire diameter Di mm Inner coil diameter D 13.8 mm Mean coil diameter De 15 mm Outer coil diameter Dd 12 mm maximum diameter of mandrel Dh 15.88 mm minimum diameter of bush L0 72 mm unstressed spring length Lk 21.45 mm buckling length Fn 46.367 N maximum force in static use Ln 17.2 mm Minimum length in static use sn 54.8 mm Maximum spring deflection in static use Fndyn 44.844 N maximum force in dynamic use Lndyn 19 mm Minimum length in dynamic use shdyn 21 mm Maximum stroke in dynamic use S 7.453 mm pitch of spring n 9.5 pc. number of active coils nt pc. total number of coils R 0.846 N/mm Spring rate Weight 4.4572 g weight of one spring Fntol 2.65 N (+/-) tolerance of maximum force in static use Fndtol 2.6 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 2.3 mm (+/-) tolerance of unstressed spring length Price group E - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-180M-23 Spring steel Ø 1.2 x 13.8 x 72 mm Datasheet download pdf file Metal spring characteristic Compression spring D-180M-23 Spring steel Ø 1.2 x 13.8 x 72 mm Metal spring characteristic download pdf file CAD data Compression spring D-180M-23 Spring steel Ø 1.2 x 13.8 x 72 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-180M-23 Spring steel Ø 1.2 x 13.8 x 72 mm force-path-calculation Compression spring D-180M-23 Inquiry formular Compression spring D-180M-23 Spring steel Ø 1.2 x 13.8 x 72 mm Inquiry formular Compression spring D-180M-23 Similar compression springs to Compression spring D-180M-23 Spring steel Ø 1.2 x 13.8 x 72 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-180M-23 EN 10270-1 1.2 15 72 46.367 17.2 54.8 9.5 0.846 100.0 | 100.0 | 100.0 | 100.0 VD-180M-23 1.4310 1.2 15 72 39.788 17.25 54.75 9.5 0.727 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-180M-12 17 72.8 0.63 EN 10270-1 35.617 16.27 56.53 85.7 | 95.7 | 86.9 | 74.5 D-185G 15 80 0.765 EN 10270-1 43.934 22.6 57.4 93.6 | 95.3 | 95.1 | 90.5 D-180M-23 15 72 0.846 EN 10270-1 46.367 17.2 54.8 100.0 | 100.0 | 100.0 | 100.0 D-207J-05 16.5 75.7 1.223 EN 10270-1 60.223 26.44 49.26 80.4 | 88.7 | 83.4 | 69.2 D-206G-01 15 79 1.245 EN 10270-1 67.801 24.53 54.47 81.4 | 92.3 | 83.9 | 68.0 D-207J-27 15 70 1.497 EN 10270-1 61.91 28.65 41.35 74.7 | 92.4 | 75.2 | 56.5 D-206G 15 65.3 1.638 EN 10270-1 75.314 19.31 45.99 72.2 | 92.1 | 72.7 | 51.7 D-207J-22 15.5 80 1.79 EN 10270-1 99.346 24.5 55.5 69.6 | 88.9 | 72.7 | 47.3 D-221A 14.1 78 1.848 EN 10270-1 73.042 38.47 39.53 66.9 | 87.1 | 67.8 | 45.8 D-207J-10 14.5 73.5 1.878 EN 10270-1 89.697 25.74 47.76 68.7 | 91.5 | 69.4 | 45.1 D-217D 17 72.4 1.924 EN 10270-1 96.92 22.03 50.37 67.1 | 87.6 | 69.9 | 44.0 D-221 14.1 78 2.735 EN 10270-1 133.179 29.3 48.7 60.0 | 87.1 | 61.8 | 30.9 D-256A 14.5 71 4.511 EN 10270-1 108.863 46.87 24.13 49.1 | 85.1 | 43.3 | 18.8 D-252A-08 14.8 76 4.711 EN 10270-1 158.617 42.33 33.67 49.3 | 84.5 | 45.3 | 18.0 D-252A-35 15 75 5.916 EN 10270-1 240.799 34.3 40.7 48.8 | 85.3 | 46.8 | 14.3 D-252AC 15 66.2 5.935 EN 10270-1 196.553 33.08 33.12 46.8 | 84.0 | 42.0 | 14.3 D-252A-07 14.8 64 5.979 EN 10270-1 178.184 34.2 29.8 45.6 | 82.5 | 40.2 | 14.2 D-257E 14 73.1 6.086 EN 10270-1 202.813 39.77 33.33 46.6 | 83.9 | 41.8 | 13.9 Number of similar metal springs: 17 Customs tariff number: 73202081; Compression spring D-180M-23 Country of origin: DE, German; Compression spring D-180M-23 Product image - Compression springs D-180M-23 QR-Code: Compression spring D-180M-23
