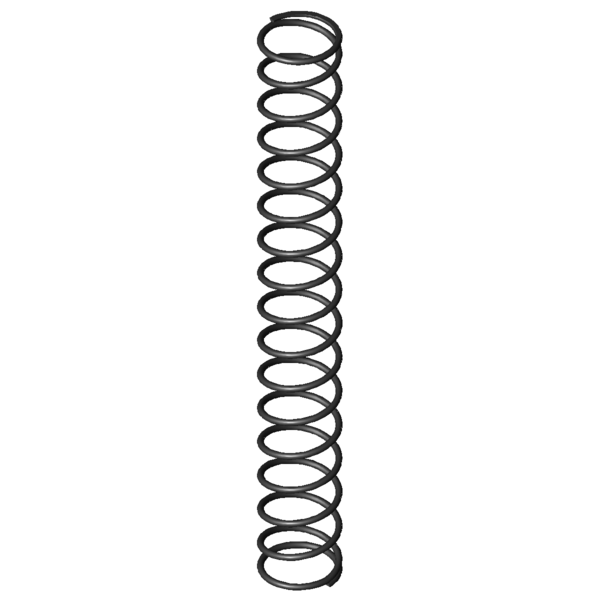

Home » Products » Compression springs » d-180m-25 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-180M-25 Spring steel Ø 1.2 x 13.8 x 115 mm Scaled prices - Compression spring D-180M-25 Quantity Single price [EUR] 1 4.9000 EUR 2 3.4600 EUR 3 3.3000 EUR 7 1.8900 EUR 17 0.9300 EUR 37 0.5700 EUR 75 0.3900 EUR 125 0.3566 EUR 175 0.3067 EUR 250 0.2817 EUR 350 0.2526 EUR 450 0.1895 EUR Compression spring Buy Product image Compression spring D-180M-25 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-180M-25 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 1.2 mm Wire diameter Di mm Inner coil diameter D 13.8 mm Mean coil diameter De 15 mm Outer coil diameter Dd 12 mm maximum diameter of mandrel Dh 15.88 mm minimum diameter of bush L0 115 mm unstressed spring length Lk 94.6 mm buckling length Fn 45.869 N maximum force in static use Ln 26.55 mm Minimum length in static use sn 88.45 mm Maximum spring deflection in static use Fndyn 44.391 N maximum force in dynamic use Lndyn 29.4 mm Minimum length in dynamic use shdyn 34.5 mm Maximum stroke in dynamic use S 7.342 mm pitch of spring n 15.5 pc. number of active coils nt pc. total number of coils R 0.519 N/mm Spring rate Weight 6.7827 g weight of one spring Fntol 2.51 N (+/-) tolerance of maximum force in static use Fndtol 2.5 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 3 mm (+/-) tolerance of unstressed spring length Price group E - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-180M-25 Spring steel Ø 1.2 x 13.8 x 115 mm Datasheet download pdf file Metal spring characteristic Compression spring D-180M-25 Spring steel Ø 1.2 x 13.8 x 115 mm Metal spring characteristic download pdf file CAD data Compression spring D-180M-25 Spring steel Ø 1.2 x 13.8 x 115 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-180M-25 Spring steel Ø 1.2 x 13.8 x 115 mm force-path-calculation Compression spring D-180M-25 Inquiry formular Compression spring D-180M-25 Spring steel Ø 1.2 x 13.8 x 115 mm Inquiry formular Compression spring D-180M-25 Similar compression springs to Compression spring D-180M-25 Spring steel Ø 1.2 x 13.8 x 115 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-180M-25 EN 10270-1 1.2 15 115 45.869 26.55 88.45 15.5 0.519 100.0 | 100.0 | 100.0 | 100.0 VD-180M-25 1.4310 1.2 15 115 39.375 26.6 88.4 15.5 0.445 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-117L 14 99.1 0.191 EN 10270-1 16.431 13.06 86.04 61.8 | 82.1 | 66.5 | 36.8 D-150A 13.5 115 0.232 EN 10270-1 19.236 32.02 82.98 67.9 | 91.1 | 67.9 | 44.7 D-142C 15 101 0.251 EN 10270-1 21.748 14.35 86.65 69.6 | 87.6 | 72.7 | 48.4 D-145G 17 115 0.262 EN 10270-1 25.893 16.1 98.9 71.3 | 90.5 | 72.9 | 50.5 D-150 13.5 115 0.282 EN 10270-1 24.9 26.69 88.31 74.2 | 91.1 | 77.1 | 54.4 D-179J-14 15.9 125 0.368 EN 10270-1 38.258 21.06 103.94 82.6 | 92.7 | 84.3 | 71.0 D-180M-14 17 106 0.428 EN 10270-1 35.648 22.8 83.2 87.3 | 93.5 | 85.9 | 82.6 D-185J 15 125 0.467 EN 10270-1 41.817 35.4 89.6 93.6 | 96.0 | 94.9 | 90.0 D-185H 15 112 0.517 EN 10270-1 41.27 32.2 79.8 95.9 | 97.8 | 90.1 | 99.7 D-180M-25 15 115 0.519 EN 10270-1 45.869 26.55 88.45 100.0 | 100.0 | 100.0 | 100.0 D-180M-24 15 93 0.643 EN 10270-1 45.734 21.88 71.12 88.1 | 93.6 | 90.1 | 80.6 D-207J-06 16.5 110 0.826 EN 10270-1 59.731 37.69 72.31 77.0 | 88.9 | 79.3 | 62.8 D-206H 15 105 1.004 EN 10270-1 75.542 29.74 75.26 72.3 | 92.3 | 72.9 | 51.7 D-206G-02 15 93 1.073 EN 10270-1 69.741 28 65 68.9 | 88.9 | 69.6 | 48.3 D-217E 17 116 1.179 EN 10270-1 96.796 33.93 82.07 67.2 | 87.5 | 70.1 | 44.0 D-207J-11 14.5 97 1.423 EN 10270-1 91.035 33.01 63.99 61.6 | 87.0 | 61.4 | 36.5 D-222A 14.1 115 1.519 EN 10270-1 104.684 46.1 68.9 61.6 | 89.7 | 60.9 | 34.1 D-233T-10 15 130 1.661 EN 10270-1 111.088 63.11 66.89 58.2 | 85.0 | 58.5 | 31.2 D-222 14.1 115 1.848 EN 10270-1 133.408 42.8 72.2 58.6 | 89.7 | 58.0 | 28.1 D-252AF 15 120 3.297 EN 10270-1 209.875 56.35 63.65 49.3 | 85.3 | 46.9 | 15.7 D-252A-10 14.8 102 3.307 EN 10270-1 143.583 58.59 43.41 46.2 | 82.5 | 40.5 | 15.7 D-257A 14.5 105 3.709 EN 10270-1 181.242 56.14 48.86 45.6 | 82.7 | 40.3 | 14.0 D-252AE 15 98 4.01 EN 10270-1 204.35 47.04 50.96 44.9 | 81.7 | 40.0 | 12.9 D-257 14.5 105 4.511 EN 10270-1 250.368 49.5 55.5 44.9 | 82.7 | 40.5 | 11.5 D-252A-40 15 92 4.787 EN 10270-1 240.287 41.8 50.2 42.9 | 80.0 | 37.9 | 10.8 Number of similar metal springs: 24 Customs tariff number: 73202081; Compression spring D-180M-25 Country of origin: DE, German; Compression spring D-180M-25 Product image - Compression springs D-180M-25 QR-Code: Compression spring D-180M-25
