Compression spring D-180Q Spring steel Ø 1.2 x 11.8 x 92.7 mm

Scaled prices - Compression spring D-180Q

Quantity	Single price [EUR]
1	5.0100 EUR
2	3.5300 EUR
3	3.3700 EUR
7	2.1400 EUR
17	1.0400 EUR
37	0.6600 EUR
75	0.5000 EUR
125	0.4132 EUR
175	0.3696 EUR
250	0.3256 EUR
350	0.2842 EUR
450	0.2464 EUR

Compression spring Buy

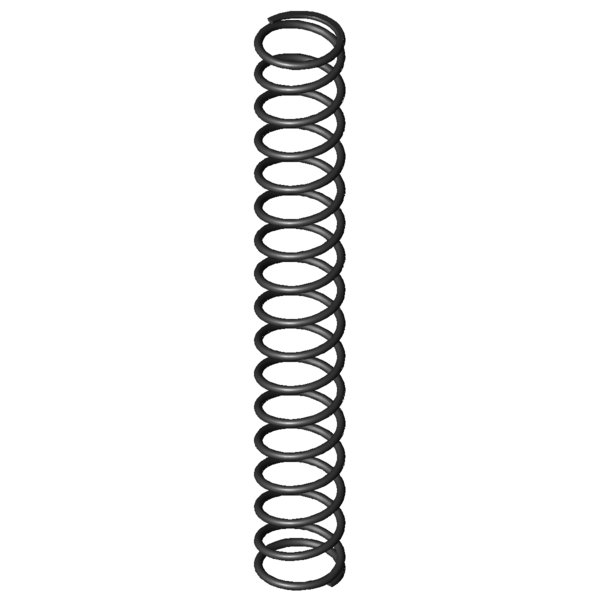

Product image Compression spring D-180Q

Quantity:Quantity: Add to shopping cart

Technical Data - Compression spring D-180Q

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	1.2	mm	Wire diameter
Di		mm	Inner coil diameter
D	11.8	mm	Mean coil diameter
De	13	mm	Outer coil diameter
Dd	10	mm	maximum diameter of mandrel
Dh	13.8	mm	minimum diameter of bush
L0	92.7	mm	unstressed spring length
Lk	73.83	mm	buckling length
Fn	55.694	N	maximum force in static use
Ln	25.56	mm	Minimum length in static use
sn	67.14	mm	Maximum spring deflection in static use
Fndyn	53.801	N	maximum force in dynamic use
Lndyn	27.84	mm	Minimum length in dynamic use
shdyn	23.73	mm	Maximum stroke in dynamic use
S	5.903	mm	pitch of spring
n	15.5	pc.	number of active coils
nt		pc.	total number of coils
R	0.829	N/mm	Spring rate
Weight	5.7997	g	weight of one spring
Fntol	2.85	N	(+/-) tolerance of maximum force in static use
Fndtol	2.82	N	(+/-) tolerance of maximum dynamic force
Detol	0.35	mm	(+/-) tolerances of outer coil diameter
L0tol	2.42	mm	(+/-) tolerance of unstressed spring length
Price group	G	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force

Technical drawing Compression spring

Datasheet Compression spring D-180Q Spring steel Ø 1.2 x 11.8 x 92.7 mm

Datasheet download pdf file

Metal spring characteristic Compression spring D-180Q Spring steel Ø 1.2 x 11.8 x 92.7 mm

Metal spring characteristic download pdf file

CAD data Compression spring D-180Q Spring steel Ø 1.2 x 11.8 x 92.7 mm

CAD models download: step, stl, iges ...

force-path-calculation Compression spring D-180Q Spring steel Ø 1.2 x 11.8 x 92.7 mm

force-path-calculation Compression spring D-180Q

Inquiry formular Compression spring D-180Q Spring steel Ø 1.2 x 11.8 x 92.7 mm

Inquiry formular Compression spring D-180Q

Similar compression springs to Compression spring D-180Q Spring steel Ø 1.2 x 11.8 x 92.7 mm

Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Compression Spring made from a different material

The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	n (pc.)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
D-180Q	EN 10270-1	1.2	13	92.7	55.694	25.56	67.14	15.5	0.829	100.0 \| 100.0 \| 100.0 \| 100.0
VD-180Q	1.4310	1.2	13	92.7	47.836	25.56	67.14	15.5	0.712	92.9 \| 100.0 \| 92.9 \| 85.9

Number of similar metal springs: 2

Similar Compression Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
D-090W-04	11.6	98	0.097	EN 10270-1	8.217	13.5	84.5	45.9 \| 78.8 \| 47.1 \| 11.7
D-115G	12	84.6	0.178	EN 10270-1	13.077	11.31	73.29	53.2 \| 80.6 \| 57.5 \| 21.5
D-122A	10.8	96.5	0.185	EN 10270-1	13.145	25.62	70.88	54.5 \| 81.9 \| 59.2 \| 22.4
D-117L	14	99.1	0.191	EN 10270-1	16.431	13.06	86.04	53.7 \| 84.4 \| 53.8 \| 23.0
D-117Q	12	84	0.22	EN 10270-1	14.816	16.66	67.34	57.6 \| 83.2 \| 63.2 \| 26.5
D-122	10.8	96.5	0.226	EN 10270-1	16.951	21.35	75.15	56.3 \| 81.9 \| 59.9 \| 27.2
D-149A	13.5	80.5	0.282	EN 10270-1	15.173	26.69	53.81	58.8 \| 88.8 \| 53.7 \| 34.0
D-149	13.5	80.5	0.417	EN 10270-1	25.796	18.68	61.82	69.4 \| 88.8 \| 69.2 \| 50.3
D-150E	12.5	77	0.496	EN 10270-1	28.516	19.53	57.47	71.9 \| 87.5 \| 68.4 \| 59.8
D-179J-04	14	96.2	0.556	EN 10270-1	42.266	20.16	76.04	80.9 \| 93.6 \| 82.1 \| 67.0
D-180M-24	15	93	0.643	EN 10270-1	45.734	21.88	71.12	87.1 \| 95.4 \| 88.3 \| 77.5
D-189A	13.75	90.5	0.688	EN 10270-1	40.677	31.41	59.09	86.5 \| 96.1 \| 80.5 \| 83.0
D-179N	12	88.8	0.743	EN 10270-1	48.547	23.47	65.33	91.7 \| 93.3 \| 92.2 \| 89.6
D-180P-02	13	82	0.779	EN 10270-1	42.817	27.05	54.95	89.8 \| 96.2 \| 79.4 \| 93.9
D-180Q	13	92.7	0.829	EN 10270-1	55.694	25.56	67.14	100.0 \| 100.0 \| 100.0 \| 100.0
D-189	13.75	90.5	1.019	EN 10270-1	66.219	25.5	65	89.3 \| 96.1 \| 90.5 \| 81.4
D-206G-02	15	93	1.073	EN 10270-1	69.741	28	65	85.4 \| 90.7 \| 88.3 \| 77.3
D-195A	11.25	93.5	1.105	EN 10270-1	63.409	36.14	57.36	85.2 \| 93.9 \| 86.6 \| 75.0
D-195	11.25	93.5	1.344	EN 10270-1	82.816	31.9	61.6	78.4 \| 93.9 \| 79.5 \| 61.7
D-207J-11	14.5	97	1.423	EN 10270-1	91.035	33.01	63.99	75.0 \| 88.4 \| 78.2 \| 58.3
D-207J-39	14	95.8	1.427	EN 10270-1	84.762	36.42	59.38	75.0 \| 89.9 \| 77.1 \| 58.1
D-207KE	12.5	80.9	2.095	EN 10270-1	94.539	35.76	45.14	63.5 \| 87.8 \| 63.1 \| 39.6
D-222F	12.7	79	2.639	EN 10270-1	108.463	37.9	41.1	57.9 \| 86.0 \| 56.3 \| 31.4
D-227A	11.6	85	2.967	EN 10270-1	118.962	44.91	40.09	55.5 \| 85.3 \| 53.3 \| 28.0
D-227	11.6	85	3.609	EN 10270-1	166.01	39	46	53.1 \| 85.3 \| 51.0 \| 23.0
D-252A-09	14.8	89	3.886	EN 10270-1	149.784	50.46	38.54	50.0 \| 81.3 \| 47.3 \| 21.3
D-252A-40	15	92	4.787	EN 10270-1	240.287	41.8	50.2	49.4 \| 82.0 \| 49.0 \| 17.3
D-257E-13	13	107	5.211	EN 10270-1	256.223	57.83	49.17	48.5 \| 82.2 \| 47.5 \| 15.9
D-257E-12	13	89	6.28	EN 10270-1	253.284	48.67	40.33	46.5 \| 85.3 \| 41.0 \| 13.2
D-263V-17	15.2	89	7.675	EN 10270-1	204.222	62.39	26.61	40.5 \| 77.2 \| 33.5 \| 10.8

Number of similar metal springs: 29
