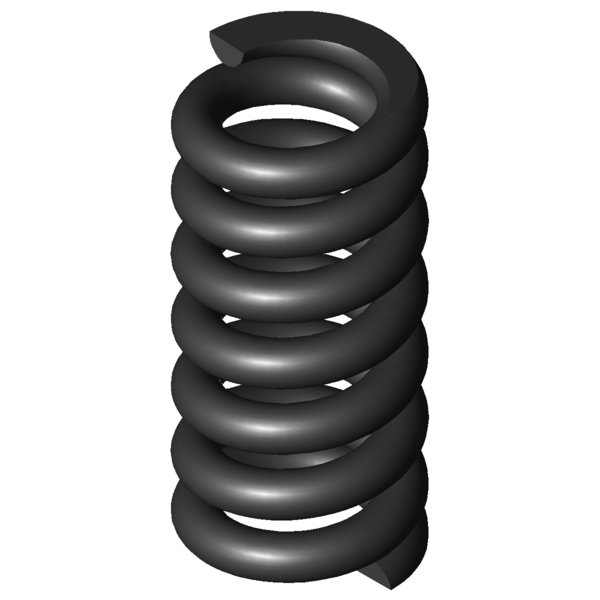

Home » Products » Compression springs » d-180w Url teilen URL was copied to clipboard, successfully ! Overview Back to overview The Item has been added to your shopping cart. Compression spring D-180W Spring steel Ø 1.2 x 4.8 x 12.9 mm Scaled prices - Compression spring D-180W Quantity Single price [EUR] 1 4.9000 EUR 2 3.4600 EUR 3 3.3000 EUR 7 1.8900 EUR 17 0.9300 EUR 37 0.5700 EUR 75 0.3900 EUR 125 0.3566 EUR 175 0.3067 EUR 250 0.2817 EUR 350 0.2526 EUR 450 0.1895 EUR Compression spring Buy Product image Compression spring D-180W Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-180W Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 - N prestressed spring force L1 - mm Prestressed spring length s1 - mm Prestressed spring deflection F2 - N Loaded spring force L2 - mm Loaded spring length s2 - mm Loaded spring deflection d 1.2 mm Wire diameter Di - mm Inner coil diameter D 4.8 mm Mean coil diameter De 6 mm Outer coil diameter Dd 3.1 mm maximum diameter of mandrel Dh 6.5 mm minimum diameter of bush L0 12.9 mm unstressed spring length Lk mm buckling length Fn 107.024 N maximum force in static use Ln 9.82 mm Minimum length in static use sn 3.08 mm Maximum spring deflection in static use Fndyn 92.729 N maximum force in dynamic use Lndyn 10.23 mm Minimum length in dynamic use shdyn 1.31 mm Maximum stroke in dynamic use S 2.127 mm pitch of spring n 5.5 pc. number of active coils nt - pc. total number of coils R 34.73 N/mm Spring rate Weight 1.0111 g weight of one spring Fntol 13.55 N (+/-) tolerance of maximum force in static use Fndtol 13.33 N (+/-) tolerance of maximum dynamic force Detol 0.25 mm (+/-) tolerances of outer coil diameter L0tol 0.34 mm (+/-) tolerance of unstressed spring length Price group E - price group F1tol - N (+/-) tolerance of prestressed spring force F2tol - N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-180W Spring steel Ø 1.2 x 4.8 x 12.9 mm Datasheet download pdf file Metal spring characteristic Compression spring D-180W Spring steel Ø 1.2 x 4.8 x 12.9 mm Metal spring characteristic download pdf file CAD data Compression spring D-180W Spring steel Ø 1.2 x 4.8 x 12.9 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-180W Spring steel Ø 1.2 x 4.8 x 12.9 mm force-path-calculation Compression spring D-180W Inquiry formular Compression spring D-180W Spring steel Ø 1.2 x 4.8 x 12.9 mm Inquiry formular Compression spring D-180W Similar compression springs to Compression spring D-180W Spring steel Ø 1.2 x 4.8 x 12.9 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-180W EN 10270-1 1.2 6 12.9 107.024 9.82 3.08 5.5 34.73 100.0 | 100.0 | 100.0 | 100.0 VD-180W 1.4310 1.2 6 12.9 91.923 9.82 3.08 5.5 29.83 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-117H-50 6 15 4.05 EN 10270-1 35.072 6.34 8.66 42.9 | 82.8 | 34.2 | 11.7 D-117B 5 12.1 5.594 EN 10270-1 34.944 5.85 6.25 45.2 | 78.5 | 41.0 | 16.1 D-134 5.8 12 6.07 EN 10270-1 32.182 6.7 5.3 49.0 | 85.5 | 44.1 | 17.5 D-173 7 14 6.738 EN 10270-1 26.426 10.08 3.92 52.7 | 87.1 | 51.6 | 19.4 D-132A-10 6.4 10.5 6.789 EN 10270-1 38.085 4.89 5.61 48.5 | 80.6 | 45.2 | 19.5 D-140 4.8 14 7.671 EN 10270-1 35.783 9.34 4.67 50.4 | 79.6 | 49.7 | 22.1 D-144B 6.3 13.6 7.718 EN 10270-1 46.984 7.51 6.09 52.6 | 88.4 | 47.2 | 22.2 D-172 7 14 7.861 EN 10270-1 39.901 8.92 5.08 52.9 | 87.1 | 49.0 | 22.6 D-142AC 4.4 13 10.522 EN 10270-1 39.073 9.29 3.71 56.6 | 79.7 | 59.8 | 30.3 D-173E 6.3 12 12.442 EN 10270-1 46.261 8.28 3.72 63.1 | 90.5 | 63.0 | 35.8 D-175 6 12 14.818 EN 10270-1 55.476 8.26 3.74 67.3 | 92.1 | 67.1 | 42.7 D-180D-02 6.5 13.7 17.222 EN 10270-1 79.676 9.07 4.63 70.9 | 92.7 | 70.5 | 49.5 D-205C 6.8 13 26.452 EN 10270-1 72.326 10.27 2.73 82.9 | 94.5 | 78.1 | 76.2 D-180F 5.5 11.9 31.836 EN 10270-1 92.318 9 2.9 91.2 | 91.9 | 90.2 | 91.6 D-180W 6 12.9 34.73 EN 10270-1 107.024 9.82 3.08 100.0 | 100.0 | 100.0 | 100.0 D-180V 6 9 54.576 EN 10270-1 102.559 7.12 1.88 77.4 | 89.9 | 78.4 | 63.7 Number of similar metal springs: 15 Customs tariff number: 73202081; Compression spring D-180W Country of origin: DE, German; Compression spring D-180W Product image - Compression springs D-180W QR-Code: Compression spring D-180W
