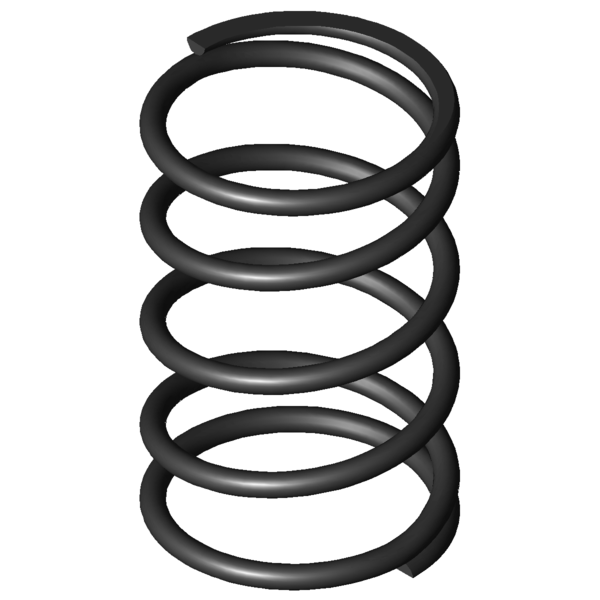

Home » Products » Compression springs » d-185c Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-185C Spring steel Ø 1.25 x 13.75 x 23.5 mm Scaled prices - Compression spring D-185C Quantity Single price [EUR] 1 4.9000 EUR 2 3.4600 EUR 3 3.3000 EUR 7 1.8900 EUR 17 0.9300 EUR 37 0.5700 EUR 75 0.3900 EUR 125 0.3566 EUR 175 0.3067 EUR 250 0.2817 EUR 350 0.2526 EUR 450 0.1895 EUR Compression spring Buy Product image Compression spring D-185C Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-185C Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 1.25 mm Wire diameter Di mm Inner coil diameter D 13.75 mm Mean coil diameter De 15 mm Outer coil diameter Dd 11.9 mm maximum diameter of mandrel Dh 15.9 mm minimum diameter of bush L0 23.5 mm unstressed spring length Lk mm buckling length Fn 42.097 N maximum force in static use Ln 8.1 mm Minimum length in static use sn 15.4 mm Maximum spring deflection in static use Fndyn 40.184 N maximum force in dynamic use Lndyn 8.8 mm Minimum length in dynamic use shdyn 5.7 mm Maximum stroke in dynamic use S 6.357 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 2.734 N/mm Spring rate Weight 2.0951 g weight of one spring Fntol 3.3 N (+/-) tolerance of maximum force in static use Fndtol 3.3 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 0.9 mm (+/-) tolerance of unstressed spring length Price group E - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-185C Spring steel Ø 1.25 x 13.75 x 23.5 mm Datasheet download pdf file Metal spring characteristic Compression spring D-185C Spring steel Ø 1.25 x 13.75 x 23.5 mm Metal spring characteristic download pdf file CAD data Compression spring D-185C Spring steel Ø 1.25 x 13.75 x 23.5 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-185C Spring steel Ø 1.25 x 13.75 x 23.5 mm force-path-calculation Compression spring D-185C Inquiry formular Compression spring D-185C Spring steel Ø 1.25 x 13.75 x 23.5 mm Inquiry formular Compression spring D-185C Similar compression springs to Compression spring D-185C Spring steel Ø 1.25 x 13.75 x 23.5 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-185C EN 10270-1 1.25 15 23.5 42.097 8.1 15.4 3.5 2.734 100.0 | 100.0 | 100.0 | 100.0 VD-185C 1.4310 1.25 15 23.5 36.157 8.1 15.4 3.5 2.348 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-117N 12 23 0.849 EN 10270-1 14.848 5.5 17.5 57.8 | 80.6 | 61.6 | 31.0 D-179J-11 15.9 22 1.315 EN 10270-1 19.088 7.48 14.52 70.0 | 92.0 | 69.8 | 48.1 D-146 13.5 24 1.49 EN 10270-1 25.826 6.67 17.33 73.0 | 89.3 | 75.1 | 54.5 D-179J-01 14 27 1.985 EN 10270-1 39.249 7.23 19.77 82.5 | 89.5 | 85.6 | 72.6 D-180M-21 15 25 2.297 EN 10270-1 39.387 7.85 17.15 90.8 | 96.7 | 91.7 | 84.0 D-185C 15 23.5 2.734 EN 10270-1 42.097 8.1 15.4 100.0 | 100.0 | 100.0 | 100.0 D-179K 12 23 3.291 EN 10270-1 52.645 7 16 86.6 | 88.6 | 88.1 | 83.1 D-180N 13 22.8 3.673 EN 10270-1 55.73 7.63 15.17 84.9 | 93.2 | 87.0 | 74.4 D-207K 13.8 23 4.264 EN 10270-1 35.354 14.71 8.29 74.7 | 91.1 | 68.9 | 64.1 D-207J-01 16.5 23.3 4.366 EN 10270-1 59.979 9.56 13.74 77.8 | 91.1 | 79.7 | 62.6 D-206E 15 25.8 4.445 EN 10270-1 75.197 8.88 16.92 76.2 | 93.5 | 73.5 | 61.5 D-207 13.4 23 4.53 EN 10270-1 53.126 11.27 11.73 76.7 | 92.2 | 77.7 | 60.4 D-218A 14.1 26 6.215 EN 10270-1 76.536 13.69 12.31 66.3 | 87.5 | 67.5 | 44.0 D-212H 17.6 22.5 6.52 EN 10270-1 93.236 8.2 14.3 65.8 | 86.4 | 69.0 | 41.9 D-217A-12 17 22 6.647 EN 10270-1 88.743 8.65 13.35 64.9 | 86.7 | 67.1 | 41.1 D-207J-30 14 20.5 7.545 EN 10270-1 84.334 9.32 11.18 61.8 | 88.0 | 61.3 | 36.2 D-218 14.1 24 9.767 EN 10270-1 133.316 10.35 13.65 59.4 | 90.0 | 60.1 | 28.0 D-252A-33 15 28.5 14.132 EN 10270-1 173.539 16.22 12.28 51.0 | 81.7 | 52.0 | 19.3 D-252A-02 14.8 25 17.272 EN 10270-1 182.17 14.45 10.55 48.9 | 85.1 | 45.8 | 15.8 D-253 14.5 22.5 23.845 EN 10270-1 247.741 12.11 10.39 46.2 | 85.0 | 42.2 | 11.5 D-263V-10 15.2 25 29.304 EN 10270-1 149.94 19.88 5.12 40.5 | 81.6 | 30.7 | 9.3 Number of similar metal springs: 20 Customs tariff number: 73202081; Compression spring D-185C Country of origin: DE, German; Compression spring D-185C Product image - Compression springs D-185C QR-Code: Compression spring D-185C
