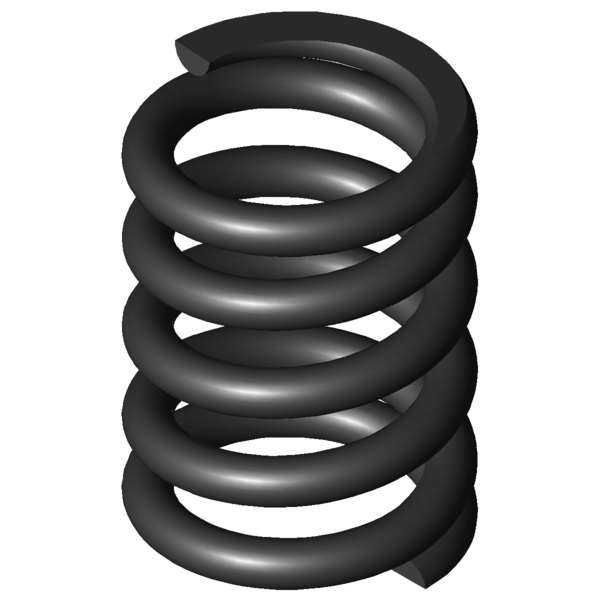

Home » Products » Compression springs » d-263n Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-263N Spring steel Ø 2.2 x 12.8 x 20.8 mm Scaled prices - Compression spring D-263N Quantity Single price [EUR] 1 5.0100 EUR 2 3.5300 EUR 3 3.3700 EUR 7 2.1400 EUR 17 1.0400 EUR 37 0.6600 EUR 75 0.5000 EUR 125 0.4132 EUR 175 0.3696 EUR 250 0.3256 EUR 350 0.2842 EUR 450 0.2464 EUR Compression spring Buy Product image Compression spring D-263N Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-263N Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2.2 mm Wire diameter Di mm Inner coil diameter D 12.8 mm Mean coil diameter De 15 mm Outer coil diameter Dd 10.1 mm maximum diameter of mandrel Dh 15.7 mm minimum diameter of bush L0 20.8 mm unstressed spring length Lk mm buckling length Fn 245.118 N maximum force in static use Ln 13.26 mm Minimum length in static use sn 7.54 mm Maximum spring deflection in static use Fndyn 226.292 N maximum force in dynamic use Lndyn 13.84 mm Minimum length in dynamic use shdyn 3.07 mm Maximum stroke in dynamic use S 5.314 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 32.513 N/mm Spring rate Weight 6.6457 g weight of one spring Fntol 20.73 N (+/-) tolerance of maximum force in static use Fndtol 20.45 N (+/-) tolerance of maximum dynamic force Detol 0.3 mm (+/-) tolerances of outer coil diameter L0tol 0.52 mm (+/-) tolerance of unstressed spring length Price group G - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-263N Spring steel Ø 2.2 x 12.8 x 20.8 mm Datasheet download pdf file Metal spring characteristic Compression spring D-263N Spring steel Ø 2.2 x 12.8 x 20.8 mm Metal spring characteristic download pdf file CAD data Compression spring D-263N Spring steel Ø 2.2 x 12.8 x 20.8 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-263N Spring steel Ø 2.2 x 12.8 x 20.8 mm force-path-calculation Compression spring D-263N Inquiry formular Compression spring D-263N Spring steel Ø 2.2 x 12.8 x 20.8 mm Inquiry formular Compression spring D-263N Similar compression springs to Compression spring D-263N Spring steel Ø 2.2 x 12.8 x 20.8 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-263N EN 10270-1 2.2 15 20.8 245.118 13.26 7.54 3.5 32.513 100.0 | 100.0 | 100.0 | 100.0 VD-263N 1.4310 2.2 15 20.8 210.531 13.26 7.54 3.5 27.925 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-207K 13.8 23 4.264 EN 10270-1 35.354 14.71 8.29 49.8 | 83.5 | 52.7 | 13.1 D-207J-01 16.5 23.3 4.366 EN 10270-1 59.979 9.56 13.74 45.3 | 82.8 | 39.7 | 13.4 D-206E 15 25.8 4.445 EN 10270-1 75.197 8.88 16.92 44.2 | 81.4 | 37.6 | 13.7 D-207 13.4 23 4.53 EN 10270-1 53.126 11.27 11.73 46.0 | 81.1 | 43.0 | 13.9 D-217A-12 17 22 6.647 EN 10270-1 88.743 8.65 13.35 50.7 | 85.2 | 46.3 | 20.4 D-207J-30 14 20.5 7.545 EN 10270-1 84.334 9.32 11.18 53.6 | 86.7 | 50.9 | 23.2 D-218 14.1 24 9.767 EN 10270-1 133.316 10.35 13.65 56.4 | 84.5 | 54.8 | 30.0 D-247D-30 18 21.5 15.918 EN 10270-1 183.375 9.98 11.52 69.8 | 90.3 | 70.1 | 49.0 D-233T-14 13 19 16.916 EN 10270-1 101.833 12.98 6.02 66.4 | 86.6 | 60.7 | 52.0 D-252A-02 14.8 25 17.272 EN 10270-1 182.17 14.45 10.55 72.3 | 90.9 | 72.9 | 53.1 D-253 14.5 22.5 23.845 EN 10270-1 247.741 12.11 10.39 84.1 | 93.3 | 85.8 | 73.3 D-257B 14 19.6 26.951 EN 10270-1 202.726 12.08 7.52 89.0 | 92.8 | 91.2 | 82.9 D-252A-32 15 17 26.979 EN 10270-1 178.061 10.4 6.6 84.7 | 90.9 | 80.1 | 83.0 D-263V-10 15.2 25 29.304 EN 10270-1 149.94 19.88 5.12 81.9 | 91.2 | 64.5 | 90.1 D-263N 15 20.8 32.513 EN 10270-1 245.118 13.26 7.54 100.0 | 100.0 | 100.0 | 100.0 D-284 15 22 58.214 EN 10270-1 410.229 14.95 7.05 75.6 | 94.2 | 76.6 | 55.9 D-283B 15 19 58.214 EN 10270-1 235.586 14.95 4.05 74.6 | 93.1 | 74.9 | 55.9 D-283A-12 15.5 17 72.453 EN 10270-1 352.847 12.13 4.87 66.9 | 88.8 | 67.0 | 44.9 D-288T-02 15 25 76.632 EN 10270-1 397.043 19.82 5.18 65.0 | 87.3 | 65.2 | 42.4 D-288B 13 18.8 98.218 EN 10270-1 387.321 14.86 3.94 59.7 | 88.4 | 57.8 | 33.1 D-313AA 17 22 116.135 EN 10270-1 344.637 19.03 2.97 55.7 | 83.8 | 55.3 | 28.0 D-288U 14 20.5 127.344 EN 10270-1 494.705 16.62 3.88 55.4 | 90.2 | 50.5 | 25.5 D-288Z-02 15.5 25 140.988 EN 10270-1 867.074 18.85 6.15 53.9 | 83.6 | 54.9 | 23.1 Number of similar metal springs: 22 Customs tariff number: 73202081; Compression spring D-263N Country of origin: DE, German; Compression spring D-263N Product image - Compression springs D-263N QR-Code: Compression spring D-263N
