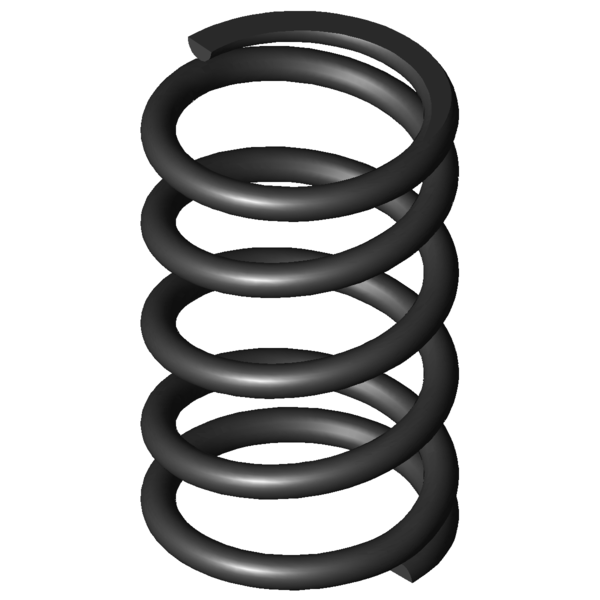

Home » Products » Compression springs » d-274 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-274 Spring steel Ø 2.5 x 20 x 36 mm Scaled prices - Compression spring D-274 Quantity Single price [EUR] 1 5.0100 EUR 2 3.5300 EUR 3 3.3700 EUR 7 2.1400 EUR 17 1.0400 EUR 37 0.6600 EUR 75 0.5000 EUR 125 0.4132 EUR 175 0.3696 EUR 250 0.3256 EUR 350 0.2842 EUR 450 0.2464 EUR Compression spring Buy Product image Compression spring D-274 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-274 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2.5 mm Wire diameter Di mm Inner coil diameter D 20 mm Mean coil diameter De 22.5 mm Outer coil diameter Dd 16.8 mm maximum diameter of mandrel Dh 23.3 mm minimum diameter of bush L0 36 mm unstressed spring length Lk mm buckling length Fn 291.853 N maximum force in static use Ln 15.47 mm Minimum length in static use sn 20.54 mm Maximum spring deflection in static use Fndyn 244.455 N maximum force in dynamic use Lndyn 18.8 mm Minimum length in dynamic use shdyn 6.37 mm Maximum stroke in dynamic use S 9.571 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 14.212 N/mm Spring rate Weight 13.4089 g weight of one spring Fntol 16.41 N (+/-) tolerance of maximum force in static use Fndtol 16.22 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 0.85 mm (+/-) tolerance of unstressed spring length Price group G - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-274 Spring steel Ø 2.5 x 20 x 36 mm Datasheet download pdf file Metal spring characteristic Compression spring D-274 Spring steel Ø 2.5 x 20 x 36 mm Metal spring characteristic download pdf file CAD data Compression spring D-274 Spring steel Ø 2.5 x 20 x 36 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-274 Spring steel Ø 2.5 x 20 x 36 mm force-path-calculation Compression spring D-274 Inquiry formular Compression spring D-274 Spring steel Ø 2.5 x 20 x 36 mm Inquiry formular Compression spring D-274 Similar compression springs to Compression spring D-274 Spring steel Ø 2.5 x 20 x 36 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-274 EN 10270-1 2.5 22.5 36 291.853 15.47 20.54 3.5 14.212 100.0 | 100.0 | 100.0 | 100.0 VD-274 1.4310 2.5 22.5 36 250.671 15.47 20.54 3.5 12.207 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-145DG 21 31.4 0.232 EN 10270-1 4.642 11.35 20.05 41.6 | 73.5 | 49.6 | 1.6 D-206D-12 20.4 40 1.63 EN 10270-1 49.657 9.54 30.46 44.2 | 78.9 | 42.2 | 11.5 D-207JQ 22 33.3 1.71 EN 10270-1 39.432 10.25 23.05 48.9 | 83.4 | 51.3 | 12.0 D-207J-70 20 38 2.327 EN 10270-1 65.234 9.97 28.03 48.5 | 81.2 | 47.8 | 16.4 D-233E-10 20 40 3.144 EN 10270-1 80.003 14.55 25.45 53.0 | 83.0 | 54.1 | 22.1 D-232K 20 34.1 5.068 EN 10270-1 114.567 11.5 22.6 62.0 | 85.2 | 65.1 | 35.7 D-239B 22 36.7 5.821 EN 10270-1 139.423 12.75 23.95 66.6 | 92.0 | 66.8 | 41.0 D-240 22 41 5.821 EN 10270-1 156.014 14.2 26.8 64.8 | 88.5 | 65.0 | 41.0 D-263J 24 39.2 6.581 EN 10270-1 165.825 14 25.2 68.9 | 91.2 | 69.2 | 46.3 D-274A 22.5 40 9.044 EN 10270-1 167.817 21.45 18.56 78.1 | 96.7 | 73.9 | 63.6 D-273A-02 24 37.5 11.44 EN 10270-1 250.547 15.6 21.9 89.0 | 96.6 | 89.8 | 80.5 D-288F 22.7 34 12.305 EN 10270-1 135.878 22.96 11.04 77.4 | 95.4 | 50.2 | 86.6 D-274 22.5 36 14.212 EN 10270-1 291.853 15.47 20.54 100.0 | 100.0 | 100.0 | 100.0 D-278C 19.5 35 14.727 EN 10270-1 205.021 21.08 13.92 86.7 | 94.6 | 69.0 | 96.5 D-288Q 20 39.5 22.374 EN 10270-1 359.967 23.41 16.09 77.7 | 89.8 | 79.7 | 63.5 D-304A 23.2 42 24.278 EN 10270-1 369.24 26.79 15.21 74.0 | 86.9 | 76.5 | 58.5 D-288Z-51 21 41.4 25.726 EN 10270-1 420.852 25.04 16.36 72.5 | 87.9 | 74.5 | 55.2 D-288Z-56 20 39.5 27.993 EN 10270-1 359.238 26.67 12.83 70.1 | 87.8 | 71.9 | 50.7 D-288X-04 19.4 38 35.645 EN 10270-1 541.8 22.8 15.2 64.3 | 89.1 | 63.9 | 39.9 D-288Z-30 21.5 30 37.237 EN 10270-1 441.293 18.15 11.85 62.5 | 87.4 | 61.9 | 38.2 D-304 23.2 33.5 38.151 EN 10270-1 538.84 19.38 14.12 62.7 | 89.4 | 61.5 | 37.2 D-313K 25 33.3 49.885 EN 10270-1 577.274 21.73 11.57 55.3 | 84.0 | 53.4 | 28.5 D-313A-04 19.5 38 51.667 EN 10270-1 556.917 27.22 10.78 55.2 | 85.7 | 52.4 | 27.5 D-334A-02 27 37 61.243 EN 10270-1 790.646 24.09 12.91 51.4 | 81.0 | 49.9 | 23.2 D-335 24 33.5 93.143 EN 10270-1 891.843 23.93 9.58 46.0 | 83.1 | 39.7 | 15.3 D-339A-02 21 40 96.516 EN 10270-1 695.293 32.8 7.2 45.1 | 81.9 | 38.5 | 14.7 D-313P 18 36.8 104.19 EN 10270-1 765.257 29.46 7.34 44.3 | 82.4 | 36.9 | 13.6 D-339R-05 27 37 104.786 EN 10270-1 1056.24 26.92 10.08 43.5 | 78.7 | 38.4 | 13.6 Number of similar metal springs: 27 Customs tariff number: 73202081; Compression spring D-274 Country of origin: DE, German; Compression spring D-274 Product image - Compression springs D-274 QR-Code: Compression spring D-274
