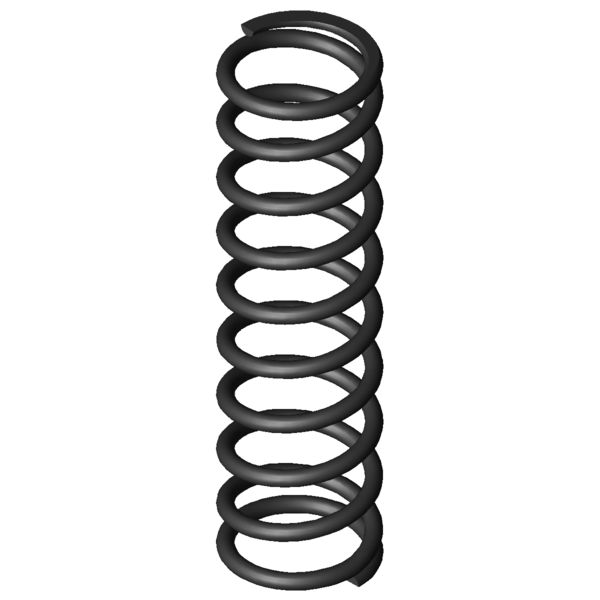

Home » Products » Compression springs » d-276 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-276 Spring steel Ø 2.5 x 20 x 81.5 mm Scaled prices - Compression spring D-276 Quantity Single price [EUR] 1 5.1100 EUR 2 3.6000 EUR 3 3.4300 EUR 7 2.2200 EUR 17 1.1200 EUR 37 0.7400 EUR 75 0.5500 EUR 125 0.4570 EUR 175 0.4069 EUR 250 0.3567 EUR 350 0.3095 EUR 450 0.2652 EUR Compression spring Buy Product image Compression spring D-276 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-276 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2.5 mm Wire diameter Di mm Inner coil diameter D 20 mm Mean coil diameter De 22.5 mm Outer coil diameter Dd 16.8 mm maximum diameter of mandrel Dh 23.3 mm minimum diameter of bush L0 81.5 mm unstressed spring length Lk mm buckling length Fn 292.61 N maximum force in static use Ln 31.5 mm Minimum length in static use sn 50 mm Maximum spring deflection in static use Fndyn 242.866 N maximum force in dynamic use Lndyn 40 mm Minimum length in dynamic use shdyn 15.58 mm Maximum stroke in dynamic use S 9.294 mm pitch of spring n 8.5 pc. number of active coils nt pc. total number of coils R 5.852 N/mm Spring rate Weight 25.5988 g weight of one spring Fntol 14.11 N (+/-) tolerance of maximum force in static use Fndtol 13.93 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 1.65 mm (+/-) tolerance of unstressed spring length Price group H - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-276 Spring steel Ø 2.5 x 20 x 81.5 mm Datasheet download pdf file Metal spring characteristic Compression spring D-276 Spring steel Ø 2.5 x 20 x 81.5 mm Metal spring characteristic download pdf file CAD data Compression spring D-276 Spring steel Ø 2.5 x 20 x 81.5 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-276 Spring steel Ø 2.5 x 20 x 81.5 mm force-path-calculation Compression spring D-276 Inquiry formular Compression spring D-276 Spring steel Ø 2.5 x 20 x 81.5 mm Inquiry formular Compression spring D-276 Similar compression springs to Compression spring D-276 Spring steel Ø 2.5 x 20 x 81.5 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-276 EN 10270-1 2.5 22.5 81.5 292.61 31.5 50 8.5 5.852 100.0 | 100.0 | 100.0 | 100.0 VD-276 1.4310 2.5 22.5 81.5 255.594 30.65 50.85 8.5 5.026 92.9 | 100.0 | 92.8 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-206D-16 20.4 85 0.671 EN 10270-1 44.183 19.18 65.82 46.0 | 80.8 | 45.5 | 11.5 D-207JS 22 76.2 0.704 EN 10270-1 39.161 20.6 55.6 49.1 | 83.8 | 51.7 | 12.0 D-207J-72 20 80 0.958 EN 10270-1 57.565 19.93 60.07 50.1 | 82.3 | 51.5 | 16.4 D-209 21.6 73.5 1.517 EN 10270-1 83.304 18.6 54.9 56.4 | 83.4 | 59.8 | 25.9 D-232M 20 86.3 1.867 EN 10270-1 114.407 25.03 61.27 59.1 | 85.1 | 60.4 | 31.9 D-239A-20 23 94 2.071 EN 10270-1 141.817 25.51 68.49 61.4 | 88.2 | 60.7 | 35.4 D-246 21 85 2.263 EN 10270-1 124.609 29.94 55.06 65.0 | 89.7 | 66.7 | 38.7 D-241A 22 79 2.397 EN 10270-1 128.842 25.25 53.75 67.0 | 91.6 | 68.5 | 41.0 D-242 22 94 2.397 EN 10270-1 156.288 28.8 65.2 64.7 | 88.2 | 65.0 | 41.0 D-247D-08 20 77.5 2.541 EN 10270-1 118.472 30.87 46.63 66.1 | 88.0 | 66.9 | 43.4 D-276A 22.5 93 3.685 EN 10270-1 175.521 45.37 47.64 78.8 | 95.9 | 77.6 | 63.0 D-263M-03 19 80 4.026 EN 10270-1 172.913 37.06 42.94 77.2 | 90.2 | 72.5 | 68.8 D-263VD 20 87.6 4.113 EN 10270-1 200.796 38.78 48.82 64.2 | 87.4 | 68.0 | 37.2 D-273A-10 24 85 5.339 EN 10270-1 272.016 34.05 50.95 94.4 | 96.5 | 95.5 | 91.2 D-276 22.5 81.5 5.852 EN 10270-1 292.61 31.5 50 100.0 | 100.0 | 100.0 | 100.0 D-306A 23.2 92 9.891 EN 10270-1 351.616 56.45 35.55 74.7 | 87.9 | 77.2 | 59.2 D-288Z-53 21 86.3 11.319 EN 10270-1 419.102 49.28 37.03 71.3 | 90.4 | 71.9 | 51.7 D-288Z-40 19.5 85 12.669 EN 10270-1 369.625 55.82 29.18 81.9 | 93.2 | 65.3 | 87.3 D-308A-03 22 82 13.98 EN 10270-1 464.33 48.79 33.21 66.1 | 91.8 | 64.7 | 41.9 D-306 23.2 74 15.709 EN 10270-1 566.892 37.91 36.09 62.6 | 88.6 | 61.9 | 37.3 D-313M-02 25 86 15.872 EN 10270-1 526.029 52.86 33.14 60.9 | 84.7 | 61.0 | 36.9 D-308A-02 22 70 16.923 EN 10270-1 483.755 41.41 28.59 60.2 | 87.3 | 58.8 | 34.6 D-313M 25 78 18.379 EN 10270-1 576.486 46.63 31.37 57.9 | 85.0 | 56.7 | 31.8 D-312 19.2 83.5 20.864 EN 10270-1 659.302 51.9 31.6 56.3 | 87.0 | 53.8 | 28.0 D-337 24 72 38.353 EN 10270-1 971.288 46.68 25.33 45.7 | 81.5 | 40.4 | 15.3 D-339A-05 21 85 42.467 EN 10270-1 876.942 64.35 20.65 45.0 | 83.9 | 37.3 | 13.8 D-339D-10 20 77 60.64 EN 10270-1 1321.464 55.21 21.79 41.5 | 82.0 | 32.9 | 9.6 D-339U 22 70.9 82.05 EN 10270-1 1140.926 56.99 13.91 38.0 | 80.1 | 26.7 | 7.1 D-339R-01 22.5 70 95.508 EN 10270-1 1671.387 52.5 17.5 37.6 | 80.5 | 26.3 | 6.1 Number of similar metal springs: 28 Customs tariff number: 73202081; Compression spring D-276 Country of origin: DE, German; Compression spring D-276 Product image - Compression springs D-276 QR-Code: Compression spring D-276
