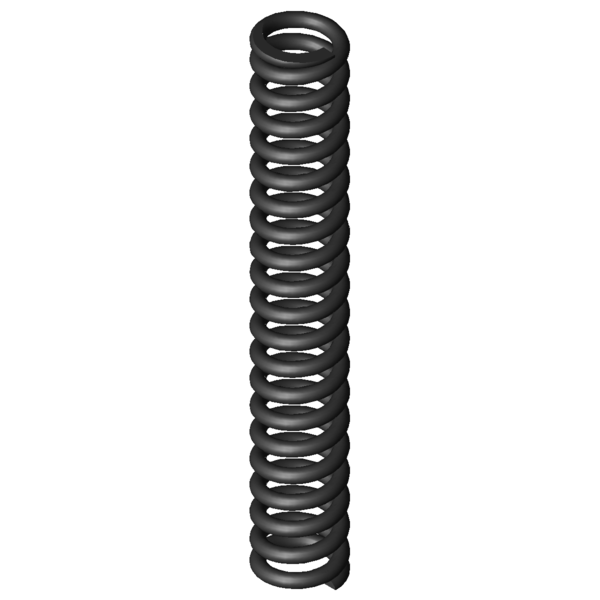

Home » Products » Compression springs » d-313a-12 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-313A-12 Spring steel Ø 3.3 x 16.2 x 127 mm Scaled prices - Compression spring D-313A-12 Quantity Single price [EUR] 1 5.9700 EUR 2 4.2100 EUR 3 4.0100 EUR 7 3.2100 EUR 17 1.7700 EUR 37 1.3500 EUR 75 1.1900 EUR 125 0.9703 EUR 175 0.8890 EUR 250 0.8202 EUR 350 0.7705 EUR 450 0.7136 EUR Compression spring Buy Product image Compression spring D-313A-12 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-313A-12 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 3.3 mm Wire diameter Di mm Inner coil diameter D 16.2 mm Mean coil diameter De 19.5 mm Outer coil diameter Dd 12.1 mm maximum diameter of mandrel Dh 20.3 mm minimum diameter of bush L0 127 mm unstressed spring length Lk 101 mm buckling length Fn 735.305 N maximum force in static use Ln 77.84 mm Minimum length in static use sn 49.16 mm Maximum spring deflection in static use Fndyn 598.253 N maximum force in dynamic use Lndyn 87 mm Minimum length in dynamic use shdyn 15.05 mm Maximum stroke in dynamic use S 6.511 mm pitch of spring n 19 pc. number of active coils nt pc. total number of coils R 14.956 N/mm Spring rate Weight 72.2574 g weight of one spring Fntol 46.35 N (+/-) tolerance of maximum force in static use Fndtol 45.4 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 2.34 mm (+/-) tolerance of unstressed spring length Price group P - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-313A-12 Spring steel Ø 3.3 x 16.2 x 127 mm Datasheet download pdf file Metal spring characteristic Compression spring D-313A-12 Spring steel Ø 3.3 x 16.2 x 127 mm Metal spring characteristic download pdf file CAD data Compression spring D-313A-12 Spring steel Ø 3.3 x 16.2 x 127 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-313A-12 Spring steel Ø 3.3 x 16.2 x 127 mm force-path-calculation Compression spring D-313A-12 Inquiry formular Compression spring D-313A-12 Spring steel Ø 3.3 x 16.2 x 127 mm Inquiry formular Compression spring D-313A-12 Similar compression springs to Compression spring D-313A-12 Spring steel Ø 3.3 x 16.2 x 127 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-313A-12 EN 10270-1 3.3 19.5 127 735.305 77.84 49.16 19 14.956 93.7 | 96.9 | 94.7 | 89.5 VD-313A-12 1.4310 3.3 19.5 127 631.55 77.84 49.16 19 12.846 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-247 21 115 1.76 EN 10270-1 136.68 37.36 77.64 74.3 | 91.0 | 76.2 | 55.8 D-263VE 20 127 2.779 EN 10270-1 199.574 55.18 71.82 49.0 | 85.9 | 44.5 | 16.6 D-263M-05 19 106 3.05 EN 10270-1 178.428 47.51 58.49 51.3 | 85.4 | 50.1 | 18.2 D-283A 18.5 130 4.318 EN 10270-1 257.652 70.33 59.67 59.0 | 89.4 | 58.7 | 28.9 D-278D 19.5 125 4.378 EN 10270-1 288.607 59.08 65.92 56.2 | 89.3 | 53.2 | 26.2 D-283 18.5 130 5.252 EN 10270-1 366.04 60.3 69.7 61.6 | 89.4 | 60.2 | 35.1 D-288Z-54 21 124 7.648 EN 10270-1 412.647 70.05 53.95 69.0 | 92.2 | 69.0 | 45.8 D-288X-12 19.4 127 9.037 EN 10270-1 542.201 67 60 73.4 | 92.6 | 73.5 | 54.1 D-288X-11 19.4 115 10.184 EN 10270-1 540.781 61.9 53.1 78.3 | 95.8 | 78.3 | 60.9 D-288X-10 19.4 102 11.062 EN 10270-1 529.912 54.1 47.9 80.1 | 92.0 | 82.1 | 66.2 D-313A 19.2 120 11.591 EN 10270-1 367.438 88.3 31.7 75.5 | 97.1 | 60.1 | 69.3 D-313A-13 19.5 152 12.491 EN 10270-1 750.754 91.9 60.1 89.3 | 94.5 | 89.9 | 83.5 D-313 19.2 120 14.097 EN 10270-1 652.141 73.74 46.26 91.1 | 97.1 | 91.9 | 84.3 D-308B 21.2 120 14.653 EN 10270-1 637.425 76.5 43.5 91.3 | 94.9 | 91.4 | 87.7 D-313A-12 19.5 127 14.956 EN 10270-1 735.305 77.84 49.16 93.7 | 96.9 | 94.7 | 89.5 D-313A-11 19.5 115 16.716 EN 10270-1 746.566 70.34 44.66 100.0 | 100.0 | 100.0 | 100.0 D-313A-10 19.5 102 18.334 EN 10270-1 683.585 64.71 37.29 91.7 | 96.2 | 87.5 | 91.2 D-339A-06 21 125 28.694 EN 10270-1 964.114 91.4 33.6 71.9 | 91.3 | 72.3 | 52.1 Number of similar metal springs: 17 Customs tariff number: 73202081; Compression spring D-313A-12 Country of origin: DE, German; Compression spring D-313A-12 Product image - Compression springs D-313A-12 QR-Code: Compression spring D-313A-12
