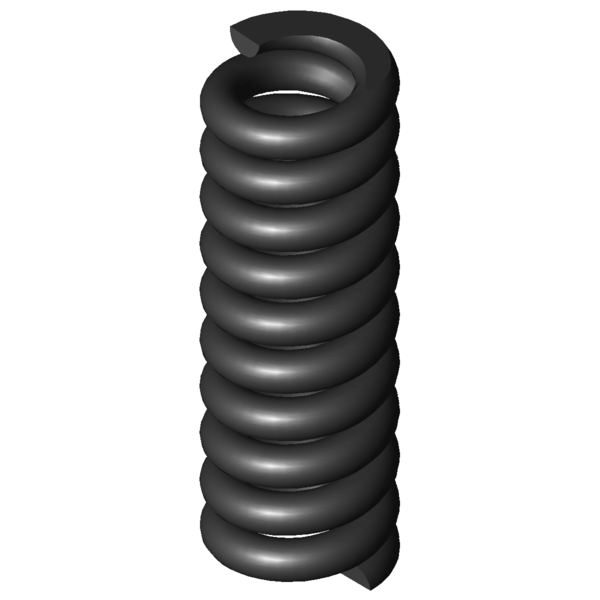

Home » Products » Compression springs » d-339e-03 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-339E-03 Spring steel Ø 4 x 14 x 53 mm Scaled prices - Compression spring D-339E-03 Quantity Single price [EUR] 1 12.7100 EUR 2 10.1200 EUR 3 5.6200 EUR 7 3.4700 EUR 17 2.1700 EUR 37 1.8100 EUR 75 1.7400 EUR 125 1.7081 EUR 175 1.7063 EUR 250 1.6746 EUR 350 1.6471 EUR Compression spring Buy Product image Compression spring D-339E-03 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-339E-03 Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 4 mm Wire diameter Di mm Inner coil diameter D 14 mm Mean coil diameter De 18 mm Outer coil diameter Dd 9.3 mm maximum diameter of mandrel Dh 19.5 mm minimum diameter of bush L0 53 mm unstressed spring length Lk mm buckling length Fn 779.946 N maximum force in static use Ln 46.02 mm Minimum length in static use sn 6.98 mm Maximum spring deflection in static use Fndyn 555.726 N maximum force in dynamic use Lndyn 48.03 mm Minimum length in dynamic use shdyn 4.92 mm Maximum stroke in dynamic use S 5.765 mm pitch of spring n 8.5 pc. number of active coils nt pc. total number of coils R 111.816 N/mm Spring rate Weight 45.873 g weight of one spring Fntol 117.06 N (+/-) tolerance of maximum force in static use Fndtol 120.8 N (+/-) tolerance of maximum dynamic force Detol 0.5 mm (+/-) tolerances of outer coil diameter L0tol 0.9 mm (+/-) tolerance of unstressed spring length Price group AC - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-339E-03 Spring steel Ø 4 x 14 x 53 mm Datasheet download pdf file Metal spring characteristic Compression spring D-339E-03 Spring steel Ø 4 x 14 x 53 mm Metal spring characteristic download pdf file CAD data Compression spring D-339E-03 Spring steel Ø 4 x 14 x 53 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-339E-03 Spring steel Ø 4 x 14 x 53 mm force-path-calculation Compression spring D-339E-03 Inquiry formular Compression spring D-339E-03 Spring steel Ø 4 x 14 x 53 mm Inquiry formular Compression spring D-339E-03 Similar compression springs to Compression spring D-339E-03 Spring steel Ø 4 x 14 x 53 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-339E-03 EN 10270-1 4 18 53 779.946 46.02 6.98 8.5 111.816 100.0 | 100.0 | 100.0 | 100.0 VD-339E-03 1.4310 4 18 53 669.892 46.02 6.98 8.5 96.038 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-263M-01 19 57 5.921 EN 10270-1 179.971 26.61 30.39 36.4 | 80.9 | 23.0 | 5.3 D-249 18 45 7.235 EN 10270-1 195.357 18 27 36.7 | 78.3 | 25.4 | 6.5 D-283A-05 18 45 10.178 EN 10270-1 97.821 35.39 9.61 44.7 | 82.5 | 42.6 | 9.1 D-263P-01 15 53 10.838 EN 10270-1 238.615 30.98 22.02 40.1 | 79.4 | 31.1 | 9.7 D-281 18.5 61 11.43 EN 10270-1 357.983 29.68 31.32 48.3 | 81.5 | 45.2 | 18.3 D-283A-10 16.5 52 19.337 EN 10270-1 417.286 30.42 21.58 48.1 | 84.1 | 42.9 | 17.3 D-288X-06 19.4 51 24.677 EN 10270-1 542.897 29 22 53.3 | 87.2 | 50.7 | 22.1 D-310A 19.2 54 27.453 EN 10270-1 357.433 40.98 13.02 55.0 | 90.6 | 49.7 | 24.6 D-288ZD 17.5 50 30.075 EN 10270-1 401.618 36.65 13.35 55.9 | 88.9 | 51.9 | 26.9 D-288ZC 17.5 45 33.834 EN 10270-1 397.859 33.24 11.76 57.1 | 85.7 | 55.2 | 30.3 D-288Z-62 17 49.8 35.379 EN 10270-1 527.753 34.88 14.92 58.9 | 87.8 | 57.2 | 31.7 D-313A-06 19.5 51 35.521 EN 10270-1 511.708 36.59 14.41 59.7 | 90.3 | 57.0 | 31.8 D-288Z-06 15.5 51 50.611 EN 10270-1 547.97 40.17 10.83 66.4 | 86.6 | 67.4 | 45.3 D-313Q 18 58.3 60.321 EN 10270-1 763.612 45.64 12.66 74.7 | 93.6 | 76.5 | 54.0 D-339E-03 18 53 111.816 EN 10270-1 779.946 46.02 6.98 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 14 Customs tariff number: 73202081; Compression spring D-339E-03 Country of origin: DE, German; Compression spring D-339E-03 Product image - Compression springs D-339E-03 QR-Code: Compression spring D-339E-03
