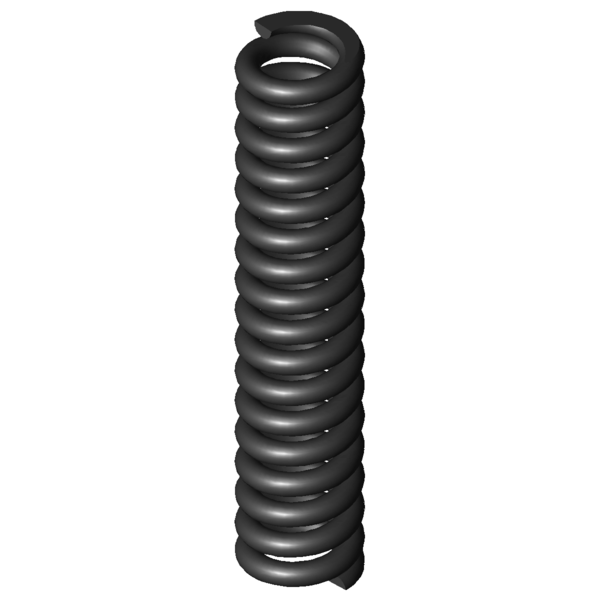

Home » Products » Compression springs » d-364r Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-364R Spring steel Ø 5.5 x 22.5 x 136 mm Scaled prices - Compression spring D-364R Quantity Single price [EUR] 1 13.5300 EUR 2 10.7800 EUR 3 6.2300 EUR 7 4.2800 EUR 17 2.7100 EUR 37 2.3100 EUR 75 2.2200 EUR 125 2.1813 EUR 175 2.1735 EUR 250 2.1481 EUR 350 2.0967 EUR Compression spring Buy Product image Compression spring D-364R Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-364R Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 5.5 mm Wire diameter Di mm Inner coil diameter D 22.5 mm Mean coil diameter De 28 mm Outer coil diameter Dd 16 mm maximum diameter of mandrel Dh 29 mm minimum diameter of bush L0 136 mm unstressed spring length Lk 82.2 mm buckling length Fn 1535.703 N maximum force in static use Ln 106.92 mm Minimum length in static use sn 29.08 mm Maximum spring deflection in static use Fndyn 1253.487 N maximum force in dynamic use Lndyn 112.26 mm Minimum length in dynamic use shdyn 15.72 mm Maximum stroke in dynamic use S 8.419 mm pitch of spring n 15.5 pc. number of active coils nt pc. total number of coils R 52.801 N/mm Spring rate Weight 232.3091 g weight of one spring Fntol 149 N (+/-) tolerance of maximum force in static use Fndtol 145 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 2.39 mm (+/-) tolerance of unstressed spring length Price group AG - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-364R Spring steel Ø 5.5 x 22.5 x 136 mm Datasheet download pdf file Metal spring characteristic Compression spring D-364R Spring steel Ø 5.5 x 22.5 x 136 mm Metal spring characteristic download pdf file CAD data Compression spring D-364R Spring steel Ø 5.5 x 22.5 x 136 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-364R Spring steel Ø 5.5 x 22.5 x 136 mm force-path-calculation Compression spring D-364R Inquiry formular Compression spring D-364R Spring steel Ø 5.5 x 22.5 x 136 mm Inquiry formular Compression spring D-364R Similar compression springs to Compression spring D-364R Spring steel Ø 5.5 x 22.5 x 136 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-364R EN 10270-1 5.5 28 136 1535.703 106.92 29.08 15.5 52.801 100.0 | 100.0 | 100.0 | 100.0 VD-364R 1.4310 5.5 28 136 1319.009 106.92 29.08 15.5 45.35 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-271 27.5 115 2.996 EN 10270-1 233.713 37 78 36.0 | 76.1 | 26.3 | 5.7 D-288N 30 118 3.275 EN 10270-1 259.987 38.63 79.37 36.7 | 77.0 | 26.8 | 6.2 D-302A 28.2 135 3.696 EN 10270-1 214.562 76.94 58.06 41.5 | 85.6 | 32.0 | 7.0 D-288Z-34 28 142 4.225 EN 10270-1 383.811 51.16 90.84 40.0 | 83.4 | 28.5 | 8.0 D-288Z-44 27 117 4.775 EN 10270-1 315.892 50.85 66.15 40.1 | 79.0 | 32.3 | 9.0 D-301A 28.2 113 5.064 EN 10270-1 279.165 57.88 55.12 41.7 | 80.2 | 35.5 | 9.6 D-302 28.2 135 5.469 EN 10270-1 442.679 54.06 80.94 42.8 | 85.6 | 32.4 | 10.4 D-333A 29 130 9.022 EN 10270-1 327.184 93.74 36.26 52.0 | 88.3 | 50.8 | 17.1 D-313J-10 28.6 109 9.523 EN 10270-1 507.228 55.73 53.27 47.7 | 81.2 | 43.8 | 18.0 D-313N 25 123 11.264 EN 10270-1 579.688 71.54 51.46 50.1 | 81.7 | 47.1 | 21.3 D-329B-05 30 125 12.365 EN 10270-1 756.24 63.84 61.16 52.6 | 86.0 | 48.4 | 23.4 D-333 29 130 13.353 EN 10270-1 855.528 65.93 64.07 54.7 | 88.3 | 50.5 | 25.3 D-334A-04 27 112 17.148 EN 10270-1 797.726 65.48 46.52 57.8 | 83.8 | 57.2 | 32.5 D-363 30 125 32.6 EN 10270-1 1431.344 81.09 43.91 77.8 | 92.1 | 79.7 | 61.7 D-364R 28 136 52.801 EN 10270-1 1535.703 106.92 29.08 100.0 | 100.0 | 100.0 | 100.0 D-364R-13 32 125 65.321 EN 10270-1 2296.468 89.84 35.16 82.0 | 90.4 | 74.8 | 80.9 D-364RB 28 125 66.03 EN 10270-1 1903.357 96.17 28.83 88.9 | 96.7 | 89.9 | 80.0 D-389AA 30 150 96.638 EN 10270-1 3041.893 118.52 31.48 71.9 | 89.5 | 71.4 | 54.7 Number of similar metal springs: 17 Customs tariff number: 73202081; Compression spring D-364R Country of origin: DE, German; Compression spring D-364R Product image - Compression springs D-364R QR-Code: Compression spring D-364R
