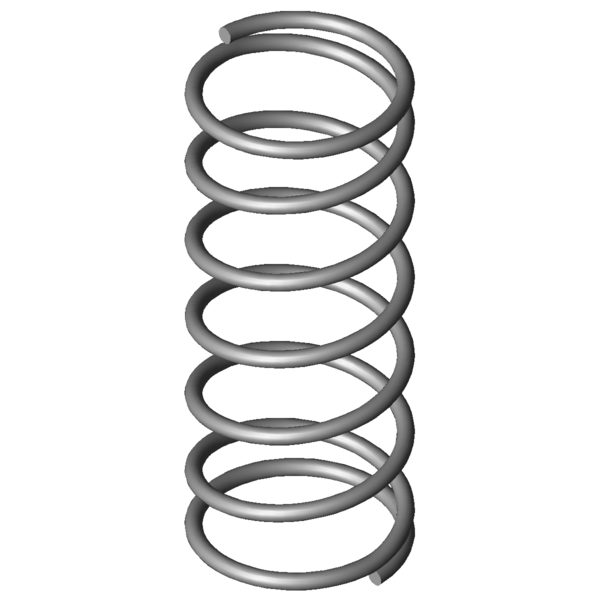

Home » Products » Compression springs » vd-016b Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-016B Stainless steel Ø 0.25 x 2.95 x 8 mm Scaled prices - Compression spring VD-016B Quantity Single price [EUR] 1 4.8500 EUR 2 3.4200 EUR 3 3.2600 EUR 7 1.8400 EUR 17 0.8300 EUR 37 0.5200 EUR 75 0.3400 EUR 125 0.2817 EUR 175 0.2192 EUR 250 0.1878 EUR 350 0.1452 EUR 450 0.1264 EUR Compression spring Buy Product image Compression spring VD-016B Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-016B Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 0.25 mm Wire diameter Di mm Inner coil diameter D 2.95 mm Mean coil diameter De 3.2 mm Outer coil diameter Dd 2.3 mm maximum diameter of mandrel Dh 3.5 mm minimum diameter of bush L0 8 mm unstressed spring length Lk mm buckling length Fn 1.289 N maximum force in static use Ln 2.67 mm Minimum length in static use sn 5.33 mm Maximum spring deflection in static use Fndyn 1.237 N maximum force in dynamic use Lndyn 2.89 mm Minimum length in dynamic use shdyn 3.02 mm Maximum stroke in dynamic use S 1.341 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 0.242 N/mm Spring rate Weight 0.027 g weight of one spring Fntol 0.17 N (+/-) tolerance of maximum force in static use Fndtol 0.17 N (+/-) tolerance of maximum dynamic force Detol 0.2 mm (+/-) tolerances of outer coil diameter L0tol 0.62 mm (+/-) tolerance of unstressed spring length Price group D - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-016B Stainless steel Ø 0.25 x 2.95 x 8 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-016B Stainless steel Ø 0.25 x 2.95 x 8 mm Metal spring characteristic download pdf file CAD data Compression spring VD-016B Stainless steel Ø 0.25 x 2.95 x 8 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-016B Stainless steel Ø 0.25 x 2.95 x 8 mm force-path-calculation Compression spring VD-016B Inquiry formular Compression spring VD-016B Stainless steel Ø 0.25 x 2.95 x 8 mm Inquiry formular Compression spring VD-016B Customs tariff number: 73202081; Compression spring VD-016B Country of origin: DE, German; Compression spring VD-016B Product image - Compression springs VD-016B QR-Code: Compression spring VD-016B
