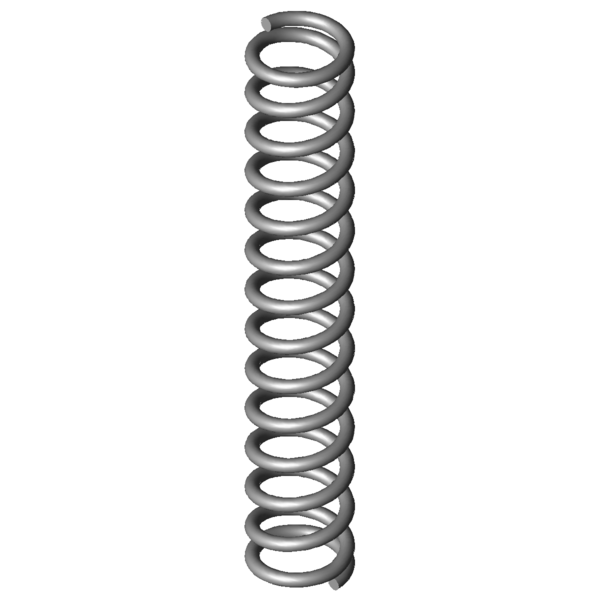

Home » Products » Compression springs » vd-027 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-027 Stainless steel Ø 0.3 x 1.9 x 13 mm Scaled prices - Compression spring VD-027 Quantity Single price [EUR] 1 4.8500 EUR 2 3.4200 EUR 3 3.2600 EUR 7 1.8400 EUR 17 0.8300 EUR 37 0.5200 EUR 75 0.3400 EUR 125 0.2817 EUR 175 0.2192 EUR 250 0.1878 EUR 350 0.1452 EUR 450 0.1264 EUR Compression spring Buy Product image Compression spring VD-027 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-027 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 0.3 mm Wire diameter Di mm Inner coil diameter D 1.9 mm Mean coil diameter De 2.2 mm Outer coil diameter Dd 1.3 mm maximum diameter of mandrel Dh 2.6 mm minimum diameter of bush L0 13 mm unstressed spring length Lk 9.18 mm buckling length Fn 6.035 N maximum force in static use Ln 5.7 mm Minimum length in static use sn 7.3 mm Maximum spring deflection in static use Fndyn 4.464 N maximum force in dynamic use Lndyn 7.6 mm Minimum length in dynamic use shdyn 1.26 mm Maximum stroke in dynamic use S 0.98 mm pitch of spring n 12.5 pc. number of active coils nt pc. total number of coils R 0.827 N/mm Spring rate Weight 0.0484 g weight of one spring Fntol 0.46 N (+/-) tolerance of maximum force in static use Fndtol 0.45 N (+/-) tolerance of maximum dynamic force Detol 0.1 mm (+/-) tolerances of outer coil diameter L0tol 0.44 mm (+/-) tolerance of unstressed spring length Price group D - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-027 Stainless steel Ø 0.3 x 1.9 x 13 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-027 Stainless steel Ø 0.3 x 1.9 x 13 mm Metal spring characteristic download pdf file CAD data Compression spring VD-027 Stainless steel Ø 0.3 x 1.9 x 13 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-027 Stainless steel Ø 0.3 x 1.9 x 13 mm force-path-calculation Compression spring VD-027 Inquiry formular Compression spring VD-027 Stainless steel Ø 0.3 x 1.9 x 13 mm Inquiry formular Compression spring VD-027 Customs tariff number: 73202081; Compression spring VD-027 Country of origin: DE, German; Compression spring VD-027 Product image - Compression springs VD-027 QR-Code: Compression spring VD-027
