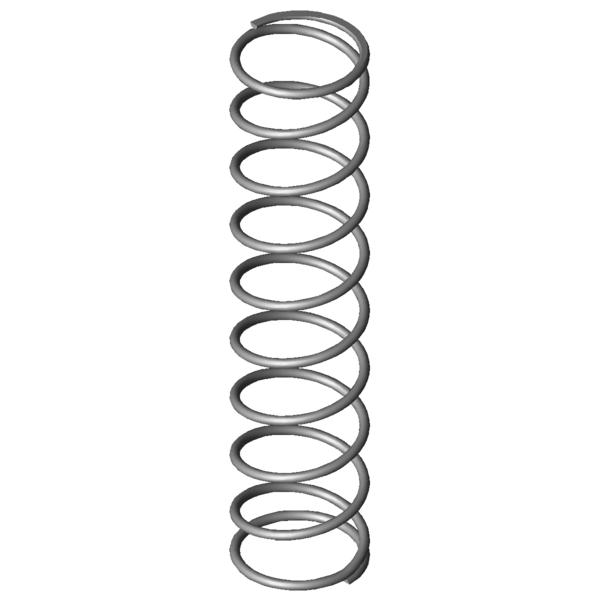

Home » Products » Compression springs » vd-066 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-066 Stainless steel Ø 0.5 x 6.3 x 30 mm Scaled prices - Compression spring VD-066 Quantity Single price [EUR] 1 4.9400 EUR 2 3.4800 EUR 3 3.3200 EUR 7 1.9900 EUR 17 1.0000 EUR 37 0.6100 EUR 75 0.4600 EUR 125 0.3945 EUR 175 0.3631 EUR 250 0.3193 EUR 350 0.2780 EUR 450 0.2212 EUR Compression spring Buy Product image Compression spring VD-066 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-066 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 0.5 mm Wire diameter Di mm Inner coil diameter D 6.3 mm Mean coil diameter De 6.8 mm Outer coil diameter Dd 5.4 mm maximum diameter of mandrel Dh 7.5 mm minimum diameter of bush L0 30 mm unstressed spring length Lk mm buckling length Fn 5.999 N maximum force in static use Ln 6.69 mm Minimum length in static use sn 23.31 mm Maximum spring deflection in static use Fndyn 5.813 N maximum force in dynamic use Lndyn 7.41 mm Minimum length in dynamic use shdyn 8.51 mm Maximum stroke in dynamic use S 3.471 mm pitch of spring n 8.5 pc. number of active coils nt pc. total number of coils R 0.257 N/mm Spring rate Weight 0.3225 g weight of one spring Fntol 0.52 N (+/-) tolerance of maximum force in static use Fndtol 0.52 N (+/-) tolerance of maximum dynamic force Detol 0.25 mm (+/-) tolerances of outer coil diameter L0tol 1.69 mm (+/-) tolerance of unstressed spring length Price group F - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-066 Stainless steel Ø 0.5 x 6.3 x 30 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-066 Stainless steel Ø 0.5 x 6.3 x 30 mm Metal spring characteristic download pdf file CAD data Compression spring VD-066 Stainless steel Ø 0.5 x 6.3 x 30 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-066 Stainless steel Ø 0.5 x 6.3 x 30 mm force-path-calculation Compression spring VD-066 Inquiry formular Compression spring VD-066 Stainless steel Ø 0.5 x 6.3 x 30 mm Inquiry formular Compression spring VD-066 Similar compression springs to Compression spring VD-066 Stainless steel Ø 0.5 x 6.3 x 30 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-066 1.4310 0.5 6.8 30 5.999 6.69 23.31 8.5 0.257 100.0 | 100.0 | 100.0 | 100.0 D-066 EN 10270-1 0.5 6.8 30 6.984 6.69 23.31 8.5 0.3 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-068A-04 6.5 35 0.203 1.4310 5.221 9.23 25.78 87.1 | 93.8 | 88.7 | 78.7 VD-068A-15 6 27.5 0.227 1.4310 3.901 10.29 17.21 83.6 | 93.3 | 69.4 | 88.1 VD-090U-24 7 35.5 0.234 1.4310 4.722 15.3 20.2 87.3 | 88.3 | 82.7 | 90.8 VD-073A 5.5 30 0.236 1.4310 4.124 12.56 17.44 85.8 | 93.6 | 71.8 | 91.9 VD-066 6.8 30 0.257 1.4310 5.999 6.69 23.31 100.0 | 100.0 | 100.0 | 100.0 VD-073 5.5 30 0.35 1.4310 7.416 8.81 21.19 84.4 | 93.6 | 85.9 | 73.5 VD-095D 7.9 31 0.422 1.4310 9.614 8.22 22.78 76.1 | 87.4 | 80.1 | 61.0 VD-090L 6 29.2 0.521 1.4310 11.237 7.62 21.58 71.5 | 92.2 | 73.0 | 49.4 VD-098 6.93 25.5 0.649 1.4310 11.379 7.95 17.55 63.7 | 87.5 | 64.0 | 39.7 VD-100A-01 6.4 33 0.683 1.4310 16.149 9.37 23.63 64.6 | 88.1 | 67.9 | 37.7 VD-131A 7.1 33 0.775 1.4310 10.648 19.26 13.74 58.0 | 83.1 | 57.6 | 33.2 VD-116 6.7 35 0.811 1.4310 18.994 11.57 23.43 60.8 | 85.2 | 65.5 | 31.7 VD-127E-04 8 28.8 1.13 1.4310 21.344 9.91 18.89 52.8 | 81.2 | 54.6 | 22.8 VD-131 7.1 33 1.147 1.4310 22.325 13.53 19.47 53.6 | 83.1 | 55.2 | 22.4 VD-117H-41 7 31 1.334 1.4310 25.949 11.55 19.45 53.1 | 86.9 | 53.3 | 19.3 VD-132B 6.4 28 1.633 1.4310 23.943 13.34 14.67 47.7 | 83.3 | 44.0 | 15.8 VD-143J 8 29 1.688 1.4310 28.698 12 17 47.1 | 79.1 | 46.9 | 15.2 VD-170A 7.3 30.5 1.892 1.4310 13.333 23.45 7.05 43.9 | 80.5 | 37.6 | 13.6 VD-143R 7.3 26.36 2.576 1.4310 40.102 10.8 15.56 43.2 | 78.9 | 40.9 | 10.0 VD-170 7.3 30.5 2.799 1.4310 39.209 16.49 14.01 42.5 | 80.5 | 37.7 | 9.2 Number of similar metal springs: 19 Customs tariff number: 73202081; Compression spring VD-066 Country of origin: DE, German; Compression spring VD-066 Product image - Compression springs VD-066 QR-Code: Compression spring VD-066
