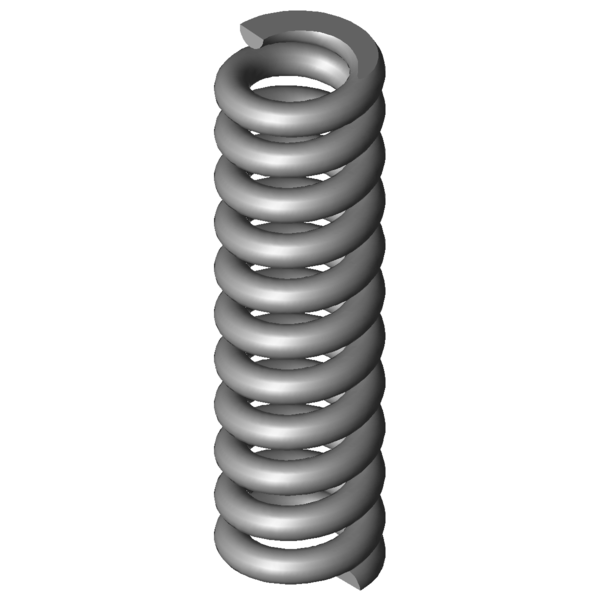

Home » Products » Compression springs » vd-115c Url teilen URL was copied to clipboard, successfully ! Overview Back to overview The Item has been added to your shopping cart. Compression spring VD-115C Stainless steel Ø 0.63 x 2.37 x 10.6 mm Scaled prices - Compression spring VD-115C Quantity Single price [EUR] 1 4.9400 EUR 2 3.4800 EUR 3 3.3200 EUR 7 1.9900 EUR 17 1.0000 EUR 37 0.6100 EUR 75 0.4600 EUR 125 0.3945 EUR 175 0.3631 EUR 250 0.3193 EUR 350 0.2780 EUR 450 0.2212 EUR Compression spring Buy Product image Compression spring VD-115C Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-115C Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 - N prestressed spring force L1 - mm Prestressed spring length s1 - mm Prestressed spring deflection F2 - N Loaded spring force L2 - mm Loaded spring length s2 - mm Loaded spring deflection d 0.63 mm Wire diameter Di - mm Inner coil diameter D 2.37 mm Mean coil diameter De 3 mm Outer coil diameter Dd 1.4 mm maximum diameter of mandrel Dh 3.3 mm minimum diameter of bush L0 10.6 mm unstressed spring length Lk mm buckling length Fn 28.659 N maximum force in static use Ln 7.97 mm Minimum length in static use sn 2.63 mm Maximum spring deflection in static use Fndyn 24.524 N maximum force in dynamic use Lndyn 8.35 mm Minimum length in dynamic use shdyn 0.82 mm Maximum stroke in dynamic use S 1.049 mm pitch of spring n 9.5 pc. number of active coils nt - pc. total number of coils R 10.899 N/mm Spring rate Weight 0.211 g weight of one spring Fntol 4.28 N (+/-) tolerance of maximum force in static use Fndtol 3.67 N (+/-) tolerance of maximum dynamic force Detol 0.15 mm (+/-) tolerances of outer coil diameter L0tol 0.53 mm (+/-) tolerance of unstressed spring length Price group F - price group F1tol - N (+/-) tolerance of prestressed spring force F2tol - N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-115C Stainless steel Ø 0.63 x 2.37 x 10.6 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-115C Stainless steel Ø 0.63 x 2.37 x 10.6 mm Metal spring characteristic download pdf file CAD data Compression spring VD-115C Stainless steel Ø 0.63 x 2.37 x 10.6 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-115C Stainless steel Ø 0.63 x 2.37 x 10.6 mm force-path-calculation Compression spring VD-115C Inquiry formular Compression spring VD-115C Stainless steel Ø 0.63 x 2.37 x 10.6 mm Inquiry formular Compression spring VD-115C Customs tariff number: 73202081; Compression spring VD-115C Country of origin: DE, German; Compression spring VD-115C Product image - Compression springs VD-115C QR-Code: Compression spring VD-115C
