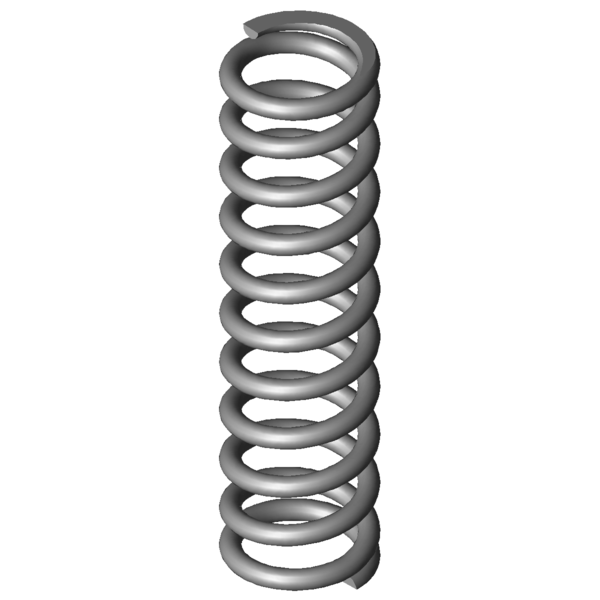

Home » Products » Compression springs » vd-117c Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-117C Stainless steel Ø 0.7 x 4.3 x 19 mm Scaled prices - Compression spring VD-117C Quantity Single price [EUR] 1 4.9400 EUR 2 3.4800 EUR 3 3.3200 EUR 7 1.9900 EUR 17 1.0000 EUR 37 0.6100 EUR 75 0.4600 EUR 125 0.3945 EUR 175 0.3631 EUR 250 0.3193 EUR 350 0.2780 EUR 450 0.2212 EUR Compression spring Buy Product image Compression spring VD-117C Quantity: Add to shopping cart Technical Data - Compression spring VD-117C Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 0.7 mm Wire diameter Di mm Inner coil diameter D 4.3 mm Mean coil diameter De 5 mm Outer coil diameter Dd 3.2 mm maximum diameter of mandrel Dh 5.5 mm minimum diameter of bush L0 19 mm unstressed spring length Lk mm buckling length Fn 27.56 N maximum force in static use Ln 9.09 mm Minimum length in static use sn 9.91 mm Maximum spring deflection in static use Fndyn 24.616 N maximum force in dynamic use Lndyn 10.15 mm Minimum length in dynamic use shdyn 2.19 mm Maximum stroke in dynamic use S 1.926 mm pitch of spring n 9.5 pc. number of active coils nt pc. total number of coils R 2.781 N/mm Spring rate Weight 0.4726 g weight of one spring Fntol 2.13 N (+/-) tolerance of maximum force in static use Fndtol 2.1 N (+/-) tolerance of maximum dynamic force Detol 0.2 mm (+/-) tolerances of outer coil diameter L0tol 0.62 mm (+/-) tolerance of unstressed spring length Price group F - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force CAD drawing Compression spring VD-117C Datasheet Compression spring VD-117C Stainless steel Ø 0.7 x 4.3 x 19 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-117C Stainless steel Ø 0.7 x 4.3 x 19 mm Metal spring characteristic download pdf file CAD data Compression spring VD-117C Stainless steel Ø 0.7 x 4.3 x 19 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-117C Stainless steel Ø 0.7 x 4.3 x 19 mm force-path-calculation Compression spring VD-117C Similar Compression spring D-117C Spring steel Ø 0.7 x 4.3 x 19 mm Similar Compression spring D-117C Customs tariff number: 73202081; Compression spring VD-117C Country of origin: DE, German; Compression spring VD-117C Product image - Compression springs VD-117C QR-Code: Compression spring VD-117C
