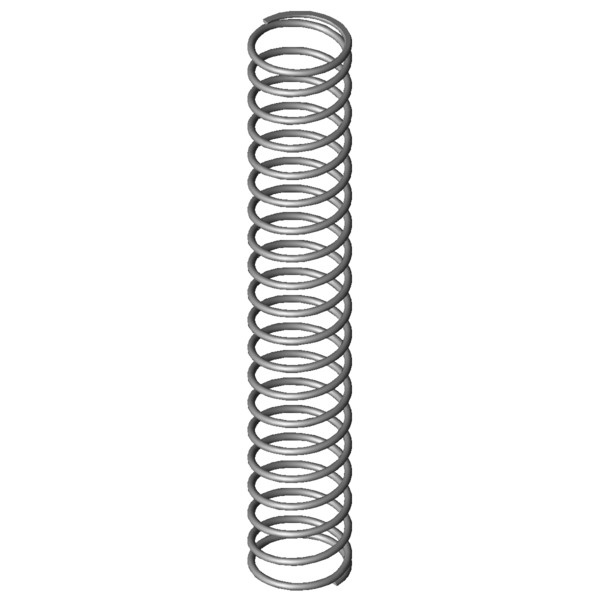

Home » Products » Compression springs » vd-121a Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-121A Stainless steel Ø 0.8 x 10 x 66 mm Scaled prices - Compression spring VD-121A Quantity Single price [EUR] 1 5.0100 EUR 2 3.5300 EUR 3 3.3700 EUR 7 2.1400 EUR 17 1.0400 EUR 37 0.6600 EUR 75 0.5000 EUR 125 0.4132 EUR 175 0.3696 EUR 250 0.3256 EUR 350 0.2842 EUR 450 0.2464 EUR Compression spring Buy Product image Compression spring VD-121A Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-121A Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 0.8 mm Wire diameter Di mm Inner coil diameter D 10 mm Mean coil diameter De 10.8 mm Outer coil diameter Dd 8.7 mm maximum diameter of mandrel Dh 11.6 mm minimum diameter of bush L0 66 mm unstressed spring length Lk 44.7 mm buckling length Fn 8.65 N maximum force in static use Ln 21.35 mm Minimum length in static use sn 44.65 mm Maximum spring deflection in static use Fndyn 8.17 N maximum force in dynamic use Lndyn 23.83 mm Minimum length in dynamic use shdyn 34.23 mm Maximum stroke in dynamic use S 3.524 mm pitch of spring n 18.5 pc. number of active coils nt pc. total number of coils R 0.194 N/mm Spring rate Weight 2.5589 g weight of one spring Fntol 1.02 N (+/-) tolerance of maximum force in static use Fndtol 0.99 N (+/-) tolerance of maximum dynamic force Detol 0.3 mm (+/-) tolerances of outer coil diameter L0tol 4.5 mm (+/-) tolerance of unstressed spring length Price group G - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-121A Stainless steel Ø 0.8 x 10 x 66 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-121A Stainless steel Ø 0.8 x 10 x 66 mm Metal spring characteristic download pdf file CAD data Compression spring VD-121A Stainless steel Ø 0.8 x 10 x 66 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-121A Stainless steel Ø 0.8 x 10 x 66 mm force-path-calculation Compression spring VD-121A Inquiry formular Compression spring VD-121A Stainless steel Ø 0.8 x 10 x 66 mm Inquiry formular Compression spring VD-121A Customs tariff number: 73202081; Compression spring VD-121A Country of origin: DE, German; Compression spring VD-121A Product image - Compression springs VD-121A QR-Code: Compression spring VD-121A
