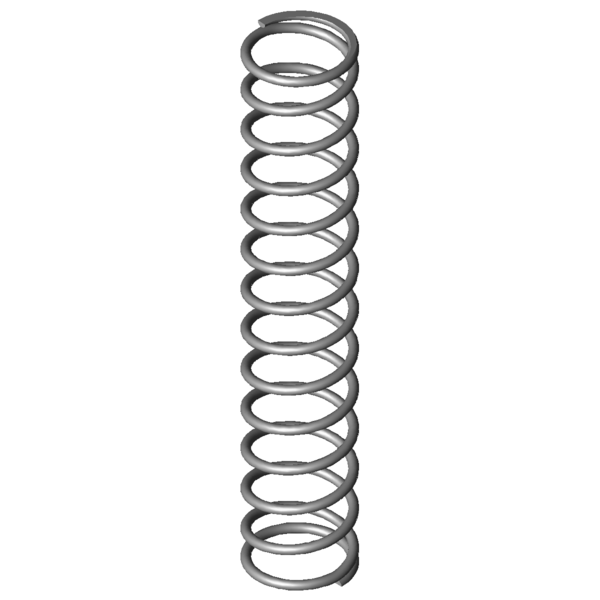

Home » Products » Compression springs » vd-126 Url teilen URL was copied to clipboard, successfully ! Overview Back to overview The Item has been added to your shopping cart. Compression spring VD-126 Stainless steel Ø 0.8 x 8 x 47 mm Scaled prices - Compression spring VD-126 Quantity Single price [EUR] 1 5.0100 EUR 2 3.5300 EUR 3 3.3700 EUR 7 2.1400 EUR 17 1.0400 EUR 37 0.6600 EUR 75 0.5000 EUR 125 0.4132 EUR 175 0.3696 EUR 250 0.3256 EUR 350 0.2842 EUR 450 0.2464 EUR Compression spring Buy Product image Compression spring VD-126 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-126 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 - N prestressed spring force L1 - mm Prestressed spring length s1 - mm Prestressed spring deflection F2 - N Loaded spring force L2 - mm Loaded spring length s2 - mm Loaded spring deflection d 0.8 mm Wire diameter Di - mm Inner coil diameter D 8 mm Mean coil diameter De 8.8 mm Outer coil diameter Dd 6.7 mm maximum diameter of mandrel Dh 9.5 mm minimum diameter of bush L0 47 mm unstressed spring length Lk 25.7 mm buckling length Fn 18.424 N maximum force in static use Ln 14.1 mm Minimum length in static use sn 32.9 mm Maximum spring deflection in static use Fndyn 17.724 N maximum force in dynamic use Lndyn 15.35 mm Minimum length in dynamic use shdyn 14.16 mm Maximum stroke in dynamic use S 3.696 mm pitch of spring n 12.5 pc. number of active coils nt - pc. total number of coils R 0.56 N/mm Spring rate Weight 1.448 g weight of one spring Fntol 1.3 N (+/-) tolerance of maximum force in static use Fndtol 1.29 N (+/-) tolerance of maximum dynamic force Detol 0.3 mm (+/-) tolerances of outer coil diameter L0tol 1.82 mm (+/-) tolerance of unstressed spring length Price group G - price group F1tol - N (+/-) tolerance of prestressed spring force F2tol - N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-126 Stainless steel Ø 0.8 x 8 x 47 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-126 Stainless steel Ø 0.8 x 8 x 47 mm Metal spring characteristic download pdf file CAD data Compression spring VD-126 Stainless steel Ø 0.8 x 8 x 47 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-126 Stainless steel Ø 0.8 x 8 x 47 mm force-path-calculation Compression spring VD-126 Inquiry formular Compression spring VD-126 Stainless steel Ø 0.8 x 8 x 47 mm Inquiry formular Compression spring VD-126 Customs tariff number: 73202081; Compression spring VD-126 Country of origin: DE, German; Compression spring VD-126 Product image - Compression springs VD-126 QR-Code: Compression spring VD-126
