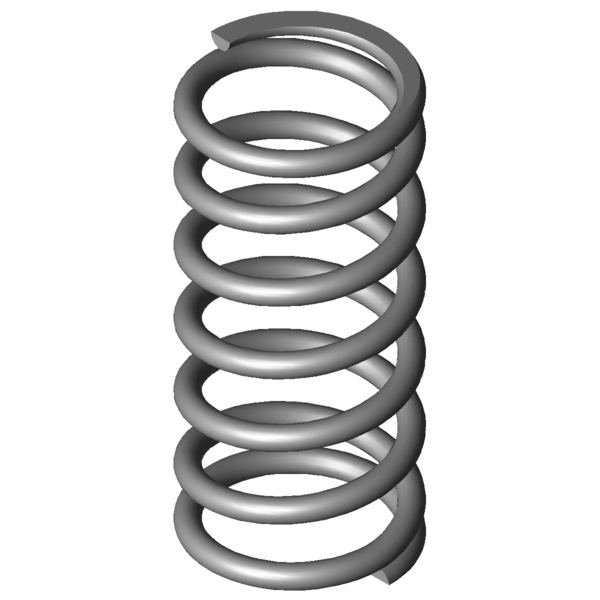

Home » Products » Compression springs » vd-129 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-129 Stainless steel Ø 0.8 x 6.3 x 15.5 mm Scaled prices - Compression spring VD-129 Quantity Single price [EUR] 1 5.0100 EUR 2 3.5300 EUR 3 3.3700 EUR 7 2.1400 EUR 17 1.0400 EUR 37 0.6600 EUR 75 0.5000 EUR 125 0.4132 EUR 175 0.3696 EUR 250 0.3256 EUR 350 0.2842 EUR 450 0.2464 EUR Compression spring Buy Product image Compression spring VD-129 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-129 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 0.8 mm Wire diameter Di mm Inner coil diameter D 6.3 mm Mean coil diameter De 7.1 mm Outer coil diameter Dd 5.1 mm maximum diameter of mandrel Dh 7.6 mm minimum diameter of bush L0 15.5 mm unstressed spring length Lk mm buckling length Fn 22.544 N maximum force in static use Ln 6.85 mm Minimum length in static use sn 8.65 mm Maximum spring deflection in static use Fndyn 21.422 N maximum force in dynamic use Lndyn 7.28 mm Minimum length in dynamic use shdyn 3.8 mm Maximum stroke in dynamic use S 2.673 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 2.606 N/mm Spring rate Weight 0.5898 g weight of one spring Fntol 1.9 N (+/-) tolerance of maximum force in static use Fndtol 1.88 N (+/-) tolerance of maximum dynamic force Detol 0.2 mm (+/-) tolerances of outer coil diameter L0tol 0.6 mm (+/-) tolerance of unstressed spring length Price group G - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-129 Stainless steel Ø 0.8 x 6.3 x 15.5 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-129 Stainless steel Ø 0.8 x 6.3 x 15.5 mm Metal spring characteristic download pdf file CAD data Compression spring VD-129 Stainless steel Ø 0.8 x 6.3 x 15.5 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-129 Stainless steel Ø 0.8 x 6.3 x 15.5 mm force-path-calculation Compression spring VD-129 Inquiry formular Compression spring VD-129 Stainless steel Ø 0.8 x 6.3 x 15.5 mm Inquiry formular Compression spring VD-129 Similar compression springs to Compression spring VD-129 Stainless steel Ø 0.8 x 6.3 x 15.5 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-129 1.4310 0.8 7.1 15.5 22.544 6.85 8.65 5.5 2.606 54.1 | 81.8 | 56.6 | 24.0 D-129 EN 10270-1 0.8 7.1 15.5 26.248 6.85 8.65 5.5 3.034 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-063N 7.6 15 0.437 1.4310 5.04 3.45 11.55 82.2 | 93.2 | 83.7 | 69.8 VD-068A-02 6.5 15.4 0.46 1.4310 4.963 4.62 10.78 84.8 | 94.4 | 86.2 | 73.7 VD-090U-22 7 16.2 0.509 1.4310 4.336 7.68 8.52 81.8 | 87.9 | 76.1 | 81.5 VD-064 6.8 13.5 0.625 1.4310 6.348 3.34 10.16 100.0 | 100.0 | 100.0 | 100.0 VD-068A-12 6 15 0.73 1.4310 8.12 3.88 11.12 87.7 | 92.7 | 84.8 | 85.6 VD-091 8.63 16 0.769 1.4310 9.062 4.22 11.78 57.4 | 86.0 | 56.8 | 29.5 VD-115H-10 7.8 17 0.903 1.4310 8.934 7.11 9.89 62.7 | 89.9 | 63.5 | 34.7 VD-097 6.93 17 1.002 1.4310 11.435 5.59 11.41 63.6 | 89.2 | 63.3 | 38.5 VD-095B 7.9 13 1.025 1.4310 9.095 4.13 8.87 75.6 | 87.2 | 78.5 | 60.9 VD-100A-07 6.4 18 1.104 1.4310 12.916 6.3 11.7 64.3 | 85.0 | 65.6 | 42.4 VD-115J 7.5 14.7 1.909 1.4310 19.472 4.5 10.2 61.2 | 84.6 | 66.1 | 32.7 VD-129 7.1 15.5 2.606 1.4310 22.544 6.85 8.65 54.1 | 81.8 | 56.6 | 24.0 VD-117H-40 7 14 3.24 1.4310 26.082 5.95 8.05 52.6 | 86.7 | 51.8 | 19.3 VD-117H-50 6 15 3.479 1.4310 30.123 6.34 8.66 50.9 | 81.6 | 53.2 | 18.0 VD-132A-11 6.4 16.5 3.711 1.4310 34.879 7.1 9.4 81.1 | 94.7 | 78.3 | 70.2 VD-143Q 7.3 17 3.982 1.4310 37.347 7.62 9.38 78.1 | 92.4 | 76.3 | 65.5 VD-166J 8 16.5 4.638 1.4310 37.318 8.45 8.05 73.5 | 87.6 | 76.7 | 56.2 VD-173 7 14 5.787 1.4310 22.697 10.08 3.92 41.8 | 81.2 | 33.3 | 10.8 VD-168 7.3 14.5 6.362 1.4310 38.954 8.38 6.12 42.3 | 78.8 | 38.3 | 9.8 VD-144B 6.3 13.6 6.629 1.4310 40.354 7.51 6.09 43.3 | 82.5 | 37.8 | 9.4 VD-172 7 14 6.752 1.4310 34.271 8.92 5.08 63.5 | 89.6 | 62.3 | 38.6 VD-173A-01 7 18 6.752 1.4310 61.277 8.92 9.08 64.3 | 88.2 | 66.0 | 38.6 VD-173A 7 15.1 7.365 1.4310 49.738 8.35 6.75 63.0 | 92.0 | 61.7 | 35.4 VD-176 6 17 8.235 1.4310 43.904 11.67 5.33 57.8 | 85.2 | 56.5 | 31.6 VD-180B 7.5 16 8.885 1.4310 60.756 9.16 6.84 58.5 | 88.1 | 58.1 | 29.3 VD-205D 6.8 19 14.701 1.4310 66.13 14.5 4.5 47.1 | 80.5 | 43.1 | 17.7 VD-180D-02 6.5 13.7 14.792 1.4310 68.433 9.07 4.63 48.4 | 84.2 | 43.2 | 17.6 Number of similar metal springs: 26 Customs tariff number: 73202081; Compression spring VD-129 Country of origin: DE, German; Compression spring VD-129 Product image - Compression springs VD-129 QR-Code: Compression spring VD-129
