Compression spring VD-145H Stainless steel Ø 1 x 16 x 186 mm

Name: VD-145H - Compression springs
SKU: VD-145H
Availability: InStock

Scaled prices - Compression spring VD-145H

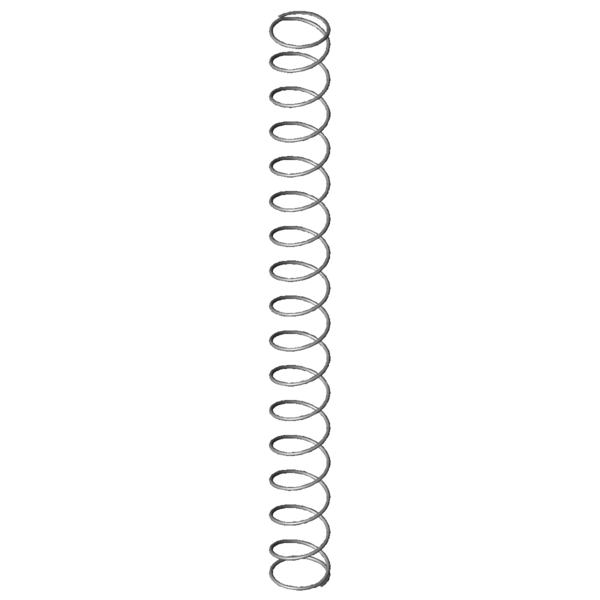

Product image Compression spring VD-145H

Quantity:Quantity: Add to shopping cart

Formula symbols	Value	Unit	Description
Material	1.4310	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	1	mm	Wire diameter
Di		mm	Inner coil diameter
D	16	mm	Mean coil diameter
De	17	mm	Outer coil diameter
Dd	14.4	mm	maximum diameter of mandrel
Dh	18.5	mm	minimum diameter of bush
L0	186	mm	unstressed spring length
Lk	169.64	mm	buckling length
Fn	22.189	N	maximum force in static use
Ln	25	mm	Minimum length in static use
sn	161	mm	Maximum spring deflection in static use
Fndyn	21.548	N	maximum force in dynamic use
Lndyn	29.65	mm	Minimum length in dynamic use
shdyn	40.3	mm	Maximum stroke in dynamic use
S	11.935	mm	pitch of spring
n	15.5	pc.	number of active coils
nt		pc.	total number of coils
R	0.138	N/mm	Spring rate
Weight	5.4611	g	weight of one spring
Fntol	1.55	N	(+/-) tolerance of maximum force in static use
Fndtol	1.54	N	(+/-) tolerance of maximum dynamic force
Detol	0.4	mm	(+/-) tolerances of outer coil diameter
L0tol	8.83	mm	(+/-) tolerance of unstressed spring length
Price group	H	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force
