Compression spring VD-166E Stainless steel Ø 1 x 7.3 x 64 mm

Name: VD-166E - Compression springs
SKU: VD-166E
Availability: InStock

Scaled prices - Compression spring VD-166E

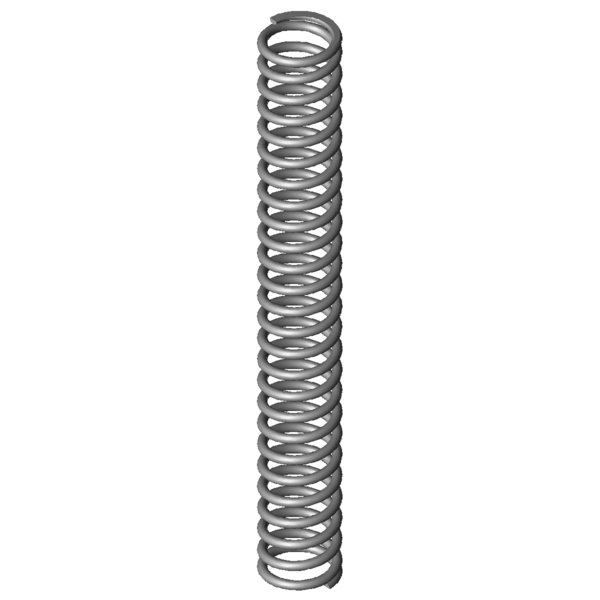

Product image Compression spring VD-166E

Quantity:Quantity: Add to shopping cart

Formula symbols	Value	Unit	Description
Material	1.4310	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	1	mm	Wire diameter
Di		mm	Inner coil diameter
D	7.3	mm	Mean coil diameter
De	8.3	mm	Outer coil diameter
Dd	5.8	mm	maximum diameter of mandrel
Dh	8.4	mm	minimum diameter of bush
L0	64	mm	unstressed spring length
Lk	53.59	mm	buckling length
Fn	30.38	N	maximum force in static use
Ln	30.91	mm	Minimum length in static use
sn	33.09	mm	Maximum spring deflection in static use
Fndyn	28.35	N	maximum force in dynamic use
Lndyn	33.12	mm	Minimum length in dynamic use
shdyn	18.31	mm	Maximum stroke in dynamic use
S	2.571	mm	pitch of spring
n	24.5	pc.	number of active coils
nt		pc.	total number of coils
R	0.918	N/mm	Spring rate
Weight	3.773	g	weight of one spring
Fntol	2.51	N	(+/-) tolerance of maximum force in static use
Fndtol	2.48	N	(+/-) tolerance of maximum dynamic force
Detol	0.25	mm	(+/-) tolerances of outer coil diameter
L0tol	2.24	mm	(+/-) tolerance of unstressed spring length
Price group	H	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force
