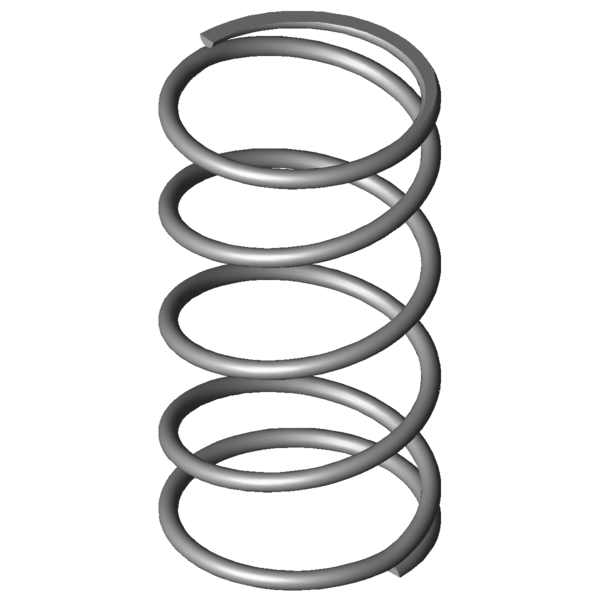

Home » Products » Compression springs » vd-180m-10 Url teilen URL was copied to clipboard, successfully ! Overview Back to overview The Item has been added to your shopping cart. Compression spring VD-180M-10 Stainless steel Ø 1.2 x 15.8 x 31.5 mm Scaled prices - Compression spring VD-180M-10 Quantity Single price [EUR] 1 5.1100 EUR 2 3.6000 EUR 3 3.4300 EUR 7 2.2200 EUR 17 1.1200 EUR 37 0.7400 EUR 75 0.5500 EUR 125 0.4570 EUR 175 0.4069 EUR 250 0.3567 EUR 350 0.3095 EUR 450 0.2652 EUR Compression spring Buy Product image Compression spring VD-180M-10 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-180M-10 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 - N prestressed spring force L1 - mm Prestressed spring length s1 - mm Prestressed spring deflection F2 - N Loaded spring force L2 - mm Loaded spring length s2 - mm Loaded spring deflection d 1.2 mm Wire diameter Di - mm Inner coil diameter D 15.8 mm Mean coil diameter De 17 mm Outer coil diameter Dd 14 mm maximum diameter of mandrel Dh 18.1 mm minimum diameter of bush L0 31.5 mm unstressed spring length Lk mm buckling length Fn 30.739 N maximum force in static use Ln 8.11 mm Minimum length in static use sn 23.39 mm Maximum spring deflection in static use Fndyn 29.743 N maximum force in dynamic use Lndyn 8.87 mm Minimum length in dynamic use shdyn 10.29 mm Maximum stroke in dynamic use S 8.657 mm pitch of spring n 3.5 pc. number of active coils nt - pc. total number of coils R 1.314 N/mm Spring rate Weight 2.4406 g weight of one spring Fntol 2.83 N (+/-) tolerance of maximum force in static use Fndtol 2.82 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 1.8 mm (+/-) tolerance of unstressed spring length Price group H - price group F1tol - N (+/-) tolerance of prestressed spring force F2tol - N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-180M-10 Stainless steel Ø 1.2 x 15.8 x 31.5 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-180M-10 Stainless steel Ø 1.2 x 15.8 x 31.5 mm Metal spring characteristic download pdf file CAD data Compression spring VD-180M-10 Stainless steel Ø 1.2 x 15.8 x 31.5 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-180M-10 Stainless steel Ø 1.2 x 15.8 x 31.5 mm force-path-calculation Compression spring VD-180M-10 Inquiry formular Compression spring VD-180M-10 Stainless steel Ø 1.2 x 15.8 x 31.5 mm Inquiry formular Compression spring VD-180M-10 Customs tariff number: 73202081; Compression spring VD-180M-10 Country of origin: DE, German; Compression spring VD-180M-10 Product image - Compression springs VD-180M-10 QR-Code: Compression spring VD-180M-10
