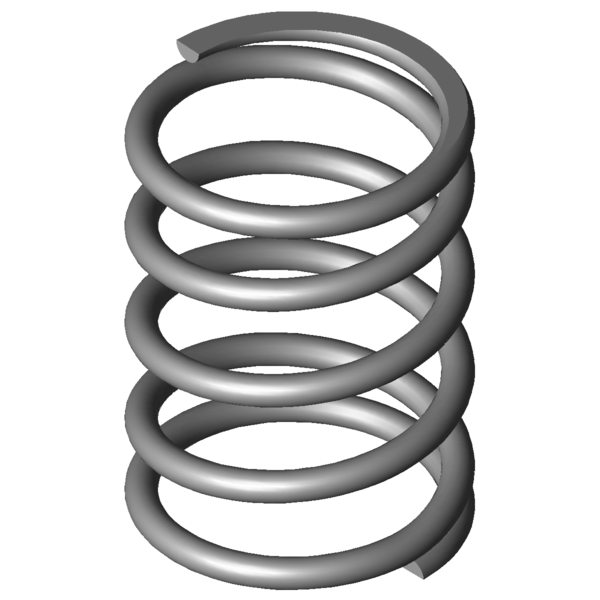

Home » Products » Compression springs » vd-190b Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-190B Stainless steel Ø 1.25 x 11.75 x 18 mm Scaled prices - Compression spring VD-190B Quantity Single price [EUR] 1 5.1100 EUR 2 3.6000 EUR 3 3.4300 EUR 7 2.2200 EUR 17 1.1200 EUR 37 0.7400 EUR 75 0.5500 EUR 125 0.4570 EUR 175 0.4069 EUR 250 0.3567 EUR 350 0.3095 EUR 450 0.2652 EUR Compression spring Buy Product image Compression spring VD-190B Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-190B Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 1.25 mm Wire diameter Di mm Inner coil diameter D 11.75 mm Mean coil diameter De 13 mm Outer coil diameter Dd 10 mm maximum diameter of mandrel Dh 13.7 mm minimum diameter of bush L0 18 mm unstressed spring length Lk mm buckling length Fn 38.029 N maximum force in static use Ln 7.89 mm Minimum length in static use sn 10.11 mm Maximum spring deflection in static use Fndyn 36.082 N maximum force in dynamic use Lndyn 8.41 mm Minimum length in dynamic use shdyn 5.36 mm Maximum stroke in dynamic use S 4.786 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 3.762 N/mm Spring rate Weight 1.9694 g weight of one spring Fntol 3.63 N (+/-) tolerance of maximum force in static use Fndtol 3.6 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 0.81 mm (+/-) tolerance of unstressed spring length Price group H - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-190B Stainless steel Ø 1.25 x 11.75 x 18 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-190B Stainless steel Ø 1.25 x 11.75 x 18 mm Metal spring characteristic download pdf file CAD data Compression spring VD-190B Stainless steel Ø 1.25 x 11.75 x 18 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-190B Stainless steel Ø 1.25 x 11.75 x 18 mm force-path-calculation Compression spring VD-190B Inquiry formular Compression spring VD-190B Stainless steel Ø 1.25 x 11.75 x 18 mm Inquiry formular Compression spring VD-190B Customs tariff number: 73202081; Compression spring VD-190B Country of origin: DE, German; Compression spring VD-190B Product image - Compression springs VD-190B QR-Code: Compression spring VD-190B
