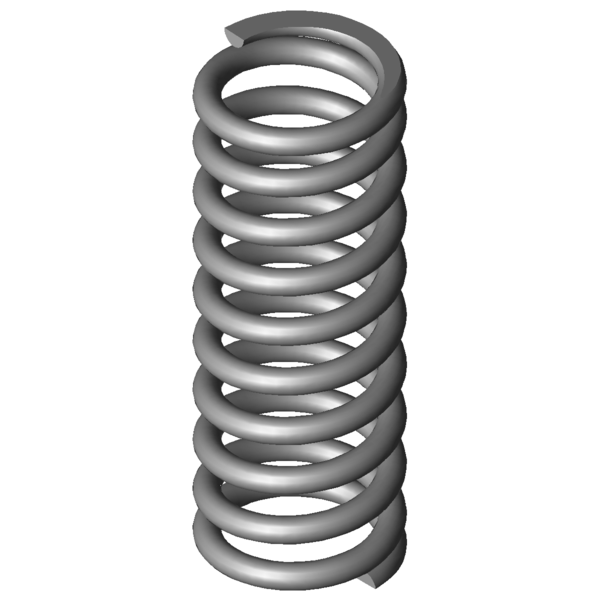

Home » Products » Compression springs » vd-197a Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-197A Stainless steel Ø 1.25 x 8 x 25 mm Scaled prices - Compression spring VD-197A Quantity Single price [EUR] 1 5.1100 EUR 2 3.6000 EUR 3 3.4300 EUR 7 2.2200 EUR 17 1.1200 EUR 37 0.7400 EUR 75 0.5500 EUR 125 0.4570 EUR 175 0.4069 EUR 250 0.3567 EUR 350 0.3095 EUR 450 0.2652 EUR Compression spring Buy Product image Compression spring VD-197A Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-197A Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 1.25 mm Wire diameter Di mm Inner coil diameter D 8 mm Mean coil diameter De 9.25 mm Outer coil diameter Dd 6.3 mm maximum diameter of mandrel Dh 9.8 mm minimum diameter of bush L0 25 mm unstressed spring length Lk mm buckling length Fn 49.87 N maximum force in static use Ln 14.84 mm Minimum length in static use sn 10.16 mm Maximum spring deflection in static use Fndyn 45.601 N maximum force in dynamic use Lndyn 15.71 mm Minimum length in dynamic use shdyn 5.87 mm Maximum stroke in dynamic use S 2.794 mm pitch of spring n 8.5 pc. number of active coils nt pc. total number of coils R 4.909 N/mm Spring rate Weight 2.5599 g weight of one spring Fntol 5.07 N (+/-) tolerance of maximum force in static use Fndtol 5.01 N (+/-) tolerance of maximum dynamic force Detol 0.25 mm (+/-) tolerances of outer coil diameter L0tol 0.88 mm (+/-) tolerance of unstressed spring length Price group H - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-197A Stainless steel Ø 1.25 x 8 x 25 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-197A Stainless steel Ø 1.25 x 8 x 25 mm Metal spring characteristic download pdf file CAD data Compression spring VD-197A Stainless steel Ø 1.25 x 8 x 25 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-197A Stainless steel Ø 1.25 x 8 x 25 mm force-path-calculation Compression spring VD-197A Inquiry formular Compression spring VD-197A Stainless steel Ø 1.25 x 8 x 25 mm Inquiry formular Compression spring VD-197A Customs tariff number: 73202081; Compression spring VD-197A Country of origin: DE, German; Compression spring VD-197A Product image - Compression springs VD-197A QR-Code: Compression spring VD-197A
