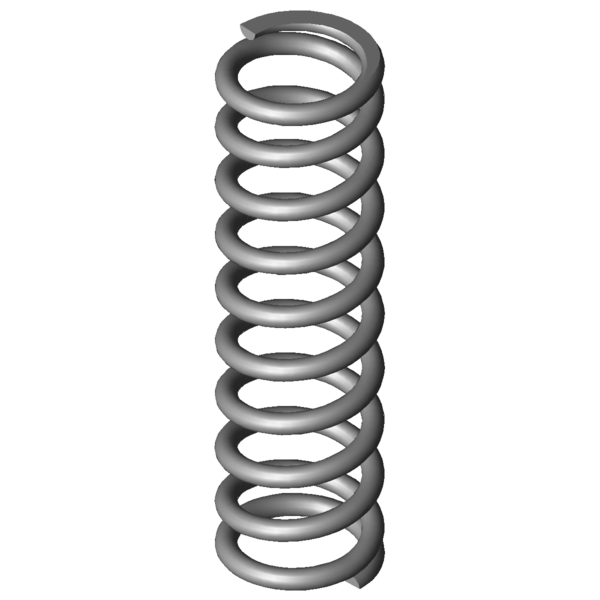

Home » Products » Compression springs » vd-198 Url teilen URL was copied to clipboard, successfully ! Overview Back to overview The Item has been added to your shopping cart. Compression spring VD-198 Stainless steel Ø 1.25 x 8 x 33 mm Scaled prices - Compression spring VD-198 Quantity Single price [EUR] 1 5.1100 EUR 2 3.6000 EUR 3 3.4300 EUR 7 2.2200 EUR 17 1.1200 EUR 37 0.7400 EUR 75 0.5500 EUR 125 0.4570 EUR 175 0.4069 EUR 250 0.3567 EUR 350 0.3095 EUR 450 0.2652 EUR Compression spring Buy Product image Compression spring VD-198 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-198 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 - N prestressed spring force L1 - mm Prestressed spring length s1 - mm Prestressed spring deflection F2 - N Loaded spring force L2 - mm Loaded spring length s2 - mm Loaded spring deflection d 1.25 mm Wire diameter Di - mm Inner coil diameter D 8 mm Mean coil diameter De 9.25 mm Outer coil diameter Dd 6.3 mm maximum diameter of mandrel Dh 9.8 mm minimum diameter of bush L0 33 mm unstressed spring length Lk mm buckling length Fn 89.139 N maximum force in static use Ln 14.84 mm Minimum length in static use sn 18.16 mm Maximum spring deflection in static use Fndyn 72.648 N maximum force in dynamic use Lndyn 18.2 mm Minimum length in dynamic use shdyn 3.87 mm Maximum stroke in dynamic use S 3.735 mm pitch of spring n 8.5 pc. number of active coils nt - pc. total number of coils R 4.909 N/mm Spring rate Weight 2.5599 g weight of one spring Fntol 5.66 N (+/-) tolerance of maximum force in static use Fndtol 5.39 N (+/-) tolerance of maximum dynamic force Detol 0.25 mm (+/-) tolerances of outer coil diameter L0tol 0.88 mm (+/-) tolerance of unstressed spring length Price group H - price group F1tol - N (+/-) tolerance of prestressed spring force F2tol - N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-198 Stainless steel Ø 1.25 x 8 x 33 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-198 Stainless steel Ø 1.25 x 8 x 33 mm Metal spring characteristic download pdf file CAD data Compression spring VD-198 Stainless steel Ø 1.25 x 8 x 33 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-198 Stainless steel Ø 1.25 x 8 x 33 mm force-path-calculation Compression spring VD-198 Inquiry formular Compression spring VD-198 Stainless steel Ø 1.25 x 8 x 33 mm Inquiry formular Compression spring VD-198 Customs tariff number: 73202081; Compression spring VD-198 Country of origin: DE, German; Compression spring VD-198 Product image - Compression springs VD-198 QR-Code: Compression spring VD-198
