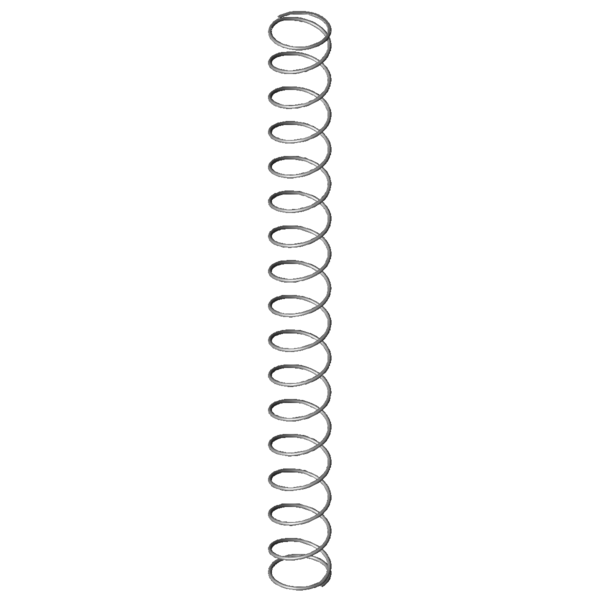

Home » Products » Compression springs » vd-206d Url teilen URL was copied to clipboard, successfully ! Overview Back to overview The Item has been added to your shopping cart. Compression spring VD-206D Stainless steel Ø 1.4 x 22.6 x 253 mm Scaled prices - Compression spring VD-206D Quantity Single price [EUR] 1 5.2700 EUR 2 3.7200 EUR 3 3.5400 EUR 7 2.5100 EUR 17 1.2200 EUR 37 0.9000 EUR 75 0.7300 EUR 125 0.5070 EUR 175 0.4444 EUR 250 0.4132 EUR 350 0.3853 EUR 450 0.3536 EUR Compression spring Buy Product image Compression spring VD-206D Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-206D Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 - N prestressed spring force L1 - mm Prestressed spring length s1 - mm Prestressed spring deflection F2 - N Loaded spring force L2 - mm Loaded spring length s2 - mm Loaded spring deflection d 1.4 mm Wire diameter Di - mm Inner coil diameter D 22.6 mm Mean coil diameter De 24 mm Outer coil diameter Dd 20.5 mm maximum diameter of mandrel Dh 25.8 mm minimum diameter of bush L0 253 mm unstressed spring length Lk 228.89 mm buckling length Fn 40.928 N maximum force in static use Ln 35.15 mm Minimum length in static use sn 217.85 mm Maximum spring deflection in static use Fndyn 39.716 N maximum force in dynamic use Lndyn 41.6 mm Minimum length in dynamic use shdyn 62.63 mm Maximum stroke in dynamic use S 16.232 mm pitch of spring n 15.5 pc. number of active coils nt - pc. total number of coils R 0.188 N/mm Spring rate Weight 15.119 g weight of one spring Fntol 2.76 N (+/-) tolerance of maximum force in static use Fndtol 2.75 N (+/-) tolerance of maximum dynamic force Detol 0.5 mm (+/-) tolerances of outer coil diameter L0tol 11.44 mm (+/-) tolerance of unstressed spring length Price group K - price group F1tol - N (+/-) tolerance of prestressed spring force F2tol - N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-206D Stainless steel Ø 1.4 x 22.6 x 253 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-206D Stainless steel Ø 1.4 x 22.6 x 253 mm Metal spring characteristic download pdf file CAD data Compression spring VD-206D Stainless steel Ø 1.4 x 22.6 x 253 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-206D Stainless steel Ø 1.4 x 22.6 x 253 mm force-path-calculation Compression spring VD-206D Inquiry formular Compression spring VD-206D Stainless steel Ø 1.4 x 22.6 x 253 mm Inquiry formular Compression spring VD-206D Customs tariff number: 73202081; Compression spring VD-206D Country of origin: DE, German; Compression spring VD-206D Product image - Compression springs VD-206D QR-Code: Compression spring VD-206D
