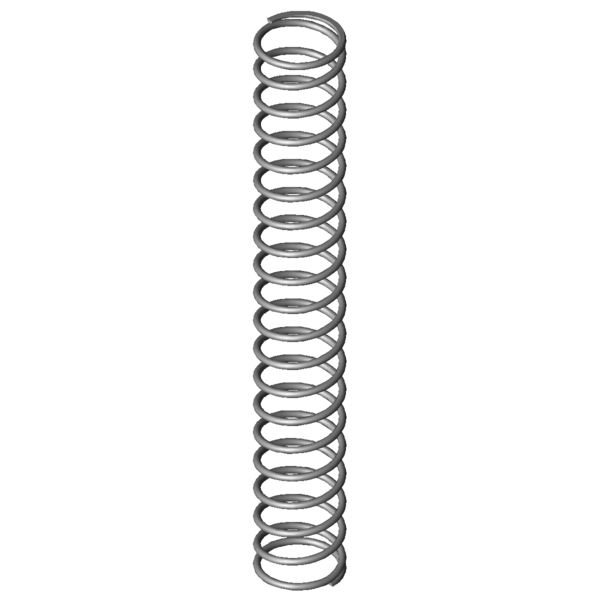

Home » Products » Compression springs » vd-207jz Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-207JZ Stainless steel Ø 1.5 x 17 x 129 mm Scaled prices - Compression spring VD-207JZ Quantity Single price [EUR] 1 5.2700 EUR 2 3.7200 EUR 3 3.5400 EUR 7 2.5100 EUR 17 1.2200 EUR 37 0.9000 EUR 75 0.7300 EUR 125 0.5070 EUR 175 0.4444 EUR 250 0.4132 EUR 350 0.3853 EUR 450 0.3536 EUR Compression spring Buy Product image Compression spring VD-207JZ Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-207JZ Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 1.5 mm Wire diameter Di mm Inner coil diameter D 17 mm Mean coil diameter De 18.5 mm Outer coil diameter Dd 14.7 mm maximum diameter of mandrel Dh 19.5 mm minimum diameter of bush L0 129 mm unstressed spring length Lk 99.69 mm buckling length Fn 43.926 N maximum force in static use Ln 38.87 mm Minimum length in static use sn 90.13 mm Maximum spring deflection in static use Fndyn 41.948 N maximum force in dynamic use Lndyn 42.93 mm Minimum length in dynamic use shdyn 48.39 mm Maximum stroke in dynamic use S 6.892 mm pitch of spring n 18.5 pc. number of active coils nt pc. total number of coils R 0.487 N/mm Spring rate Weight 15.2935 g weight of one spring Fntol 3.29 N (+/-) tolerance of maximum force in static use Fndtol 3.26 N (+/-) tolerance of maximum dynamic force Detol 0.45 mm (+/-) tolerances of outer coil diameter L0tol 5.4 mm (+/-) tolerance of unstressed spring length Price group K - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-207JZ Stainless steel Ø 1.5 x 17 x 129 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-207JZ Stainless steel Ø 1.5 x 17 x 129 mm Metal spring characteristic download pdf file CAD data Compression spring VD-207JZ Stainless steel Ø 1.5 x 17 x 129 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-207JZ Stainless steel Ø 1.5 x 17 x 129 mm force-path-calculation Compression spring VD-207JZ Inquiry formular Compression spring VD-207JZ Stainless steel Ø 1.5 x 17 x 129 mm Inquiry formular Compression spring VD-207JZ Customs tariff number: 73202081; Compression spring VD-207JZ Country of origin: DE, German; Compression spring VD-207JZ Product image - Compression springs VD-207JZ QR-Code: Compression spring VD-207JZ
