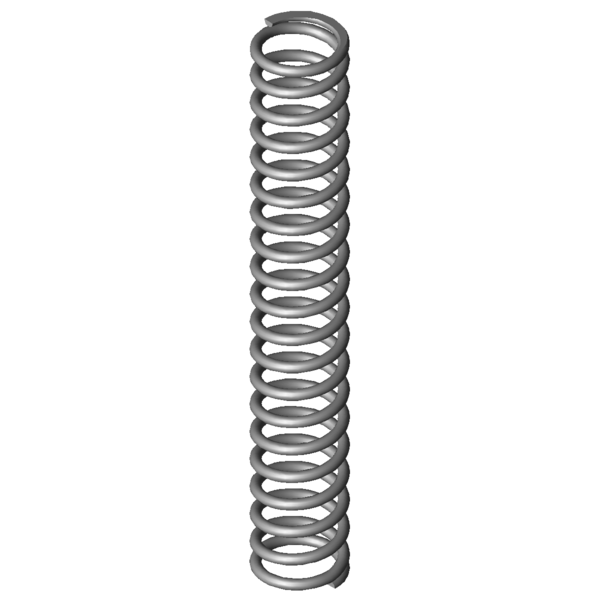

Home » Products » Compression springs » vd-207ke Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-207KE Stainless steel Ø 1.5 x 11 x 80.9 mm Scaled prices - Compression spring VD-207KE Quantity Single price [EUR] 1 5.2700 EUR 2 3.7200 EUR 3 3.5400 EUR 7 2.5100 EUR 17 1.2200 EUR 37 0.9000 EUR 75 0.7300 EUR 125 0.5070 EUR 175 0.4444 EUR 250 0.4132 EUR 350 0.3853 EUR 450 0.3536 EUR Compression spring Buy Product image Compression spring VD-207KE Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-207KE Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 1.5 mm Wire diameter Di mm Inner coil diameter D 11 mm Mean coil diameter De 12.5 mm Outer coil diameter Dd 8.9 mm maximum diameter of mandrel Dh 13.3 mm minimum diameter of bush L0 80.9 mm unstressed spring length Lk 61.07 mm buckling length Fn 81.199 N maximum force in static use Ln 35.76 mm Minimum length in static use sn 45.14 mm Maximum spring deflection in static use Fndyn 76.69 N maximum force in dynamic use Lndyn 38.27 mm Minimum length in dynamic use shdyn 19.1 mm Maximum stroke in dynamic use S 4.292 mm pitch of spring n 18.5 pc. number of active coils nt pc. total number of coils R 1.799 N/mm Spring rate Weight 9.8958 g weight of one spring Fntol 5.38 N (+/-) tolerance of maximum force in static use Fndtol 5.31 N (+/-) tolerance of maximum dynamic force Detol 0.3 mm (+/-) tolerances of outer coil diameter L0tol 2.31 mm (+/-) tolerance of unstressed spring length Price group K - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-207KE Stainless steel Ø 1.5 x 11 x 80.9 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-207KE Stainless steel Ø 1.5 x 11 x 80.9 mm Metal spring characteristic download pdf file CAD data Compression spring VD-207KE Stainless steel Ø 1.5 x 11 x 80.9 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-207KE Stainless steel Ø 1.5 x 11 x 80.9 mm force-path-calculation Compression spring VD-207KE Inquiry formular Compression spring VD-207KE Stainless steel Ø 1.5 x 11 x 80.9 mm Inquiry formular Compression spring VD-207KE Customs tariff number: 73202081; Compression spring VD-207KE Country of origin: DE, German; Compression spring VD-207KE Product image - Compression springs VD-207KE QR-Code: Compression spring VD-207KE
