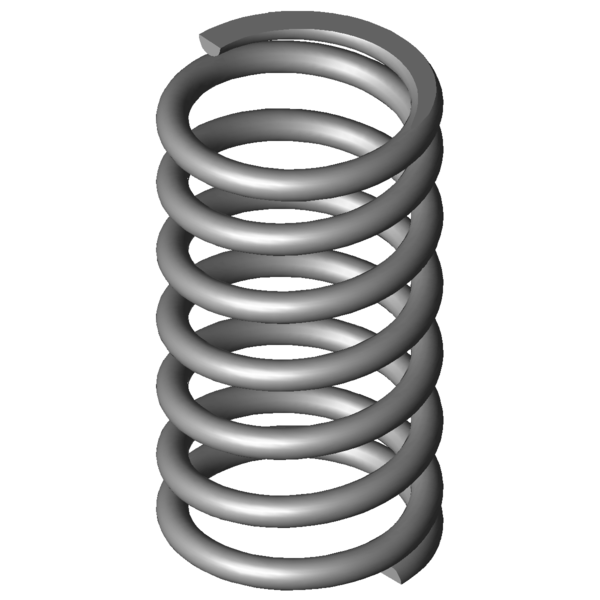

Home » Products » Compression springs » vd-218a Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-218A Stainless steel Ø 1.6 x 12.5 x 26 mm Scaled prices - Compression spring VD-218A Quantity Single price [EUR] 1 5.1600 EUR 2 3.6400 EUR 3 3.4700 EUR 7 2.4200 EUR 17 1.1500 EUR 37 0.8500 EUR 75 0.6800 EUR 125 0.4859 EUR 175 0.4196 EUR 250 0.3695 EUR 350 0.3536 EUR 450 0.3284 EUR Compression spring Buy Product image Compression spring VD-218A Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-218A Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 1.6 mm Wire diameter Di mm Inner coil diameter D 12.5 mm Mean coil diameter De 14.1 mm Outer coil diameter Dd 10.4 mm maximum diameter of mandrel Dh 14.7 mm minimum diameter of bush L0 26 mm unstressed spring length Lk mm buckling length Fn 65.736 N maximum force in static use Ln 13.69 mm Minimum length in static use sn 12.31 mm Maximum spring deflection in static use Fndyn 61.176 N maximum force in dynamic use Lndyn 14.54 mm Minimum length in dynamic use shdyn 8.97 mm Maximum stroke in dynamic use S 4.436 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 5.338 N/mm Spring rate Weight 4.6809 g weight of one spring Fntol 6.11 N (+/-) tolerance of maximum force in static use Fndtol 6.04 N (+/-) tolerance of maximum dynamic force Detol 0.3 mm (+/-) tolerances of outer coil diameter L0tol 0.96 mm (+/-) tolerance of unstressed spring length Price group J - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-218A Stainless steel Ø 1.6 x 12.5 x 26 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-218A Stainless steel Ø 1.6 x 12.5 x 26 mm Metal spring characteristic download pdf file CAD data Compression spring VD-218A Stainless steel Ø 1.6 x 12.5 x 26 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-218A Stainless steel Ø 1.6 x 12.5 x 26 mm force-path-calculation Compression spring VD-218A Inquiry formular Compression spring VD-218A Stainless steel Ø 1.6 x 12.5 x 26 mm Inquiry formular Compression spring VD-218A Customs tariff number: 73202081; Compression spring VD-218A Country of origin: DE, German; Compression spring VD-218A Product image - Compression springs VD-218A QR-Code: Compression spring VD-218A
