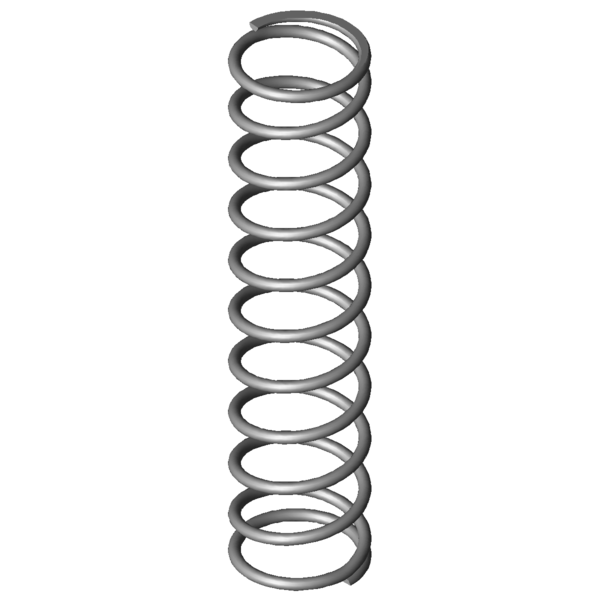

Home » Products » Compression springs » vd-232m Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-232M Stainless steel Ø 1.8 x 18.2 x 86.3 mm Scaled prices - Compression spring VD-232M Quantity Single price [EUR] 1 5.4200 EUR 2 3.8200 EUR 3 3.6400 EUR 7 2.6600 EUR 17 1.3800 EUR 37 1.0200 EUR 75 0.8900 EUR 125 0.5823 EUR 175 0.5445 EUR 250 0.4945 EUR 350 0.4610 EUR 450 0.4169 EUR Compression spring Buy Product image Compression spring VD-232M Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-232M Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 1.8 mm Wire diameter Di mm Inner coil diameter D 18.2 mm Mean coil diameter De 20 mm Outer coil diameter Dd 15.7 mm maximum diameter of mandrel Dh 21 mm minimum diameter of bush L0 86.3 mm unstressed spring length Lk mm buckling length Fn 98.263 N maximum force in static use Ln 25.03 mm Minimum length in static use sn 61.27 mm Maximum spring deflection in static use Fndyn 94.386 N maximum force in dynamic use Lndyn 27.45 mm Minimum length in dynamic use shdyn 19.16 mm Maximum stroke in dynamic use S 8.895 mm pitch of spring n 9.5 pc. number of active coils nt pc. total number of coils R 1.604 N/mm Spring rate Weight 13.2262 g weight of one spring Fntol 5.66 N (+/-) tolerance of maximum force in static use Fndtol 5.61 N (+/-) tolerance of maximum dynamic force Detol 0.45 mm (+/-) tolerances of outer coil diameter L0tol 2.61 mm (+/-) tolerance of unstressed spring length Price group L - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-232M Stainless steel Ø 1.8 x 18.2 x 86.3 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-232M Stainless steel Ø 1.8 x 18.2 x 86.3 mm Metal spring characteristic download pdf file CAD data Compression spring VD-232M Stainless steel Ø 1.8 x 18.2 x 86.3 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-232M Stainless steel Ø 1.8 x 18.2 x 86.3 mm force-path-calculation Compression spring VD-232M Inquiry formular Compression spring VD-232M Stainless steel Ø 1.8 x 18.2 x 86.3 mm Inquiry formular Compression spring VD-232M Customs tariff number: 73202081; Compression spring VD-232M Country of origin: DE, German; Compression spring VD-232M Product image - Compression springs VD-232M QR-Code: Compression spring VD-232M
