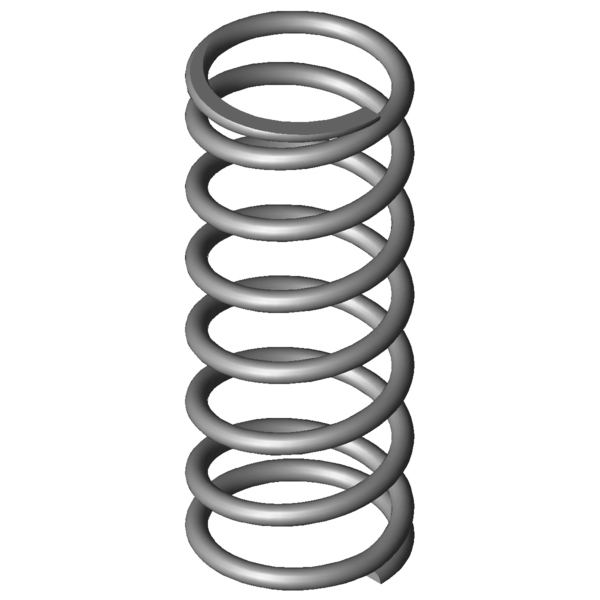

Home » Products » Compression springs » vd-232o Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-232O Stainless steel Ø 1.8 x 16.2 x 45 mm Scaled prices - Compression spring VD-232O Quantity Single price [EUR] 1 5.2700 EUR 2 3.7200 EUR 3 3.5400 EUR 7 2.5100 EUR 17 1.2200 EUR 37 0.9000 EUR 75 0.7300 EUR 125 0.5070 EUR 175 0.4444 EUR 250 0.4132 EUR 350 0.3853 EUR 450 0.3536 EUR Compression spring Buy Product image Compression spring VD-232O Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-232O Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 1.8 mm Wire diameter Di mm Inner coil diameter D 16.2 mm Mean coil diameter De 18 mm Outer coil diameter Dd 13.7 mm maximum diameter of mandrel Dh 18.9 mm minimum diameter of bush L0 45 mm unstressed spring length Lk mm buckling length Fn 101.571 N maximum force in static use Ln 16.79 mm Minimum length in static use sn 28.21 mm Maximum spring deflection in static use Fndyn 97.258 N maximum force in dynamic use Lndyn 17.99 mm Minimum length in dynamic use shdyn 10.59 mm Maximum stroke in dynamic use S 7.2 mm pitch of spring n 6 pc. number of active coils nt pc. total number of coils R 3.601 N/mm Spring rate Weight 8.1897 g weight of one spring Fntol 6.68 N (+/-) tolerance of maximum force in static use Fndtol 6.61 N (+/-) tolerance of maximum dynamic force Detol 0.45 mm (+/-) tolerances of outer coil diameter L0tol 1.42 mm (+/-) tolerance of unstressed spring length Price group K - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-232O Stainless steel Ø 1.8 x 16.2 x 45 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-232O Stainless steel Ø 1.8 x 16.2 x 45 mm Metal spring characteristic download pdf file CAD data Compression spring VD-232O Stainless steel Ø 1.8 x 16.2 x 45 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-232O Stainless steel Ø 1.8 x 16.2 x 45 mm force-path-calculation Compression spring VD-232O Inquiry formular Compression spring VD-232O Stainless steel Ø 1.8 x 16.2 x 45 mm Inquiry formular Compression spring VD-232O Customs tariff number: 73202081; Compression spring VD-232O Country of origin: DE, German; Compression spring VD-232O Product image - Compression springs VD-232O QR-Code: Compression spring VD-232O
