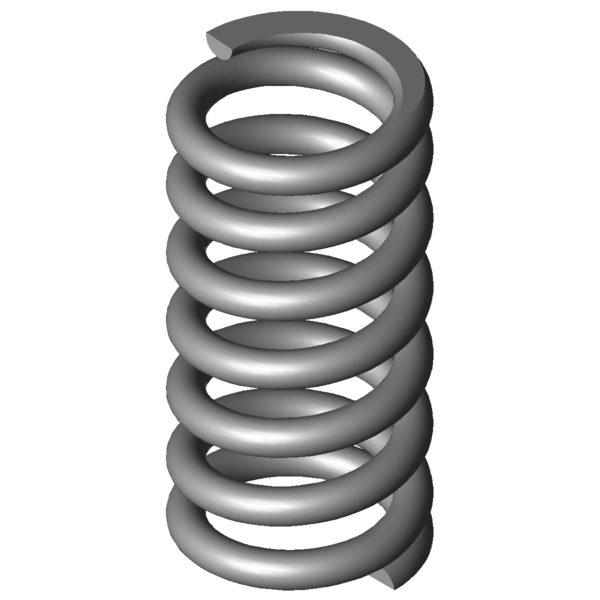

Home » Products » Compression springs » vd-233b Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-233B Stainless steel Ø 1.8 x 10.2 x 24.6 mm Scaled prices - Compression spring VD-233B Quantity Single price [EUR] 1 5.1600 EUR 2 3.6400 EUR 3 3.4700 EUR 7 2.4200 EUR 17 1.1500 EUR 37 0.8500 EUR 75 0.6800 EUR 125 0.4859 EUR 175 0.4196 EUR 250 0.3695 EUR 350 0.3536 EUR 450 0.3284 EUR Compression spring Buy Product image Compression spring VD-233B Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-233B Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 1.8 mm Wire diameter Di mm Inner coil diameter D 10.2 mm Mean coil diameter De 12 mm Outer coil diameter Dd 7.9 mm maximum diameter of mandrel Dh 12.6 mm minimum diameter of bush L0 24.6 mm unstressed spring length Lk mm buckling length Fn 151.601 N maximum force in static use Ln 14.97 mm Minimum length in static use sn 9.63 mm Maximum spring deflection in static use Fndyn 139.906 N maximum force in dynamic use Lndyn 15.71 mm Minimum length in dynamic use shdyn 3.6 mm Maximum stroke in dynamic use S 4.145 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 15.737 N/mm Spring rate Weight 4.8342 g weight of one spring Fntol 13.52 N (+/-) tolerance of maximum force in static use Fndtol 13.34 N (+/-) tolerance of maximum dynamic force Detol 0.3 mm (+/-) tolerances of outer coil diameter L0tol 0.71 mm (+/-) tolerance of unstressed spring length Price group J - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-233B Stainless steel Ø 1.8 x 10.2 x 24.6 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-233B Stainless steel Ø 1.8 x 10.2 x 24.6 mm Metal spring characteristic download pdf file CAD data Compression spring VD-233B Stainless steel Ø 1.8 x 10.2 x 24.6 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-233B Stainless steel Ø 1.8 x 10.2 x 24.6 mm force-path-calculation Compression spring VD-233B Inquiry formular Compression spring VD-233B Stainless steel Ø 1.8 x 10.2 x 24.6 mm Inquiry formular Compression spring VD-233B Similar compression springs to Compression spring VD-233B Stainless steel Ø 1.8 x 10.2 x 24.6 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-233B 1.4310 1.8 12 24.6 151.601 14.97 9.63 5.5 15.737 100.0 | 100.0 | 100.0 | 100.0 D-233B EN 10270-1 1.8 12 24.6 176.507 14.97 9.63 5.5 18.323 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-152 11 26 1.591 1.4310 27.244 8.88 17.13 42.6 | 80.6 | 37.1 | 10.1 VD-150B 12.5 21 1.644 1.4310 23.762 6.54 14.46 43.5 | 79.0 | 41.1 | 10.4 VD-156 10.3 25 1.978 1.4310 32.114 8.76 16.24 44.2 | 79.9 | 40.2 | 12.6 VD-190C 13 27 2.394 1.4310 38.371 10.97 16.03 47.4 | 84.3 | 42.7 | 15.2 VD-179K 12 23 2.826 1.4310 44.657 7.2 15.8 49.3 | 84.9 | 45.2 | 18.0 VD-180N 13 22.8 3.155 1.4310 47.866 7.63 15.17 50.5 | 83.9 | 47.5 | 20.0 VD-207 13.4 23 3.891 1.4310 45.63 11.27 11.73 55.9 | 86.9 | 56.1 | 24.7 VD-207KB 12.5 26.2 6.051 1.4310 81.444 12.74 13.46 64.0 | 91.1 | 62.6 | 38.4 VD-207K-03 11.5 25 6.815 1.4310 72.408 14.38 10.63 68.3 | 92.5 | 69.2 | 43.3 VD-222A-14 12.7 26 7.624 1.4310 94.913 13.55 12.45 70.4 | 92.7 | 70.0 | 48.4 VD-227A-02 11.5 25 9.85 1.4310 105.282 14.31 10.69 78.9 | 94.4 | 79.8 | 62.6 VD-207KJ 10 24.5 10.304 1.4310 97.316 15.06 9.44 78.4 | 88.8 | 81.1 | 65.5 VD-224 11.6 27 10.426 1.4310 141.842 13.4 13.6 80.2 | 92.2 | 82.2 | 66.3 VD-227D 11 22.8 12.553 1.4310 118.805 13.34 9.46 86.4 | 91.1 | 88.3 | 79.8 VD-233B 12 24.6 15.737 1.4310 151.601 14.97 9.63 100.0 | 100.0 | 100.0 | 100.0 VD-234BA 11 24 18.148 1.4310 128.332 16.93 7.07 87.4 | 96.4 | 79.0 | 86.7 VD-257E-02 12.3 25 23.295 1.4310 197.127 16.54 8.46 81.8 | 95.3 | 82.4 | 67.6 VD-259 12 26.5 25.455 1.4310 254.227 16.51 9.99 78.1 | 94.3 | 78.0 | 61.9 VD-263Q-02 12.3 25 33.158 1.4310 187.761 19.34 5.66 69.9 | 92.6 | 69.8 | 47.5 VD-263V-02 12.3 25 49.255 1.4310 282.3 19.27 5.73 59.8 | 90.9 | 56.6 | 32.0 VD-288C 13 26.7 53.683 1.4310 333.435 20.49 6.21 56.6 | 85.5 | 55.0 | 29.3 VD-263S 11 23 54.688 1.4310 273.416 18 5 57.2 | 89.0 | 53.7 | 28.8 Number of similar metal springs: 21 Customs tariff number: 73202081; Compression spring VD-233B Country of origin: DE, German; Compression spring VD-233B Product image - Compression springs VD-233B QR-Code: Compression spring VD-233B
