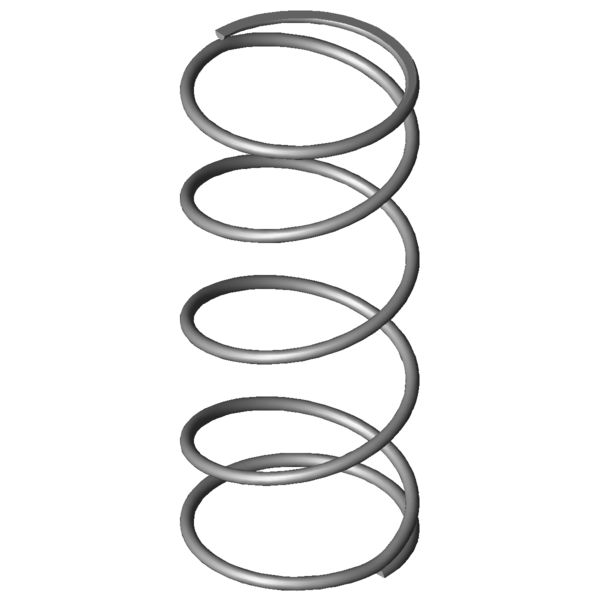

Home » Products » Compression springs » vd-234g Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-234G Stainless steel Ø 2 x 32 x 78.1 mm Scaled prices - Compression spring VD-234G Quantity Single price [EUR] 1 5.2700 EUR 2 3.7200 EUR 3 3.5400 EUR 7 2.5100 EUR 17 1.2200 EUR 37 0.9000 EUR 75 0.7300 EUR 125 0.5070 EUR 175 0.4444 EUR 250 0.4132 EUR 350 0.3853 EUR 450 0.3536 EUR Compression spring Buy Product image Compression spring VD-234G Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-234G Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2 mm Wire diameter Di mm Inner coil diameter D 32 mm Mean coil diameter De 34 mm Outer coil diameter Dd 29.1 mm maximum diameter of mandrel Dh 36.3 mm minimum diameter of bush L0 78.1 mm unstressed spring length Lk mm buckling length Fn 77.773 N maximum force in static use Ln 14.39 mm Minimum length in static use sn 63.71 mm Maximum spring deflection in static use Fndyn 75.696 N maximum force in dynamic use Lndyn 16.09 mm Minimum length in dynamic use shdyn 18.86 mm Maximum stroke in dynamic use S 21.743 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 1.221 N/mm Spring rate Weight 13.7307 g weight of one spring Fntol 6.55 N (+/-) tolerance of maximum force in static use Fndtol 6.52 N (+/-) tolerance of maximum dynamic force Detol 0.7 mm (+/-) tolerances of outer coil diameter L0tol 4.41 mm (+/-) tolerance of unstressed spring length Price group K - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-234G Stainless steel Ø 2 x 32 x 78.1 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-234G Stainless steel Ø 2 x 32 x 78.1 mm Metal spring characteristic download pdf file CAD data Compression spring VD-234G Stainless steel Ø 2 x 32 x 78.1 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-234G Stainless steel Ø 2 x 32 x 78.1 mm force-path-calculation Compression spring VD-234G Inquiry formular Compression spring VD-234G Stainless steel Ø 2 x 32 x 78.1 mm Inquiry formular Compression spring VD-234G Customs tariff number: 73202081; Compression spring VD-234G Country of origin: DE, German; Compression spring VD-234G Product image - Compression springs VD-234G QR-Code: Compression spring VD-234G
