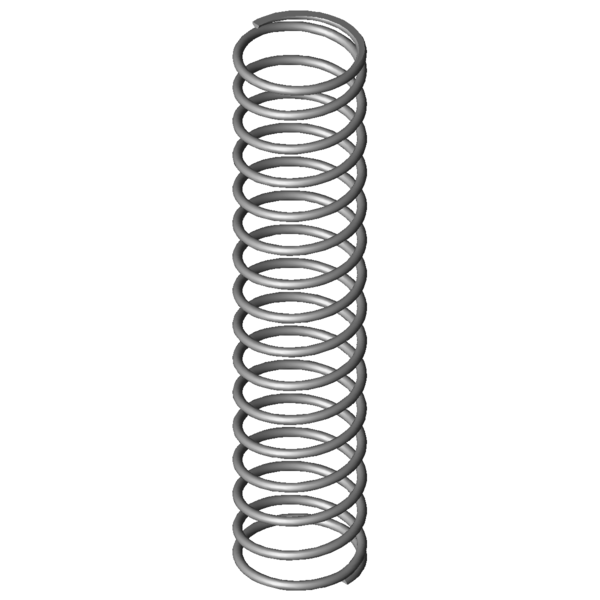

Home » Products » Compression springs » vd-236d Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-236D Stainless steel Ø 2 x 25 x 125 mm Scaled prices - Compression spring VD-236D Quantity Single price [EUR] 1 5.4200 EUR 2 3.8200 EUR 3 3.6400 EUR 7 2.6600 EUR 17 1.3800 EUR 37 1.0200 EUR 75 0.8900 EUR 125 0.5823 EUR 175 0.5445 EUR 250 0.4945 EUR 350 0.4610 EUR 450 0.4169 EUR Compression spring Buy Product image Compression spring VD-236D Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-236D Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2 mm Wire diameter Di mm Inner coil diameter D 25 mm Mean coil diameter De 27 mm Outer coil diameter Dd 22.3 mm maximum diameter of mandrel Dh 28.6 mm minimum diameter of bush L0 125 mm unstressed spring length Lk mm buckling length Fn 50.858 N maximum force in static use Ln 42.7 mm Minimum length in static use sn 82.3 mm Maximum spring deflection in static use Fndyn 47.859 N maximum force in dynamic use Lndyn 47.55 mm Minimum length in dynamic use shdyn 69 mm Maximum stroke in dynamic use S 8.483 mm pitch of spring n 14.5 pc. number of active coils nt pc. total number of coils R 0.618 N/mm Spring rate Weight 32.1813 g weight of one spring Fntol 5.01 N (+/-) tolerance of maximum force in static use Fndtol 4.96 N (+/-) tolerance of maximum dynamic force Detol 0.45 mm (+/-) tolerances of outer coil diameter L0tol 6.87 mm (+/-) tolerance of unstressed spring length Price group L - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-236D Stainless steel Ø 2 x 25 x 125 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-236D Stainless steel Ø 2 x 25 x 125 mm Metal spring characteristic download pdf file CAD data Compression spring VD-236D Stainless steel Ø 2 x 25 x 125 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-236D Stainless steel Ø 2 x 25 x 125 mm force-path-calculation Compression spring VD-236D Inquiry formular Compression spring VD-236D Stainless steel Ø 2 x 25 x 125 mm Inquiry formular Compression spring VD-236D Similar compression springs to Compression spring VD-236D Stainless steel Ø 2 x 25 x 125 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-236D 1.4310 2 27 125 50.858 42.7 82.3 14.5 0.618 100.0 | 100.0 | 100.0 | 100.0 D-236D EN 10270-1 2 27 125 59.213 42.7 82.3 14.5 0.719 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-207JN 26.5 105 0.334 1.4310 27.57 22.34 82.66 72.2 | 85.7 | 76.9 | 54.0 VD-207M-01 28 130 0.367 1.4310 38.97 23.71 106.29 75.7 | 90.9 | 77.0 | 59.3 VD-207M 28 106 0.567 1.4310 50.73 16.47 89.53 91.5 | 87.1 | 95.8 | 91.7 VD-236D 27 125 0.618 1.4310 50.858 42.7 82.3 100.0 | 100.0 | 100.0 | 100.0 VD-237A 27 135 0.717 1.4310 69.989 37.36 97.64 87.4 | 97.5 | 78.5 | 86.2 VD-234N 30 115 0.75 1.4310 65.503 27.7 87.3 87.4 | 94.0 | 86.0 | 82.4 VD-239A-05 25 139.5 0.921 1.4310 94.851 36.46 103.04 76.0 | 94.1 | 66.7 | 67.1 VD-237 27 135 1.054 1.4310 107.942 32.6 102.4 73.3 | 97.5 | 63.7 | 58.6 VD-288N-10 30 135 1.62 1.4310 116.688 62.96 72.04 62.8 | 84.7 | 65.6 | 38.2 VD-277A 22.5 120 2.309 1.4310 137.839 60.32 59.69 56.0 | 86.4 | 54.7 | 26.8 VD-271 27.5 115 2.574 1.4310 203.824 35.8 79.2 58.2 | 90.1 | 60.6 | 24.0 VD-288N 30 118 2.813 1.4310 223.302 38.63 79.37 55.6 | 85.3 | 59.6 | 22.0 VD-302A 28.2 135 3.174 1.4310 184.287 76.94 58.06 50.7 | 83.6 | 49.1 | 19.5 VD-277 22.5 120 3.418 1.4310 255.322 45.3 74.7 53.3 | 86.4 | 55.3 | 18.1 VD-288Z-34 28 142 3.629 1.4310 329.654 51.16 90.84 51.2 | 83.7 | 53.0 | 17.0 VD-288Z-44 27 117 4.102 1.4310 271.318 50.85 66.15 50.5 | 86.8 | 49.6 | 15.1 VD-301A 28.2 113 4.35 1.4310 239.774 57.88 55.12 47.1 | 82.9 | 44.1 | 14.2 VD-302 28.2 135 4.698 1.4310 380.215 54.06 80.94 50.9 | 83.6 | 55.9 | 13.2 VD-288Z-54 21 124 6.569 1.4310 354.421 70.05 53.95 43.5 | 81.2 | 40.0 | 9.4 Number of similar metal springs: 18 Customs tariff number: 73202081; Compression spring VD-236D Country of origin: DE, German; Compression spring VD-236D Product image - Compression springs VD-236D QR-Code: Compression spring VD-236D
