Compression spring VD-252A-05 Stainless steel Ø 2 x 12.8 x 44 mm

Name: VD-252A-05 - Compression springs
SKU: VD-252A-05
Availability: InStock

Scaled prices - Compression spring VD-252A-05

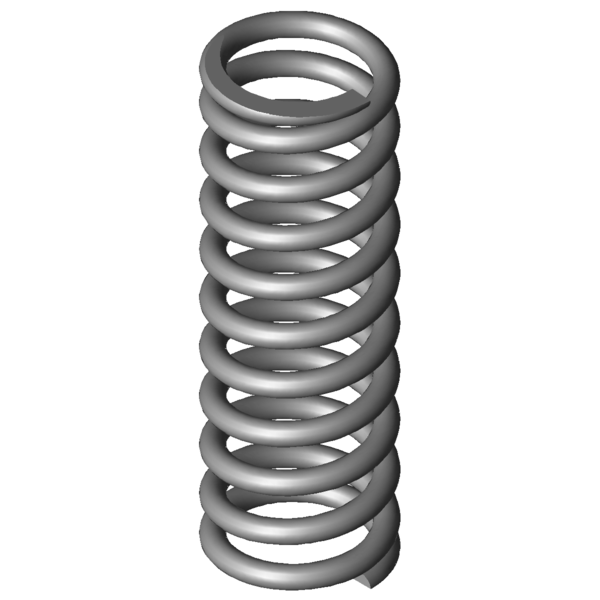

Product image Compression spring VD-252A-05

Quantity: Add to shopping cart

Formula symbols	Value	Unit	Description
Material	1.4310	-	Type of material
Spring ends	Closed and ground	-	Spring ends
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	Prestressed spring deflection
F2		N	Loaded spring force
L2		mm	Loaded spring length
s2		mm	Loaded spring deflection
d	2	mm	Wire diameter
Di		mm	Inner coil diameter
D	12.8	mm	Mean coil diameter
De	14.8	mm	Outer coil diameter
Dd	10.3	mm	maximum diameter of mandrel
Dh	15.5	mm	minimum diameter of bush
L0	44	mm	unstressed spring length
Lk		mm	buckling length
Fn	141.63	N	maximum force in static use
Ln	24.91	mm	Minimum length in static use
sn	19.09	mm	Maximum spring deflection in static use
Fndyn	130.844	N	maximum force in dynamic use
Lndyn	26.36	mm	Minimum length in dynamic use
shdyn	9.13	mm	Maximum stroke in dynamic use
S	4.667	mm	pitch of spring
n	9	pc.	number of active coils
nt		pc.	total number of coils
R	7.417	N/mm	Spring rate
Weight	10.9846	g	weight of one spring
Fntol	11.75	N	(+/-) tolerance of maximum force in static use
Fndtol	11.58	N	(+/-) tolerance of maximum dynamic force
Detol	0.3	mm	(+/-) tolerances of outer coil diameter
L0tol	1.28	mm	(+/-) tolerance of unstressed spring length
Price group	L	-	price group
F1tol		N	(+/-) tolerance of prestressed spring force
F2tol		N	(+/-) tolerance of loaded spring force
