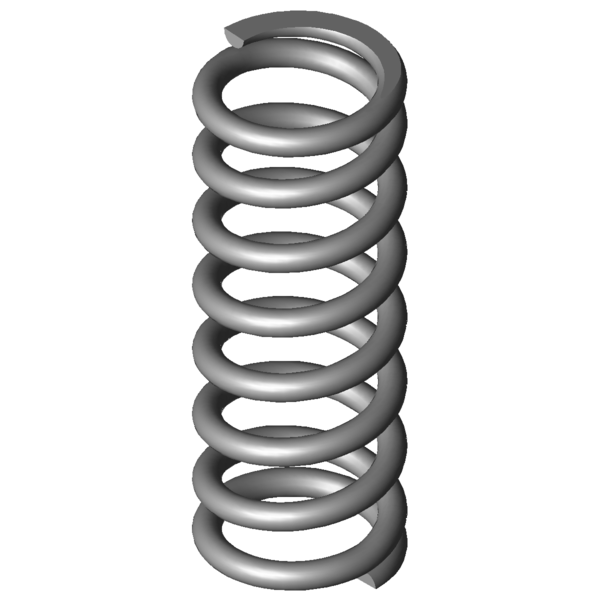

Home » Products » Compression springs » vd-254a Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-254A Stainless steel Ø 2 x 12.5 x 39 mm Scaled prices - Compression spring VD-254A Quantity Single price [EUR] 1 5.4200 EUR 2 3.8200 EUR 3 3.6400 EUR 7 2.6600 EUR 17 1.3800 EUR 37 1.0200 EUR 75 0.8900 EUR 125 0.5823 EUR 175 0.5445 EUR 250 0.4945 EUR 350 0.4610 EUR 450 0.4169 EUR Compression spring Buy Product image Compression spring VD-254A Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-254A Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2 mm Wire diameter Di mm Inner coil diameter D 12.5 mm Mean coil diameter De 14.5 mm Outer coil diameter Dd 10 mm maximum diameter of mandrel Dh 15.2 mm minimum diameter of bush L0 39 mm unstressed spring length Lk mm buckling length Fn 215.591 N maximum force in static use Ln 19.45 mm Minimum length in static use sn 19.55 mm Maximum spring deflection in static use Fndyn 173.686 N maximum force in dynamic use Lndyn 23.25 mm Minimum length in dynamic use shdyn 4.08 mm Maximum stroke in dynamic use S 5.692 mm pitch of spring n 6.5 pc. number of active coils nt pc. total number of coils R 11.028 N/mm Spring rate Weight 8.2891 g weight of one spring Fntol 13.91 N (+/-) tolerance of maximum force in static use Fndtol 13.7 N (+/-) tolerance of maximum dynamic force Detol 0.3 mm (+/-) tolerances of outer coil diameter L0tol 0.96 mm (+/-) tolerance of unstressed spring length Price group L - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-254A Stainless steel Ø 2 x 12.5 x 39 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-254A Stainless steel Ø 2 x 12.5 x 39 mm Metal spring characteristic download pdf file CAD data Compression spring VD-254A Stainless steel Ø 2 x 12.5 x 39 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-254A Stainless steel Ø 2 x 12.5 x 39 mm force-path-calculation Compression spring VD-254A Inquiry formular Compression spring VD-254A Stainless steel Ø 2 x 12.5 x 39 mm Inquiry formular Compression spring VD-254A Customs tariff number: 73202081; Compression spring VD-254A Country of origin: DE, German; Compression spring VD-254A Product image - Compression springs VD-254A QR-Code: Compression spring VD-254A
