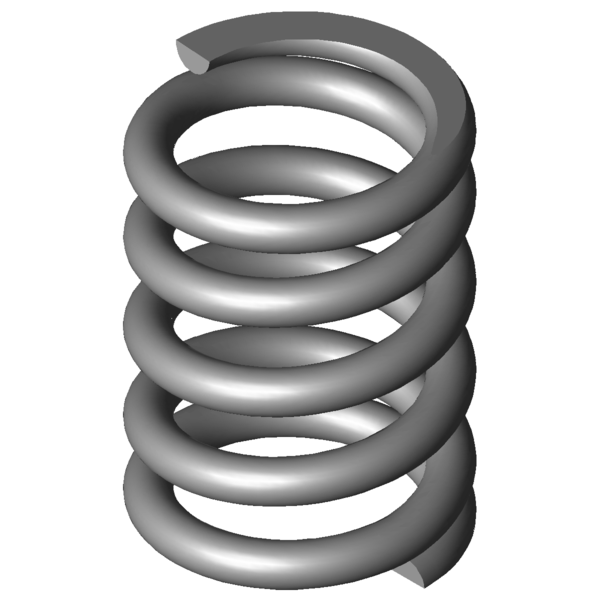

Home » Products » Compression springs » vd-257b Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-257B Stainless steel Ø 2 x 12 x 19.6 mm Scaled prices - Compression spring VD-257B Quantity Single price [EUR] 1 5.1600 EUR 2 3.6400 EUR 3 3.4700 EUR 7 2.4200 EUR 17 1.1500 EUR 37 0.8500 EUR 75 0.6800 EUR 125 0.4859 EUR 175 0.4196 EUR 250 0.3695 EUR 350 0.3536 EUR 450 0.3284 EUR Compression spring Buy Product image Compression spring VD-257B Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-257B Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2 mm Wire diameter Di mm Inner coil diameter D 12 mm Mean coil diameter De 14 mm Outer coil diameter Dd 9.5 mm maximum diameter of mandrel Dh 14.7 mm minimum diameter of bush L0 19.6 mm unstressed spring length Lk mm buckling length Fn 174.12 N maximum force in static use Ln 12.08 mm Minimum length in static use sn 7.52 mm Maximum spring deflection in static use Fndyn 161.574 N maximum force in dynamic use Lndyn 12.62 mm Minimum length in dynamic use shdyn 2.67 mm Maximum stroke in dynamic use S 5.029 mm pitch of spring n 3.5 pc. number of active coils nt pc. total number of coils R 23.148 N/mm Spring rate Weight 5.149 g weight of one spring Fntol 16.24 N (+/-) tolerance of maximum force in static use Fndtol 16.05 N (+/-) tolerance of maximum dynamic force Detol 0.3 mm (+/-) tolerances of outer coil diameter L0tol 0.59 mm (+/-) tolerance of unstressed spring length Price group J - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-257B Stainless steel Ø 2 x 12 x 19.6 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-257B Stainless steel Ø 2 x 12 x 19.6 mm Metal spring characteristic download pdf file CAD data Compression spring VD-257B Stainless steel Ø 2 x 12 x 19.6 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-257B Stainless steel Ø 2 x 12 x 19.6 mm force-path-calculation Compression spring VD-257B Inquiry formular Compression spring VD-257B Stainless steel Ø 2 x 12 x 19.6 mm Inquiry formular Compression spring VD-257B Similar compression springs to Compression spring VD-257B Stainless steel Ø 2 x 12 x 19.6 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-257B 1.4310 2 14 19.6 174.12 12.08 7.52 3.5 23.148 100.0 | 100.0 | 100.0 | 100.0 D-257B EN 10270-1 2 14 19.6 202.726 12.08 7.52 3.5 26.951 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-207 13.4 23 3.891 1.4310 45.63 11.27 11.73 48.5 | 83.6 | 45.2 | 16.8 VD-185K 13.75 16 4.861 1.4310 48.125 6.1 9.9 51.2 | 80.8 | 51.8 | 21.0 VD-195A-15 11 20 5.122 1.4310 55.315 9.2 10.8 50.8 | 79.7 | 50.7 | 22.1 VD-180Q-01 11 19.2 5.508 1.4310 64.772 7.44 11.76 51.1 | 78.8 | 50.6 | 23.8 VD-191 11.25 20 6.104 1.4310 71.411 8.3 11.7 53.1 | 80.3 | 52.6 | 26.4 VD-207J-30 14 20.5 6.48 1.4310 72.434 9.32 11.18 57.5 | 90.2 | 54.4 | 28.0 VD-217G 14.1 17 8.389 1.4310 59.788 9.87 7.13 63.2 | 88.7 | 64.6 | 36.2 VD-218 14.1 24 8.389 1.4310 113.666 10.45 13.55 61.2 | 87.0 | 60.4 | 36.2 VD-207KA 12.5 17.8 9.509 1.4310 81.79 9.2 8.6 64.4 | 85.0 | 67.2 | 41.1 VD-207K-12 11.5 19.5 9.844 1.4310 84.656 10.9 8.6 65.4 | 85.5 | 68.0 | 42.5 VD-222A-12 12.7 17 11.98 1.4310 86.255 9.8 7.2 70.1 | 85.8 | 72.6 | 51.7 VD-233T-14 13 19 14.529 1.4310 87.173 13 6 73.6 | 93.3 | 64.9 | 62.7 VD-223 11.6 18.5 16.384 1.4310 141.722 9.85 8.65 80.2 | 85.7 | 84.2 | 70.8 VD-253 14.5 22.5 20.48 1.4310 212.784 12.11 10.39 86.7 | 94.6 | 77.1 | 88.4 VD-257B 14 19.6 23.148 1.4310 174.12 12.08 7.52 100.0 | 100.0 | 100.0 | 100.0 VD-252A-32 15 17 23.172 1.4310 152.936 10.4 6.6 93.7 | 93.4 | 87.8 | 99.9 VD-263N 15 20.8 27.925 1.4310 210.531 13.26 7.54 89.0 | 92.8 | 91.2 | 82.9 VD-262A-10 11 20 38.409 1.4310 180.377 15.3 4.7 77.3 | 92.2 | 79.5 | 60.3 VD-258 12 18 40 1.4310 241.5 11.96 6.04 75.5 | 92.5 | 76.2 | 57.9 VD-283B 15 19 50 1.4310 202.344 14.95 4.05 68.8 | 90.1 | 70.0 | 46.3 VD-284 15 22 50 1.4310 352.344 14.95 7.05 68.5 | 87.5 | 71.6 | 46.3 VD-283A-12 15.5 17 62.23 1.4310 303.059 12.13 4.87 61.3 | 85.7 | 61.1 | 37.2 VD-288B 13 18.8 84.359 1.4310 332.668 14.86 3.94 56.5 | 89.6 | 52.4 | 27.4 VD-288U 14 20.5 109.375 1.4310 424.9 16.62 3.88 52.1 | 89.0 | 46.3 | 21.1 Number of similar metal springs: 23 Customs tariff number: 73202081; Compression spring VD-257B Country of origin: DE, German; Compression spring VD-257B Product image - Compression springs VD-257B QR-Code: Compression spring VD-257B
