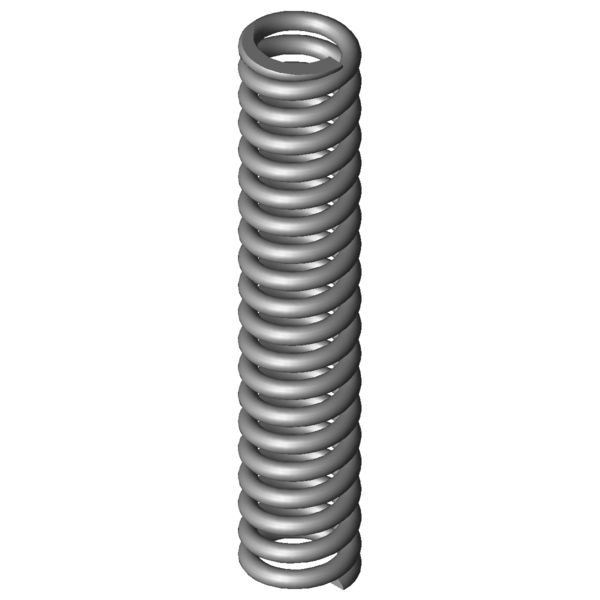

Home » Products » Compression springs » vd-257e-07 Url teilen URL was copied to clipboard, successfully ! Overview Back to overview The Item has been added to your shopping cart. Compression spring VD-257E-07 Stainless steel Ø 2 x 10.3 x 64 mm Scaled prices - Compression spring VD-257E-07 Quantity Single price [EUR] 1 5.4200 EUR 2 3.8200 EUR 3 3.6400 EUR 7 2.6600 EUR 17 1.3800 EUR 37 1.0200 EUR 75 0.8900 EUR 125 0.5823 EUR 175 0.5445 EUR 250 0.4945 EUR 350 0.4610 EUR 450 0.4169 EUR Compression spring Buy Product image Compression spring VD-257E-07 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-257E-07 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 - N prestressed spring force L1 - mm Prestressed spring length s1 - mm Prestressed spring deflection F2 - N Loaded spring force L2 - mm Loaded spring length s2 - mm Loaded spring deflection d 2 mm Wire diameter Di - mm Inner coil diameter D 10.3 mm Mean coil diameter De 12.3 mm Outer coil diameter Dd 7.8 mm maximum diameter of mandrel Dh 12.9 mm minimum diameter of bush L0 64 mm unstressed spring length Lk 39.58 mm buckling length Fn 135.008 N maximum force in static use Ln 45.03 mm Minimum length in static use sn 18.97 mm Maximum spring deflection in static use Fndyn 117.087 N maximum force in dynamic use Lndyn 47.55 mm Minimum length in dynamic use shdyn 11.66 mm Maximum stroke in dynamic use S 3.444 mm pitch of spring n 18 pc. number of active coils nt - pc. total number of coils R 7.118 N/mm Spring rate Weight 16.0712 g weight of one spring Fntol 15.66 N (+/-) tolerance of maximum force in static use Fndtol 15.39 N (+/-) tolerance of maximum dynamic force Detol 0.3 mm (+/-) tolerances of outer coil diameter L0tol 1.9 mm (+/-) tolerance of unstressed spring length Price group L - price group F1tol - N (+/-) tolerance of prestressed spring force F2tol - N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-257E-07 Stainless steel Ø 2 x 10.3 x 64 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-257E-07 Stainless steel Ø 2 x 10.3 x 64 mm Metal spring characteristic download pdf file CAD data Compression spring VD-257E-07 Stainless steel Ø 2 x 10.3 x 64 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-257E-07 Stainless steel Ø 2 x 10.3 x 64 mm force-path-calculation Compression spring VD-257E-07 Inquiry formular Compression spring VD-257E-07 Stainless steel Ø 2 x 10.3 x 64 mm Inquiry formular Compression spring VD-257E-07 Customs tariff number: 73202081; Compression spring VD-257E-07 Country of origin: DE, German; Compression spring VD-257E-07 Product image - Compression springs VD-257E-07 QR-Code: Compression spring VD-257E-07
