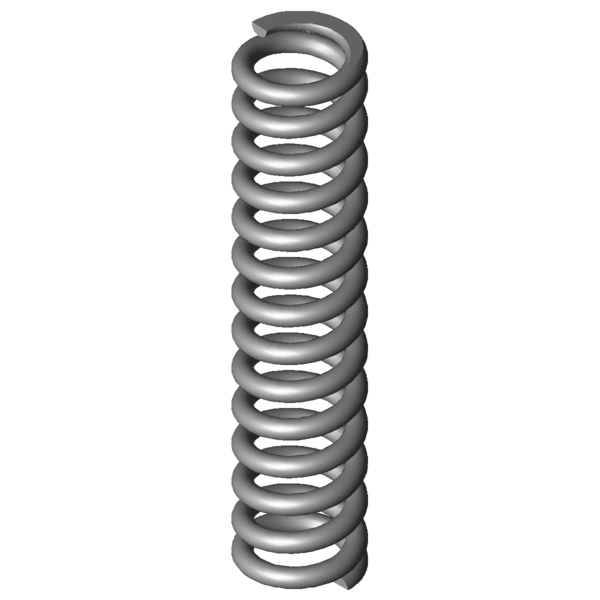

Home » Products » Compression springs » vd-261 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-261 Stainless steel Ø 2 x 10 x 55 mm Scaled prices - Compression spring VD-261 Quantity Single price [EUR] 1 5.2700 EUR 2 3.7200 EUR 3 3.5400 EUR 7 2.5100 EUR 17 1.2200 EUR 37 0.9000 EUR 75 0.7300 EUR 125 0.5070 EUR 175 0.4444 EUR 250 0.4132 EUR 350 0.3853 EUR 450 0.3536 EUR Compression spring Buy Product image Compression spring VD-261 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-261 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2 mm Wire diameter Di mm Inner coil diameter D 10 mm Mean coil diameter De 12 mm Outer coil diameter Dd 7.5 mm maximum diameter of mandrel Dh 12.6 mm minimum diameter of bush L0 55 mm unstressed spring length Lk 22.8 mm buckling length Fn 252.7 N maximum force in static use Ln 32.44 mm Minimum length in static use sn 22.56 mm Maximum spring deflection in static use Fndyn 206.08 N maximum force in dynamic use Lndyn 36.6 mm Minimum length in dynamic use shdyn 4.75 mm Maximum stroke in dynamic use S 4.24 mm pitch of spring n 12.5 pc. number of active coils nt pc. total number of coils R 11.2 N/mm Spring rate Weight 11.3122 g weight of one spring Fntol 18.82 N (+/-) tolerance of maximum force in static use Fndtol 18.05 N (+/-) tolerance of maximum dynamic force Detol 0.25 mm (+/-) tolerances of outer coil diameter L0tol 1.34 mm (+/-) tolerance of unstressed spring length Price group K - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-261 Stainless steel Ø 2 x 10 x 55 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-261 Stainless steel Ø 2 x 10 x 55 mm Metal spring characteristic download pdf file CAD data Compression spring VD-261 Stainless steel Ø 2 x 10 x 55 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-261 Stainless steel Ø 2 x 10 x 55 mm force-path-calculation Compression spring VD-261 Inquiry formular Compression spring VD-261 Stainless steel Ø 2 x 10 x 55 mm Inquiry formular Compression spring VD-261 Similar compression springs to Compression spring VD-261 Stainless steel Ø 2 x 10 x 55 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-261 1.4310 2 12 55 252.7 32.44 22.56 12.5 11.2 100.0 | 100.0 | 100.0 | 100.0 D-261 EN 10270-1 2 12 55 294.215 32.44 22.56 12.5 13.04 92.9 | 100.0 | 92.9 | 85.9 D-261A EN 10270-1 2 12 55 78.526 46.09 8.91 18.5 8.811 71.3 | 100.0 | 35.3 | 78.7 Number of similar metal springs: 3 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-207AD 11 54 2.62 1.4310 71.894 26.56 27.44 55.1 | 86.6 | 55.3 | 23.4 VD-207KD 12.5 55.8 2.662 1.4310 81.638 25.14 30.66 55.5 | 89.9 | 52.9 | 23.8 VD-207K-02 12 55 3.061 1.4310 91.827 25 30 58.3 | 91.7 | 55.8 | 27.3 VD-207K-05 11.5 51 3.281 1.4310 79.98 26.63 24.38 59.7 | 87.9 | 62.1 | 29.3 VD-222D 12.7 54 3.354 1.4310 91.762 26.64 27.36 60.1 | 90.9 | 59.4 | 29.9 VD-207K-08 11 55 3.563 1.4310 95.314 28.25 26.75 60.6 | 88.9 | 61.0 | 31.8 VD-227F 11 58.1 4.454 1.4310 117.307 31.76 26.34 64.9 | 88.8 | 66.0 | 39.8 VD-227A-06 11.5 51 4.546 1.4310 107.859 27.27 23.73 66.3 | 89.5 | 68.9 | 40.6 VD-225A 11.6 53 4.588 1.4310 122.157 26.37 26.63 66.2 | 91.0 | 66.5 | 41.0 VD-226 11.6 58.5 4.588 1.4310 141.525 27.65 30.85 65.2 | 90.2 | 64.6 | 41.0 VD-234B 12 62.7 5.584 1.4310 151.144 35.63 27.07 71.3 | 92.6 | 71.6 | 49.8 VD-261A 12 55 7.568 1.4310 67.446 46.09 8.91 66.9 | 100.0 | 33.1 | 67.6 VD-234BD 11 55 7.61 1.4310 149.29 35.38 19.62 78.3 | 93.9 | 73.0 | 67.9 VD-257E-06 12.3 51 9.49 1.4310 153.989 34.77 16.23 82.6 | 96.8 | 66.4 | 84.7 VD-261 12 55 11.2 1.4310 252.7 32.44 22.56 100.0 | 100.0 | 100.0 | 100.0 VD-263Q-06 12.3 51 15.304 1.4310 217.858 36.76 14.24 80.5 | 93.7 | 74.7 | 73.2 VD-263U 11 56.8 19.405 1.4310 273.063 42.73 14.07 76.1 | 93.1 | 77.5 | 57.7 VD-263V-06 12.3 51 23.557 1.4310 373.1 35.16 15.84 69.4 | 91.8 | 69.0 | 47.6 Number of similar metal springs: 17 Customs tariff number: 73202081; Compression spring VD-261 Country of origin: DE, German; Compression spring VD-261 Product image - Compression springs VD-261 QR-Code: Compression spring VD-261
